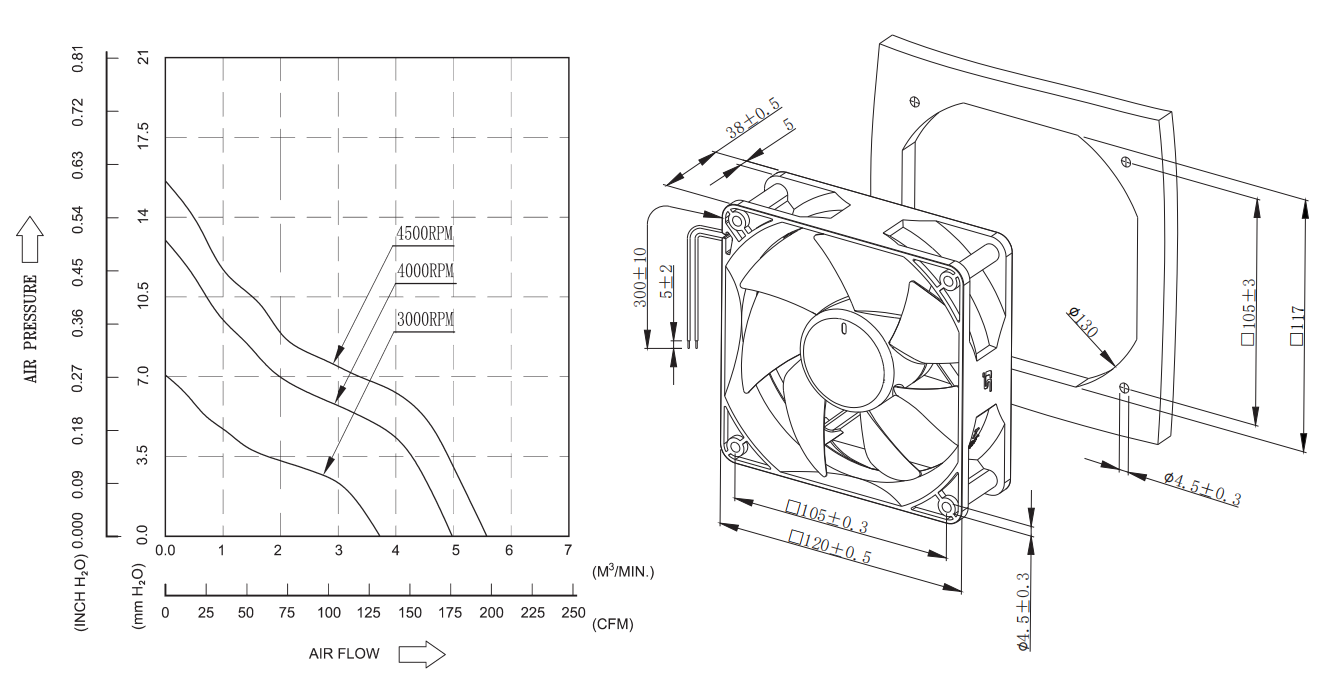

Overall Dimension: 120×120×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 250g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SI121238-M | B | 3000 | 12 | 0.5 | 6 | 131.5 | 223.3 | 7 | 0.28 | 46 |
SI121238-H | B | 4000 | 12 | 1 | 12 | 176 | 298.8 | 13 | 0.51 | 52 |
SI121238-U | B | 4500 | 12 | 1.4 | 16.8 | 197.3 | 335 | 15.6 | 0.61 | 55 |
SI241238-M | B | 3000 | 24 | 0.25 | 6 | 131.5 | 223.3 | 7 | 0.28 | 46 |
SI241238-H | B | 4000 | 24 | 0.5 | 12 | 176 | 298.8 | 13 | 0.51 | 52 |
SI241238-U | B | 4500 | 24 | 0.7 | 16.8 | 197.3 | 335 | 15.6 | 0.61 | 55 |
SI481238-M | B | 3000 | 48 | 0.13 | 6.24 | 131.3 | 223 | 7 | 0.28 | 46 |
SI481238-H | B | 4000 | 48 | 0.25 | 12 | 176 | 298.8 | 13 | 0.51 | 52 |
SI481238-U | B | 4500 | 48 | 0.35 | 16.8 | 197.3 | 335 | 15.6 | 0.61 | 55 |
