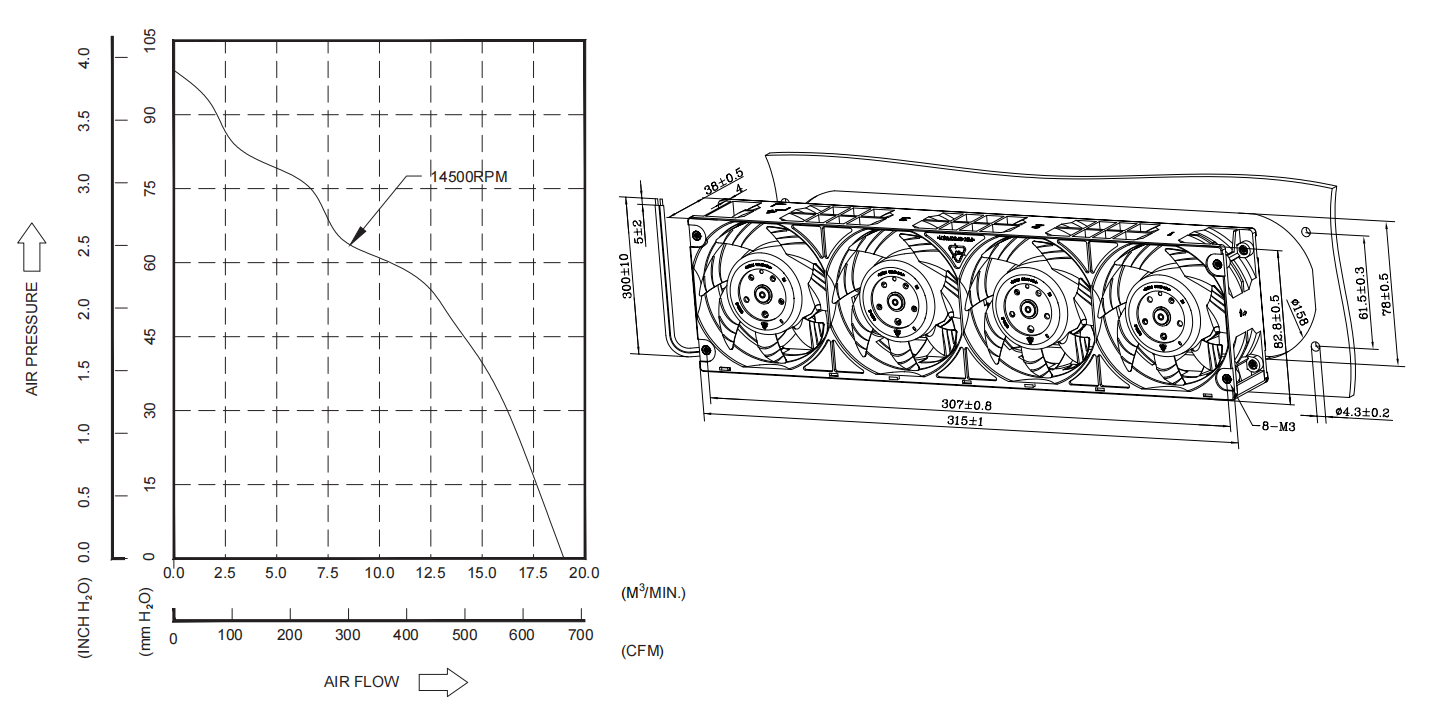

Overall Dimension: 315×82.8×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 3265 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 950g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SI480838-U | B | 14500 | 48 | 5 | 240 | 642.8 | 1092.3 | 100.5 | 3.96 | 78 |
