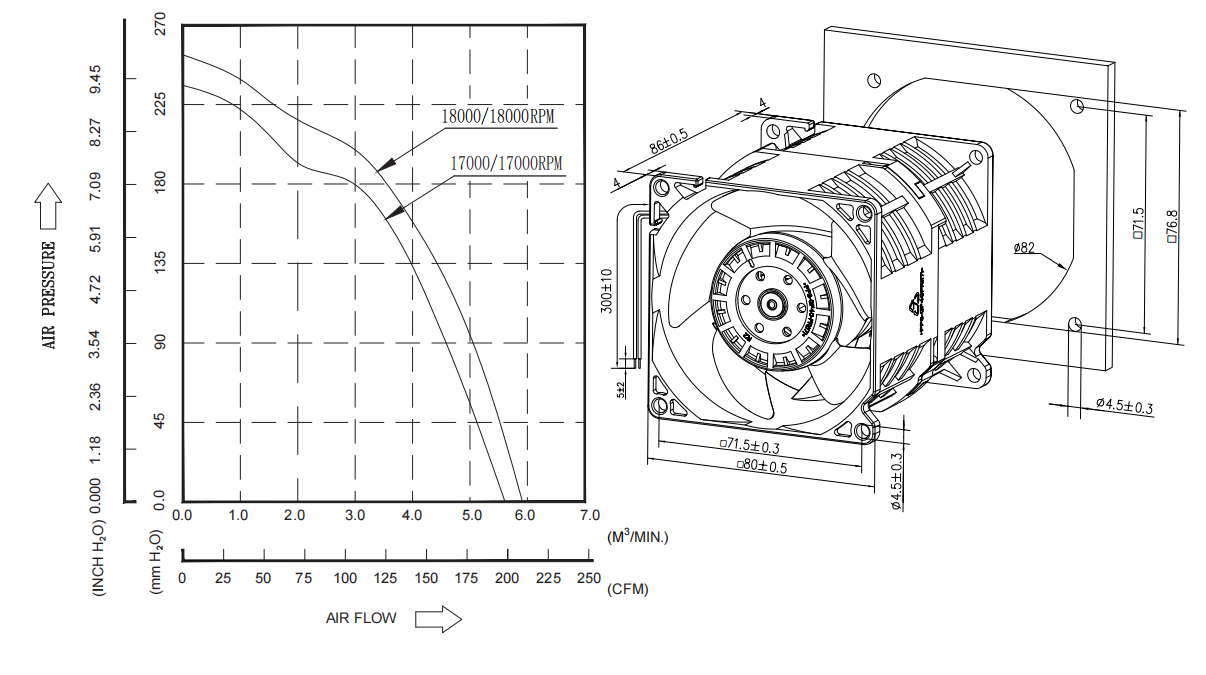

Overall Dimension: 80×80×86mm
Material: Impeller & Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 3265 AWG#22 or Equivalent
Impeller: 5 Blades Of Air Intake/4 Blades Of Air Outlet
Rotational Direction: Ccw View From Inlet Fan Blade
Mass: 488g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA120886-S | B | 17000/17000 | 12 | 12.4 | 148.8 | 198.4 | 336.9 | 235.5 | 9.27 | 87.1 |
SA480886-S | B | 18000/18000 | 48 | 3.15 | 151.2 | 209 | 354.8 | 252.7 | 9.95 | 89 |
