SA9232
Shengjiu Group

SA9232

Product description
  • Overall Dimension: 92×92×32mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 1007 AWG#24 or Equivalent

  • Impeller: 7 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 145g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SA240932-L

B

3000

24

0.1

2.4

58.4

99.2

5.58

0.22

36.5

SA240932-M

B

4000

24

0.18

4.32

79.2

134.6

9.42

0.37

47

SA240932-H

B

5500

24

0.35

8.4

109.2

185.6

16.5

0.65

54

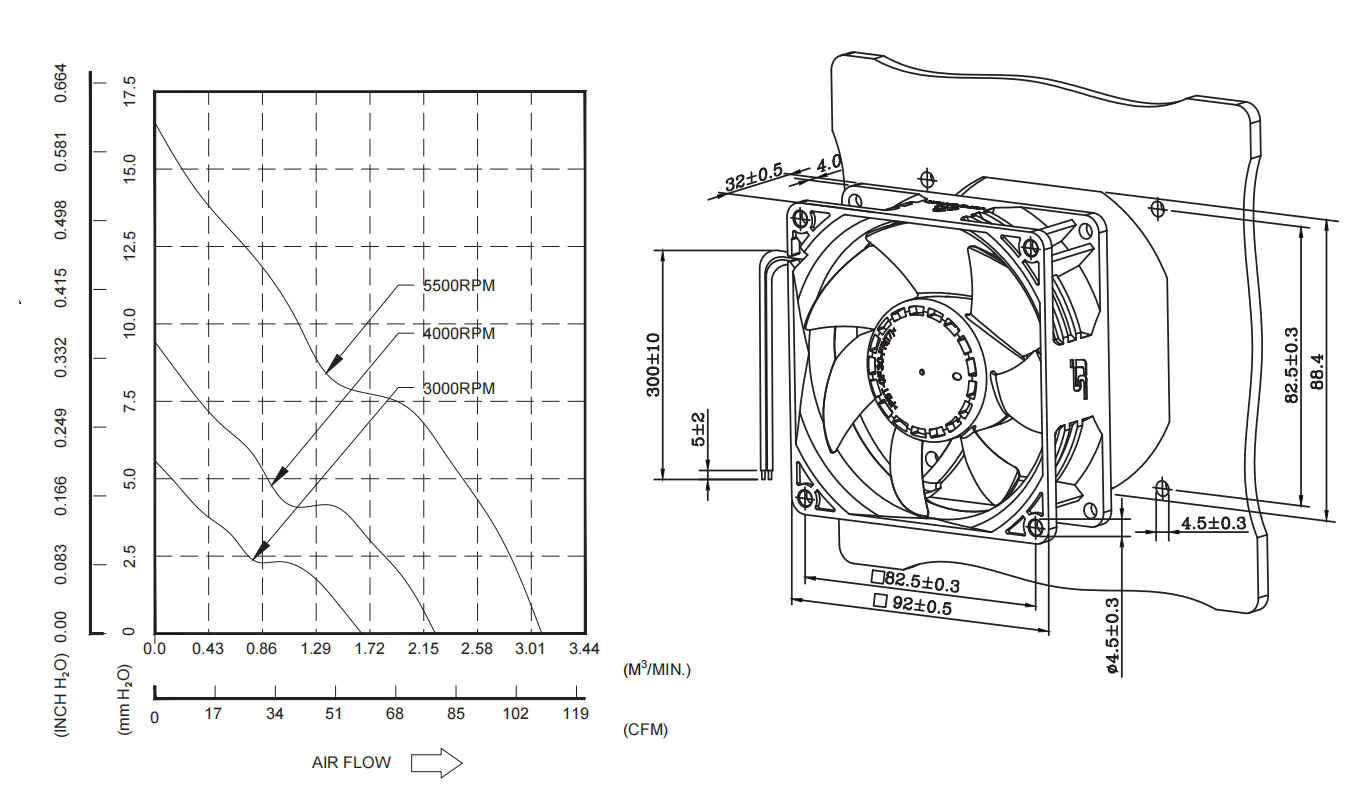

Drawing information
