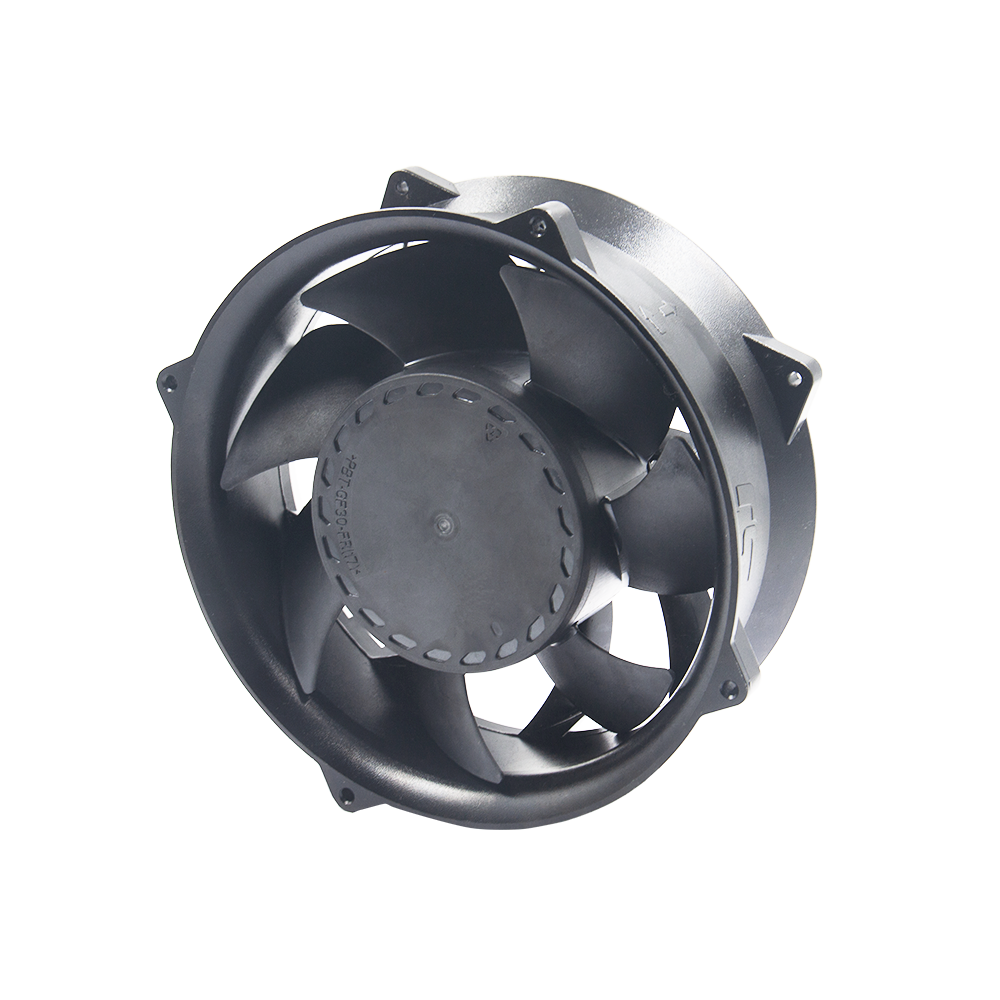

SA20070
Shengjiu Group

SA20070

Product description
  • Overall Dimension: 200×200×70mm

  • Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminium

  • Lead Wires: UL 1007 AWG#12 or Equivalent

  • Impeller: 7 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 2540g

  • IP-Rating: IP68

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SA482070-H

B

5000

48

3.5

168

722.6

1227

60.8

2.39

71.3

SA482070-U

B

6500

48

5.8

278.4

854

1450.1

84.9

3.34

74.9

SA482070-S

B

7500

48

9

432

985.4

1673.2

113.1

4.45

78

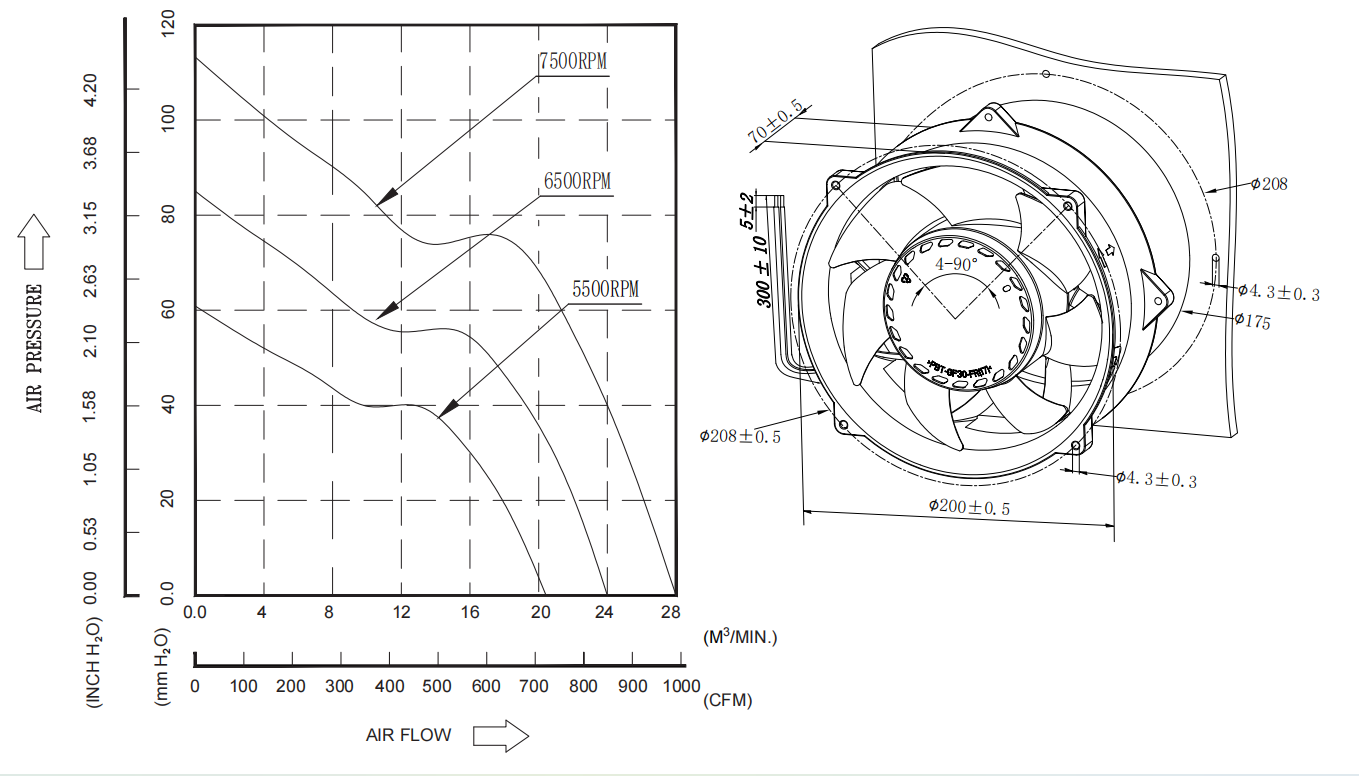

Drawing information
