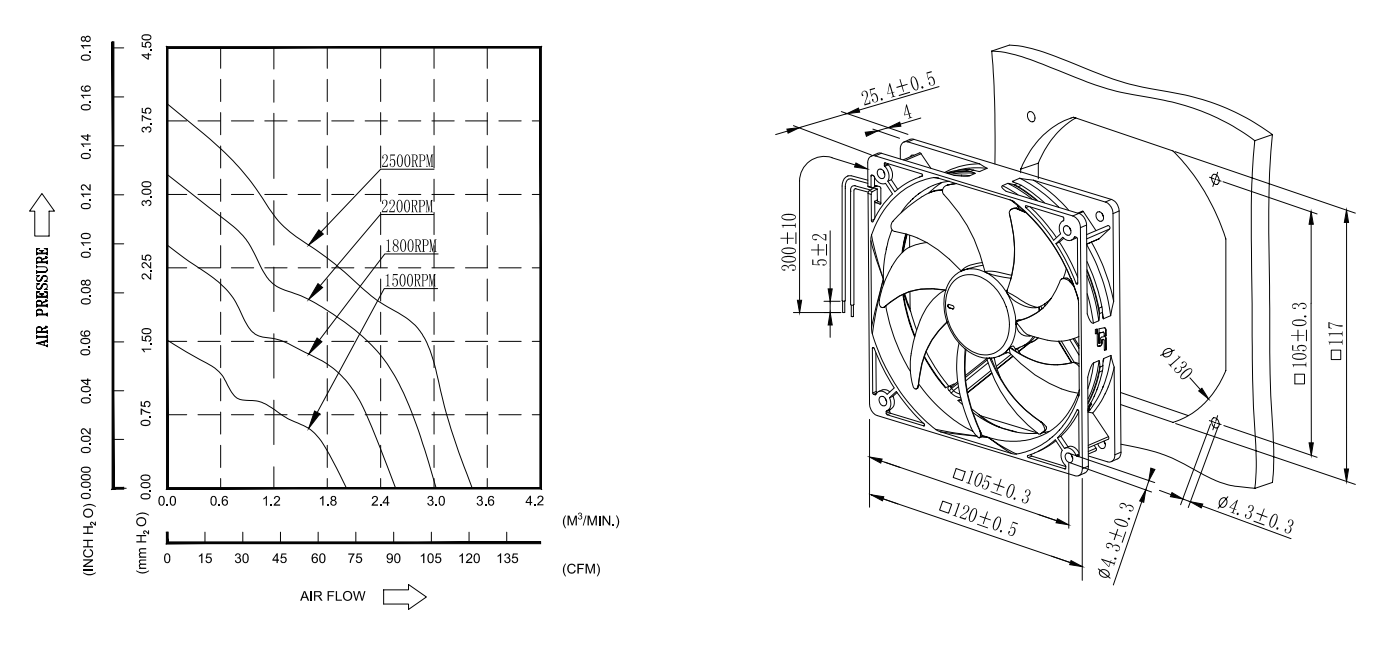

Overall Dimension: 120×120×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#24 or Equivalent
Impeller: 9 Blades
Rotational direction: CCW view from impeller side
Mass: 130g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SD121225-E | B | 1500 | 12 | 0.12 | 1.44 | 71.2 | 120.9 | 1.5 | 0.06 | 29.5 |
SD121225-L | B | 1800 | 12 | 0.21 | 2.52 | 90.1 | 153 | 2.4 | 0.09 | 33.5 |
SD121225-M | B | 2200 | 12 | 0.34 | 4.08 | 106.5 | 180.8 | 3.2 | 0.13 | 38.5 |
SD121225-H | B | 2500 | 12 | 0.49 | 5.88 | 121.3 | 206 | 3.9 | 0.15 | 41.5 |
SD241225-E | B | 1500 | 24 | 0.08 | 1.92 | 71.2 | 120.9 | 1.5 | 0.06 | 29.5 |
SD241225-L | B | 1800 | 24 | 0.11 | 2.64 | 90.1 | 153 | 2.4 | 0.09 | 33.5 |
SD241225-M | B | 2200 | 24 | 0.17 | 4.08 | 106.5 | 180.8 | 3.2 | 0.13 | 38.5 |
SD241225-H | B | 2500 | 24 | 0.28 | 6.72 | 121.3 | 206 | 3.9 | 0.15 | 41.5 |
SD481225-E | B | 1500 | 48 | 0.05 | 2.4 | 71.2 | 120.9 | 1.5 | 0.06 | 29.5 |
SD481225-L | B | 1800 | 48 | 0.08 | 3.84 | 90.1 | 153 | 2.4 | 0.09 | 33.5 |
SD481225-M | B | 2200 | 48 | 0.1 | 4.8 | 106.5 | 180.8 | 3.2 | 0.13 | 38.5 |
SD481225-H | B | 2500 | 48 | 0.18 | 8.64 | 121.3 | 206 | 3.9 | 0.15 | 41.5 |
