SG6025
Shengjiu Group

SG6025

Product description

Overall Dimension: 60×60×25mm

Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

Lead Wires: UL 1007 AWG#24 or Equivalent

Impeller: 7 Blades

Rotational direction: CCW view from impeller side

Mass: 60g

Working Temperature: 85℃

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SG120625-E

B

4000

12

0.11

1.32

20.7

35.1

4.48

0.18

25.6

SG120625-L

B

5000

12

0.17

2.04

25.9

44

6.18

0.24

33.9

SG120625-M

B

6000

12

0.25

3

31.3

53.2

9.7

0.38

39.6

SG120625-H

B

7000

12

0.36

4.32

36.9

62.6

13

0.51

44

SG240625-E

B

4000

24

0.07

1.68

20.7

35.1

4.48

0.18

25.6

SG240625-L

B

5000

24

0.09

2.16

25.9

44

6.18

0.24

33.9

SG240625-M

B

6000

24

0.12

2.88

31.3

53.2

9.7

0.38

39.6

SG240625-H

B

7000

24

0.17

4.08

36.9

62.6

13

0.51

44

SG240625-U

B

8000

24

0.19

4.56

41.8

71

16

0.63

46.8

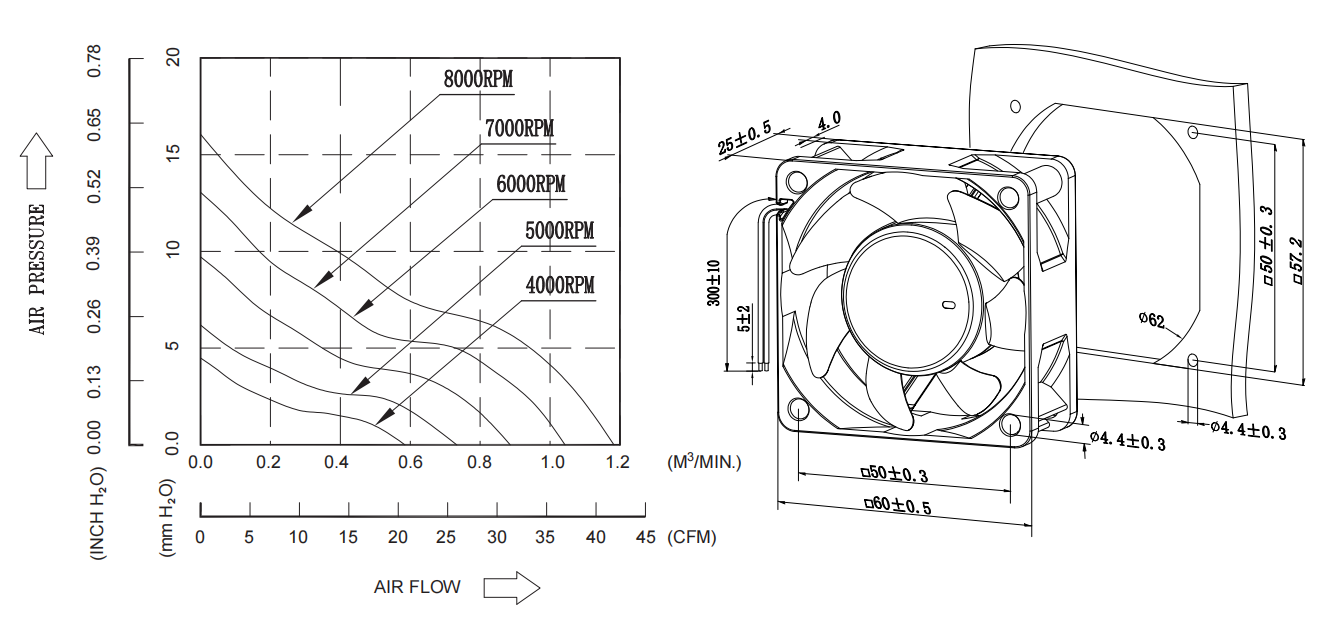

Drawing information
