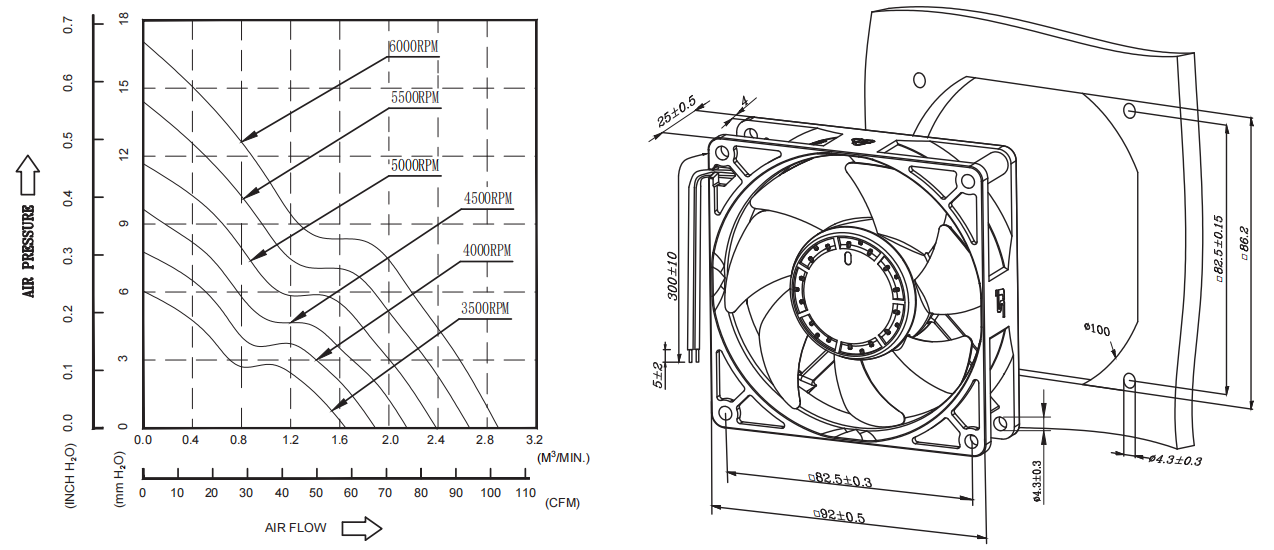

Overall Dimension: 92×92×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 10368 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 150g
IP-Rating: IP68
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SF120925-L | B | 3500 | 12 | 0.19 | 2.28 | 58.3 | 99 | 6.03 | 0.24 | 40.3 |
SF120925-M | B | 4000 | 12 | 0.28 | 3.36 | 66.7 | 113.2 | 7.75 | 0.31 | 43.7 |
SF120925-H | B | 4500 | 12 | 0.38 | 4.56 | 75.8 | 128.7 | 9.64 | 0.38 | 46.8 |
SF120925-U | B | 5000 | 12 | 0.57 | 6.84 | 84.6 | 143.7 | 11.7 | 0.46 | 49.5 |
SF120925-S | B | 5500 | 12 | 0.67 | 8.04 | 94.1 | 159.7 | 14.4 | 0.57 | 52 |
SF120925-F | B | 5600 | 12 | 0.7 | 8.4 | 95.5 | 162.2 | 14.8 | 0.58 | 52.5 |
SF240925-L | B | 3500 | 24 | 0.09 | 2.16 | 58.3 | 99 | 6.03 | 0.24 | 40.3 |
SF240925-M | B | 4000 | 24 | 0.14 | 3.36 | 66.7 | 113.2 | 7.75 | 0.31 | 43.7 |
SF240925-H | B | 4500 | 24 | 0.19 | 4.56 | 75.8 | 128.7 | 9.64 | 0.38 | 46.8 |
SF240925-U | B | 5000 | 24 | 0.28 | 6.72 | 84.6 | 143.7 | 11.7 | 0.46 | 49.5 |
SF240925-S | B | 5500 | 24 | 0.34 | 8.16 | 94.1 | 159.7 | 14.4 | 0.57 | 52 |
SF240925-F | B | 6000 | 24 | 0.4 | 9.6 | 102.3 | 173.8 | 17 | 0.67 | 54.3 |
