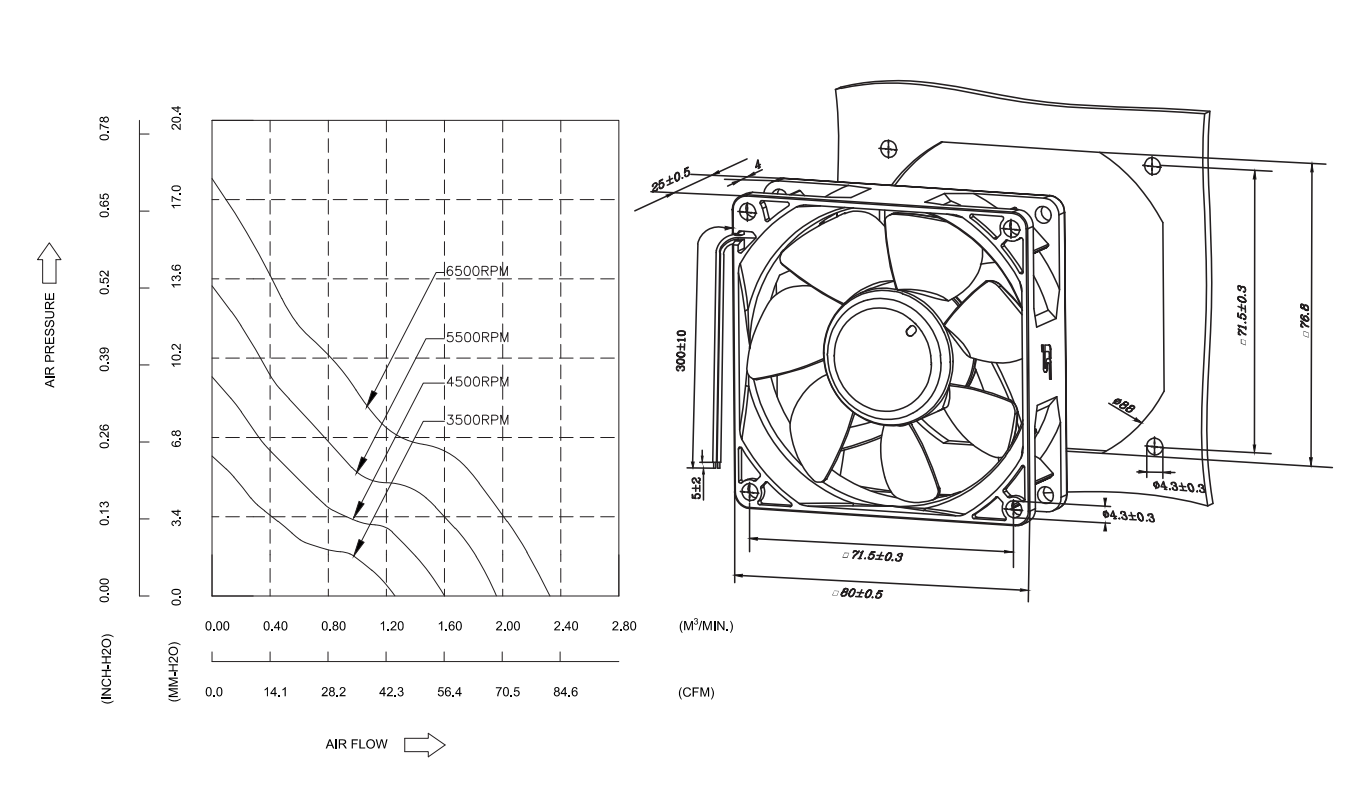

Overall Dimension: 80×80×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 80g
IP-Rating: IP68
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SC120825-L | B | 3500 | 12 | 0.18 | 2.16 | 44.4 | 75.4 | 6.04 | 0.24 | 38.1 |
SC120825-M | B | 4500 | 12 | 0.28 | 3.36 | 56.5 | 95.9 | 9.36 | 0.37 | 43 |
SC120825-H | B | 5500 | 12 | 0.45 | 5.4 | 69.1 | 117.4 | 13.3 | 0.52 | 47.9 |
SC120825-U | B | 6500 | 12 | 0.65 | 7.8 | 82.1 | 139.3 | 17.9 | 0.7 | 52.4 |
