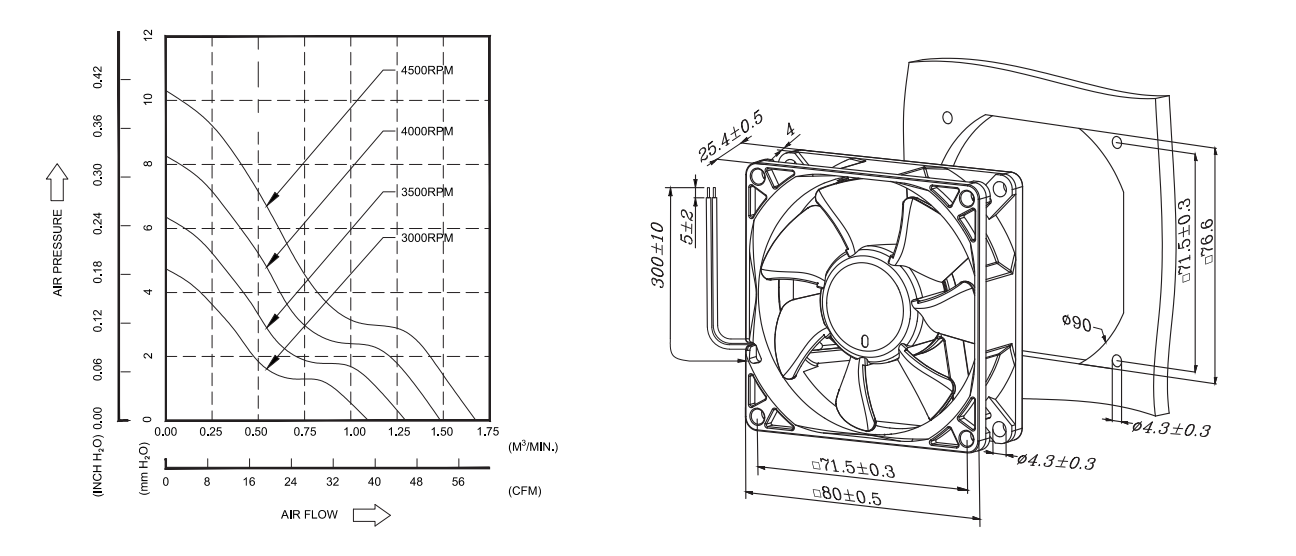

Overall Dimension: 80×80×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 90g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SB120825-L | B | 3000 | 12 | 0.1 | 1.2 | 38.7 | 65.7 | 4.74 | 0.19 | 36.2 |
SB120825-M | B | 3500 | 12 | 0.16 | 1.92 | 45.8 | 77.8 | 6.36 | 0.25 | 37.4 |
SB120825-H | B | 4000 | 12 | 0.24 | 2.88 | 52.5 | 89.1 | 8.27 | 0.33 | 41 |
SB120825-U | B | 4500 | 12 | 0.34 | 4.08 | 59.3 | 100.6 | 10.3 | 0.41 | 44.6 |
SB240825-L | B | 3000 | 24 | 0.05 | 1.2 | 38.7 | 65.7 | 4.74 | 0.19 | 36.2 |
SB240825-M | B | 3500 | 24 | 0.08 | 1.92 | 45.8 | 77.8 | 6.36 | 0.25 | 37.4 |
SB240825-H | B | 4000 | 24 | 0.12 | 2.88 | 52.5 | 89.1 | 8.27 | 0.33 | 41 |
SB240825-U | B | 4500 | 24 | 0.18 | 4.32 | 59.3 | 100.6 | 10.3 | 0.41 | 44.6 |
SB480825-L | B | 3000 | 48 | 0.03 | 1.44 | 38.7 | 65.7 | 4.74 | 0.19 | 36.2 |
SB480825-M | B | 3500 | 48 | 0.05 | 2.4 | 45.8 | 77.8 | 6.36 | 0.25 | 37.4 |
SB480825-H | B | 4000 | 48 | 0.07 | 3.36 | 52.5 | 89.1 | 8.27 | 0.33 | 41 |
SB480825-U | B | 4500 | 48 | 0.1 | 4.8 | 59.3 | 100.6 | 10.3 | 0.41 | 44.6 |
