SH12038
Shengjiu Group

SH12038

Product description
  • Overall Dimension: 120×120×38mm

  • Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminium

  • Lead Wires: UL 1007 AWG#20 or Equivalent

  • Impeller: 7 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 500g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SH241238-U

B

6000

24

1.2

28.8

215.7

366.2

36.2

1.42

63.8

SH241238-S

B

8000

24

2.5

60

287.6

488.3

64.2

2.53

70.1

SH241238-F

B

10000

24

4.6

110.4

359.5

610.3

100.4

3.95

74.9

SH481238-U

B

6500

48

0.64

30.7

233.7

396.8

42.4

1.67

65.6

SH481238-S

B

8500

48

1.45

69.6

305.6

518.8

72.6

2.86

71.4

SH481238-F

B

10500

48

2.7

129.6

377.5

640.9

110.7

4.36

76

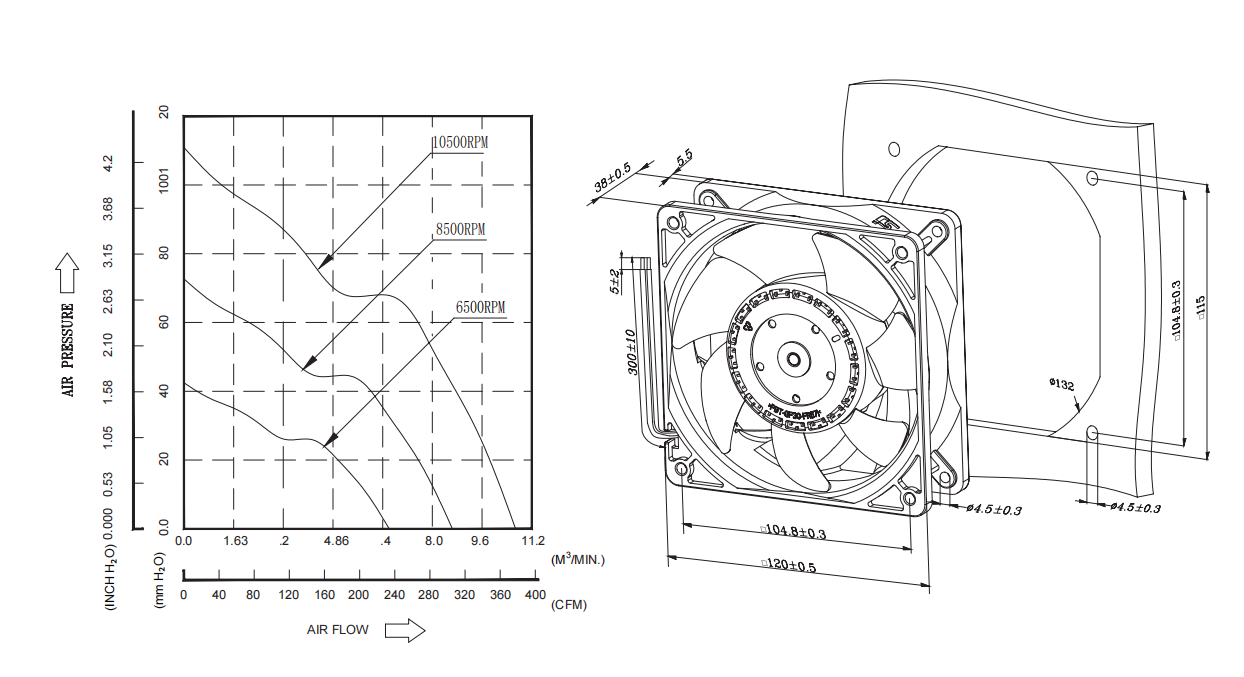

Drawing information
