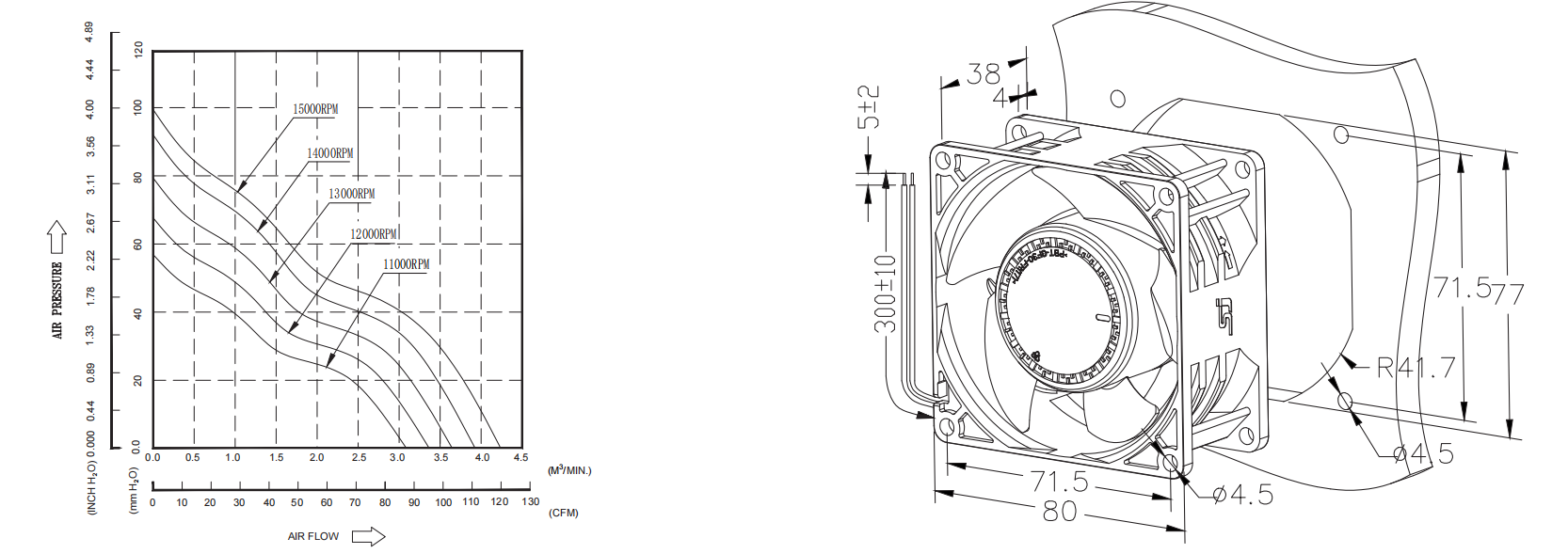

Overall Dimension: 80×80×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 215g
IP-Rating: IP68
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SD120838-L | B | 11000 | 12 | 1.14 | 13.6 | 91.2 | 154.9 | 56.9 | 2.24 | 60.3 |
SD120838-M | B | 12000 | 12 | 1.4 | 16.8 | 99.5 | 169 | 67.8 | 2.67 | 61.8 |
SD120838-H | B | 13000 | 12 | 1.72 | 20.6 | 107.8 | 183.1 | 79.5 | 3.13 | 63.3 |
SD120838-U | B | 14000 | 12 | 2.11 | 25.4 | 116.1 | 197.1 | 92.2 | 3.63 | 66.1 |
SD120838-S | B | 15000 | 12 | 2.6 | 31.2 | 125.2 | 212.6 | 99.7 | 3.92 | 68 |
SD120838-F | B | 16000 | 12 | 3.1 | 37.2 | 133.5 | 226.9 | 109.9 | 4.33 | 70 |
SD240838-L | B | 11000 | 24 | 0.57 | 13.6 | 91.2 | 154.9 | 56.9 | 2.24 | 60.3 |
SD240838-M | B | 12000 | 24 | 0.7 | 16.8 | 99.5 | 169 | 67.7 | 2.67 | 61.8 |
SD240838-H | B | 13000 | 24 | 0.86 | 20.6 | 107.8 | 183.1 | 79.5 | 3.13 | 63.3 |
SD240838-U | B | 14000 | 24 | 1.06 | 25.4 | 116.1 | 197.1 | 92.2 | 3.63 | 66.1 |
SD240838-S | B | 15000 | 24 | 1.3 | 31.2 | 125.2 | 212.6 | 99.7 | 3.92 | 68 |
SD240838-F | B | 16000 | 24 | 1.55 | 37.2 | 133.6 | 226.9 | 109.9 | 4.33 | 70 |
SD480838-L | B | 11000 | 48 | 0.28 | 13.6 | 91.2 | 154.9 | 56.9 | 2.24 | 60.3 |
SD480838-M | B | 12000 | 48 | 0.35 | 16.8 | 99.5 | 169 | 67.7 | 2.67 | 61.8 |
SD480838-H | B | 13000 | 48 | 0.43 | 20.6 | 107.8 | 183.1 | 79.5 | 3.13 | 63.3 |
SD480838-U | B | 14000 | 48 | 0.53 | 25.4 | 116.1 | 197.1 | 92.2 | 3.63 | 66.1 |
