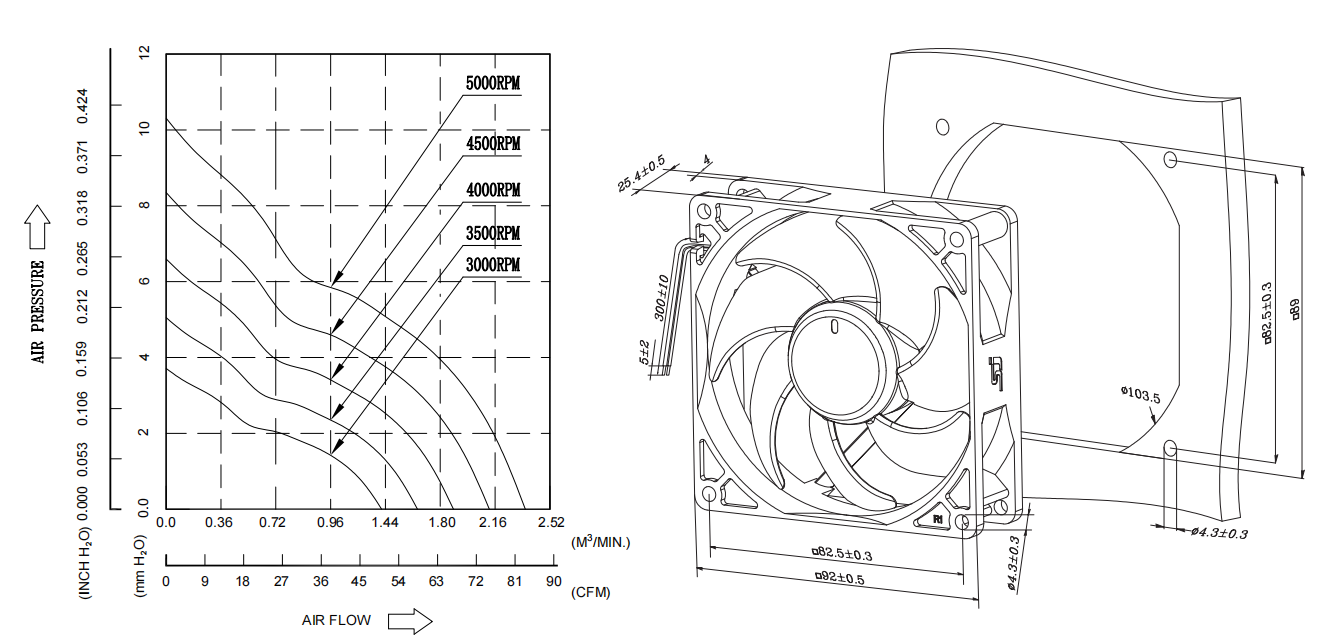

Overall Dimension: 92×92×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 100g
Working Temperature: 85℃
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SE120925-L | B | 3000 | 12 | 0.11 | 1.32 | 50 | 84.9 | 3.7 | 0.15 | 32.2 |
SE120925-M | B | 3500 | 12 | 0.16 | 1.92 | 58.4 | 99.2 | 5.04 | 0.2 | 36.2 |
SE120925-H | B | 4000 | 12 | 0.22 | 2.64 | 66.7 | 113.3 | 6.59 | 0.26 | 39.7 |
SE120925-U | B | 4500 | 12 | 0.3 | 3.6 | 75.1 | 127.5 | 8.33 | 0.33 | 42.8 |
SE120925-S | B | 5000 | 12 | 0.4 | 4.8 | 83.4 | 141.6 | 10.3 | 0.41 | 45.5 |
SE240925-L | B | 3000 | 24 | 0.07 | 1.68 | 50 | 84.9 | 3.7 | 0.15 | 32.2 |
SE240925-M | B | 3500 | 24 | 0.09 | 2.16 | 58.4 | 99.2 | 5.04 | 0.2 | 36.2 |
SE240925-H | B | 4000 | 24 | 0.12 | 2.88 | 66.7 | 113.3 | 6.59 | 0.26 | 39.7 |
SE240925-U | B | 4500 | 24 | 0.14 | 3.36 | 75.1 | 127.5 | 8.33 | 0.33 | 42.8 |
SE240925-S | B | 5000 | 24 | 0.21 | 5.04 | 83.4 | 141.6 | 10.3 | 0.41 | 45.5 |
