SA6076
Shengjiu Group

SA6076

Product description
  • Overall Dimension: 60×60×76mm

  • Material: Impeller&Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 10368 AWG#24 or Equivalent

  • Impeller: 5 Blades/4 Blades

  • Rotational Direction: Ccw View From Inlet Fan Blade

  • Mass: 260g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SA120676-S

B

21500/20700

12

5

60

84.7

143.8

233.2

9.18

80.8

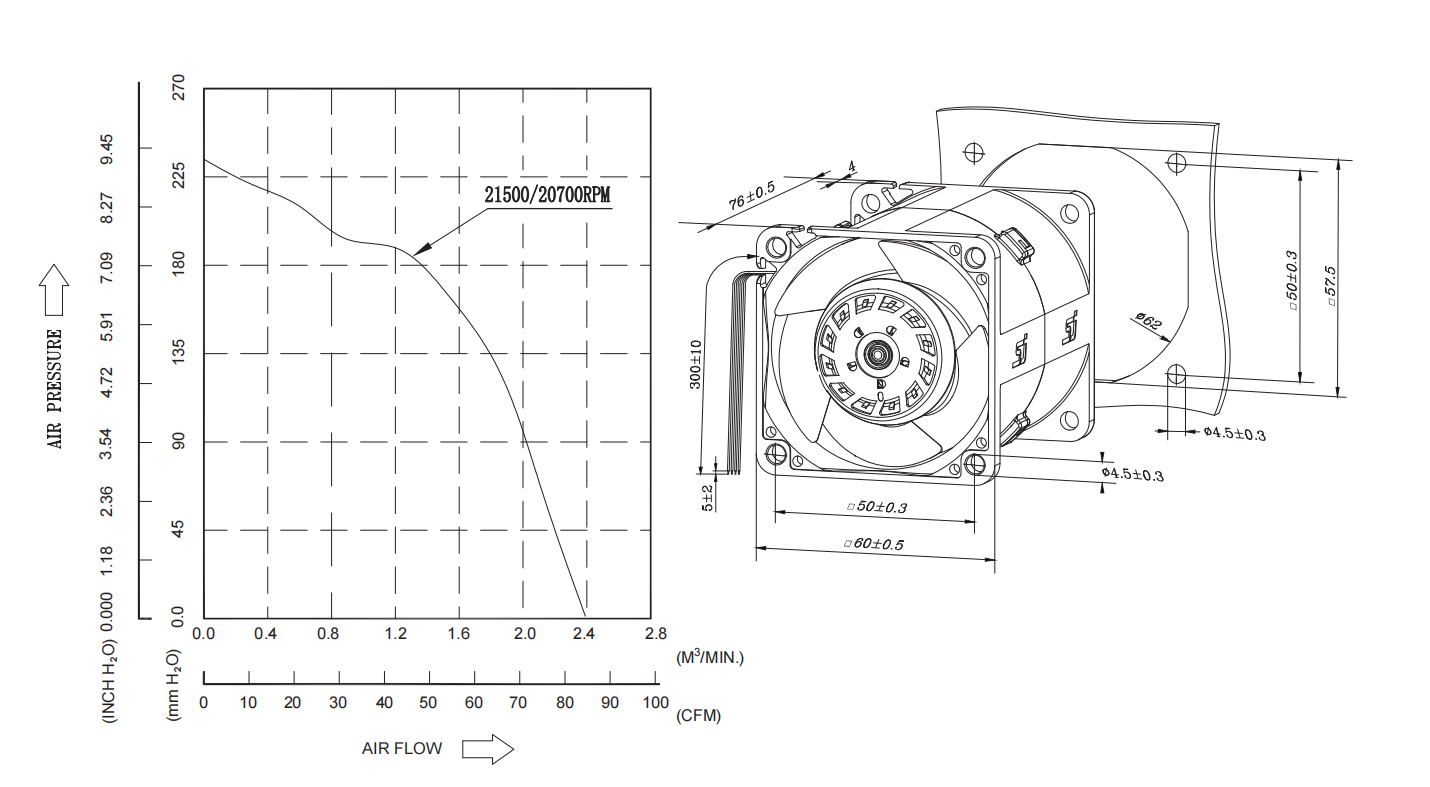

Drawing information


Application solution
    No Data
