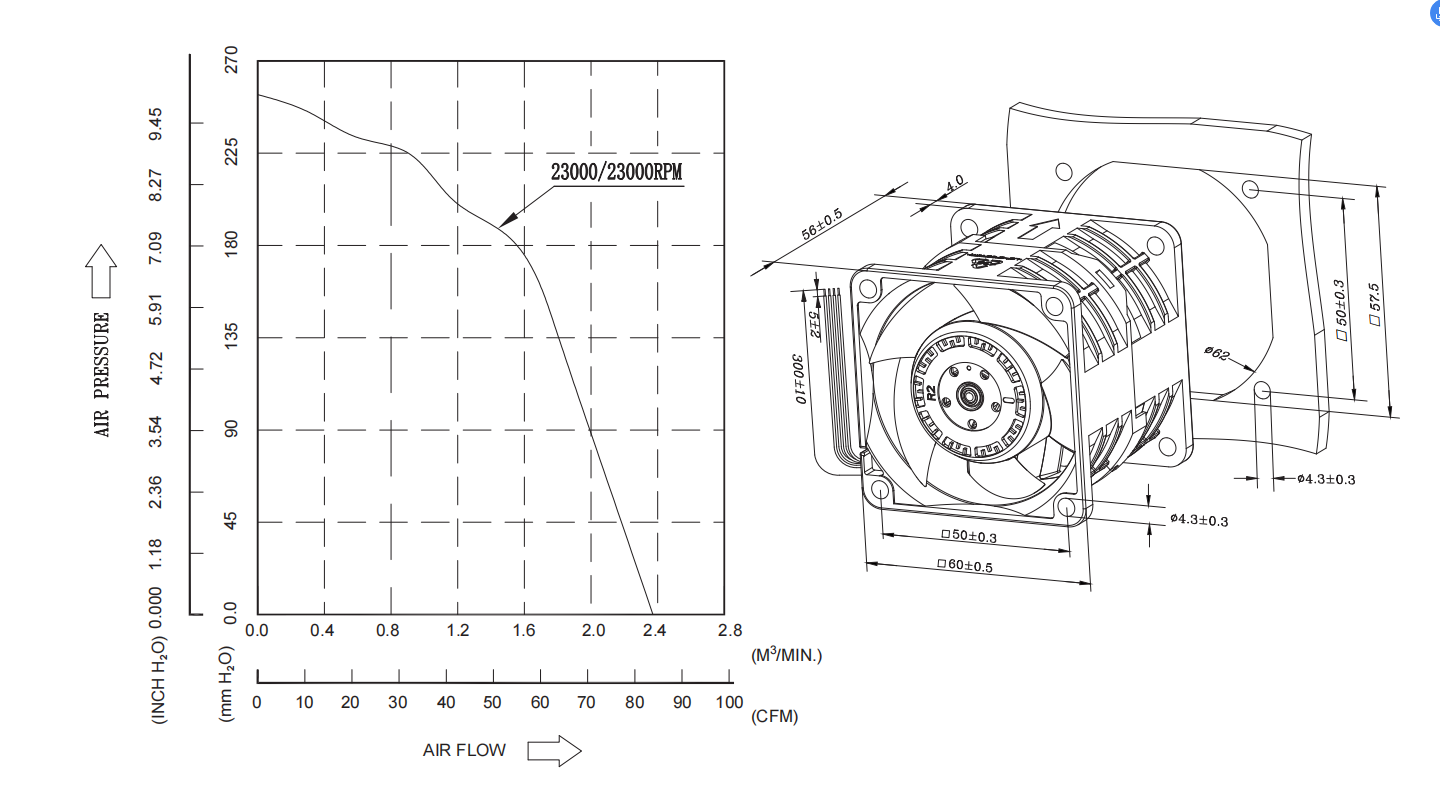

Overall Dimension: 60×60×56mm
Material: Impeller&Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 10368 AWG#24 or Equivalent
Impeller: 5 Blades/4Blades
Rotational Direction: Ccw View From Inlet Fan Blade
Mass: 205g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SB120656-S | B | 23000/23000 | 12 | 4.2 | 50.4 | 84 | 142.6 | 253 | 9.96 | 81 |
