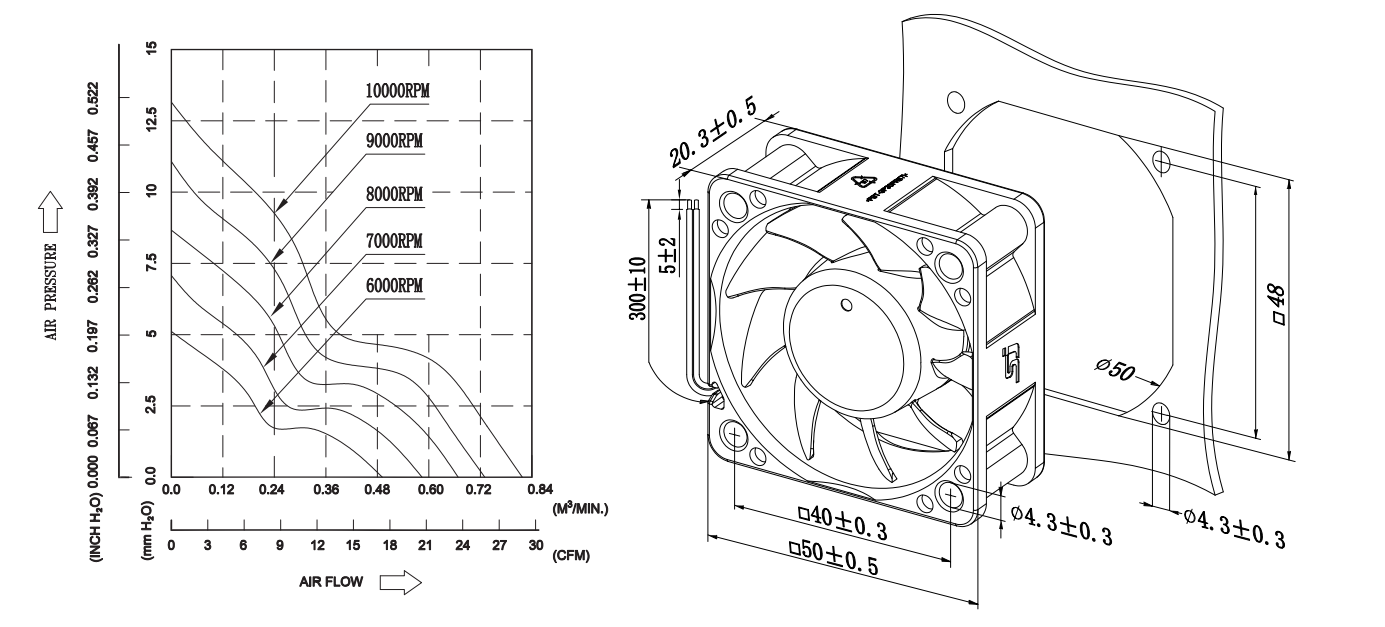

Overall Dimension: 50×50×20mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 9 Blades
Rotational direction: CCW view from impeller side
Mass: 40g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA120520-M | B | 6000 | 12 | 0.15 | 1.8 | 17.4 | 29.5 | 5.1 | 0.2 | 34.1 |
SA120520-H | B | 7000 | 12 | 0.2 | 2.4 | 20.7 | 35.1 | 7.06 | 0.28 | 37.5 |
SA120520-U | B | 8000 | 12 | 0.27 | 3.24 | 23.6 | 40.1 | 8.65 | 0.34 | 41.3 |
SA120520-S | B | 9000 | 12 | 0.33 | 3.96 | 25.8 | 43.9 | 11.1 | 0.44 | 43.9 |
SA120520-F | B | 10000 | 12 | 0.44 | 5.28 | 28.9 | 49.1 | 13.1 | 0.52 | 46.4 |
SA240520-M | B | 6000 | 24 | 0.09 | 2.16 | 17.4 | 29.5 | 5.1 | 0.2 | 33.8 |
SA240520-H | B | 7000 | 24 | 0.13 | 3.12 | 20.7 | 35.1 | 7.06 | 0.28 | 37.5 |
SA240520-U | B | 8000 | 24 | 0.16 | 3.84 | 23.6 | 40.1 | 8.65 | 0.34 | 41.3 |
SA240520-S | B | 9000 | 24 | 0.19 | 4.56 | 25.8 | 43.9 | 11.1 | 0.44 | 43.9 |
SA240520-F | B | 10000 | 24 | 0.23 | 5.52 | 28.9 | 49.1 | 13.1 | 0.52 | 46.4 |
