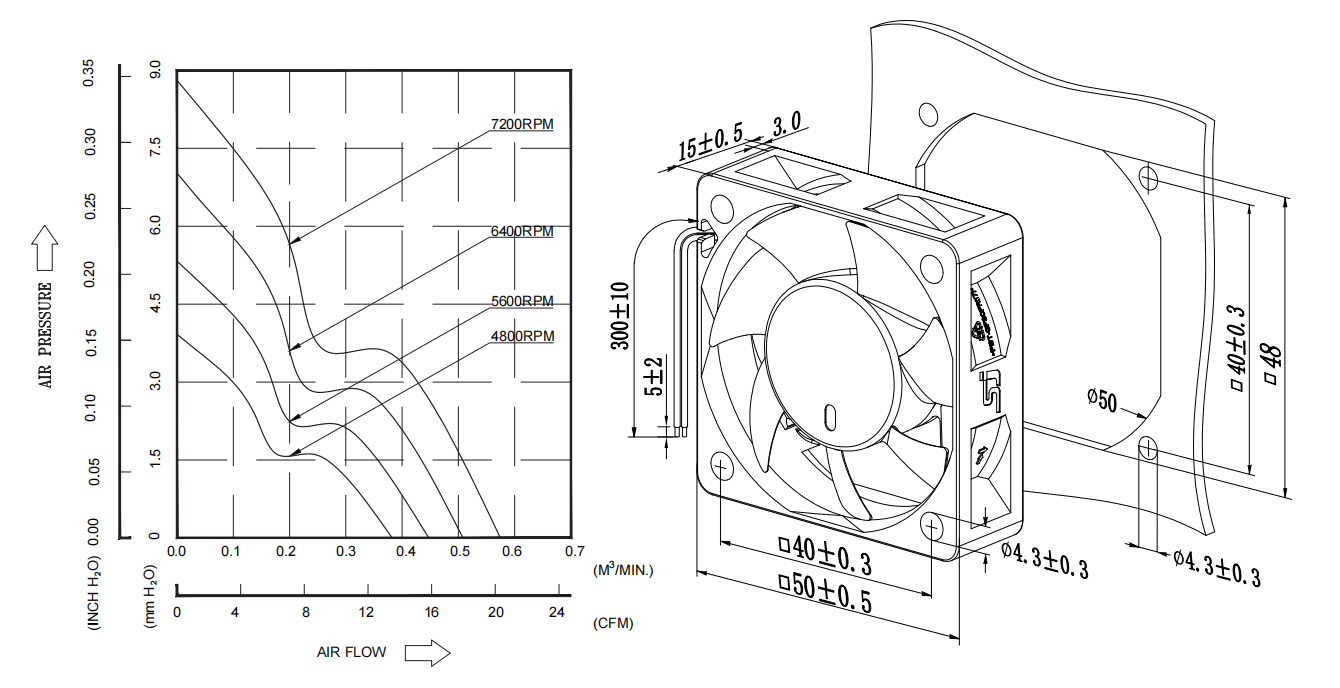

Overall Dimension: 50×50×15mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 24g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA120515-M | B | 4800 | 12 | 0.08 | 0.96 | 13.5 | 22.9 | 3.92 | 0.16 | 29.8 |
SA120515-H | B | 5600 | 12 | 0.12 | 1.44 | 15.8 | 26.8 | 5.33 | 0.21 | 33.1 |
SA120515-U | B | 6400 | 12 | 0.17 | 2.04 | 18 | 30.6 | 6.96 | 0.28 | 36.1 |
SA120515-S | B | 7200 | 12 | 0.25 | 3 | 20.3 | 34.5 | 8.81 | 0.35 | 38.6 |
SA240515-M | B | 4800 | 24 | 0.04 | 0.96 | 13.5 | 22.9 | 3.92 | 0.16 | 29.8 |
SA240515-H | B | 5600 | 24 | 0.06 | 1.44 | 15.8 | 26.8 | 5.33 | 0.21 | 33.1 |
SA240515-U | B | 6400 | 24 | 0.09 | 2.16 | 18 | 30.6 | 6.96 | 0.28 | 36.1 |
SA240515-S | B | 7200 | 24 | 0.13 | 3.12 | 20.3 | 34.5 | 8.81 | 0.35 | 38.6 |
