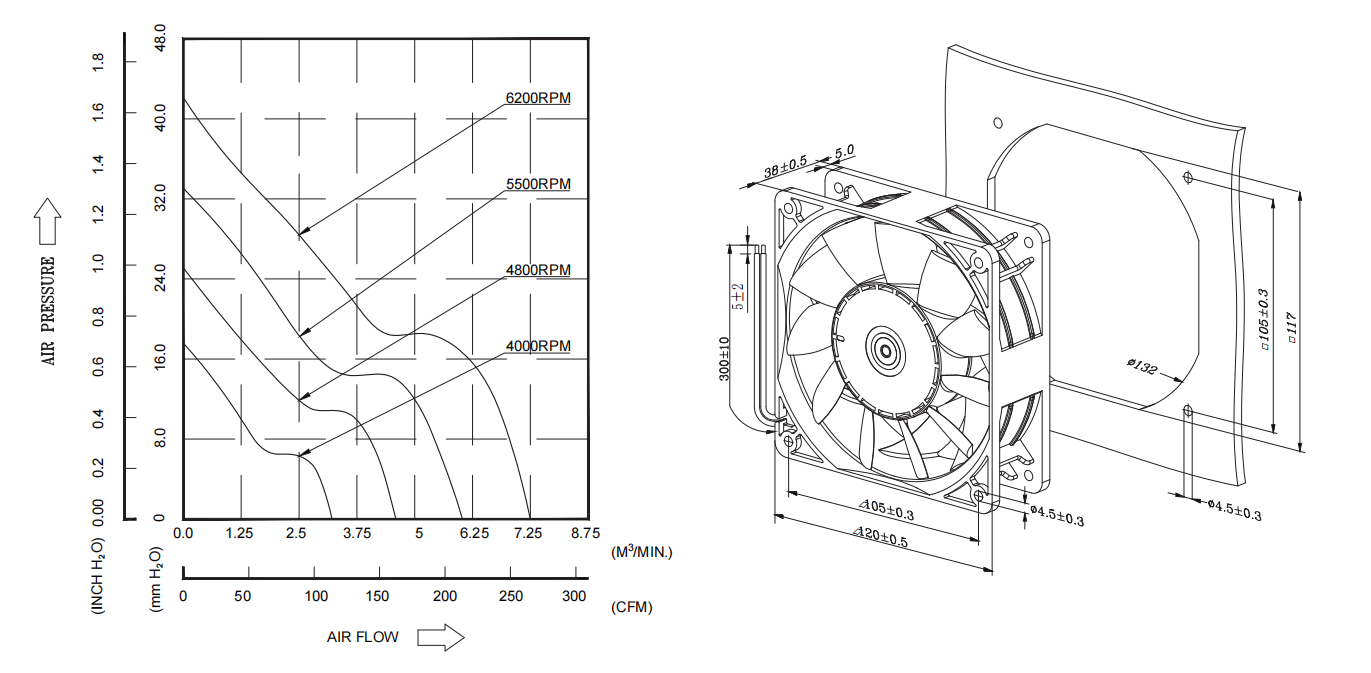

Overall Dimension: 120×120×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 11 Blades
Rotational direction: CCW view from impeller side
Mass: 370g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SE121238-M | B | 4000 | 12 | 1.56 | 18.7 | 172 | 292 | 17.4 | 0.69 | 58.9 |
SE121238-H | B | 4800 | 12 | 2.68 | 32.2 | 206.4 | 350.4 | 25.1 | 0.99 | 62.9 |
SE121238-U | B | 5500 | 12 | 4 | 48 | 236.5 | 401.5 | 32.9 | 1.29 | 65.8 |
SE241238-M | B | 4000 | 24 | 0.78 | 18.7 | 172 | 292 | 17.4 | 0.69 | 58.9 |
SE241238-H | B | 4800 | 24 | 1.34 | 32.2 | 206.4 | 350.4 | 25.1 | 0.99 | 62.9 |
SE241238-U | B | 5500 | 24 | 2 | 48 | 236.5 | 401.5 | 32.9 | 1.29 | 65.8 |
SE241238-S | B | 6200 | 24 | 2.9 | 69.6 | 266.6 | 452.7 | 41.8 | 1.65 | 68.5 |
SE481238-M | B | 4000 | 48 | 0.39 | 18.7 | 172 | 292 | 17.4 | 0.69 | 58.9 |
SE481238-H | B | 4800 | 48 | 0.67 | 32.2 | 206.4 | 350.4 | 25.1 | 0.99 | 62.9 |
SE481238-U | B | 5500 | 48 | 1.01 | 48.5 | 236.5 | 401.5 | 32.9 | 1.29 | 65.8 |
