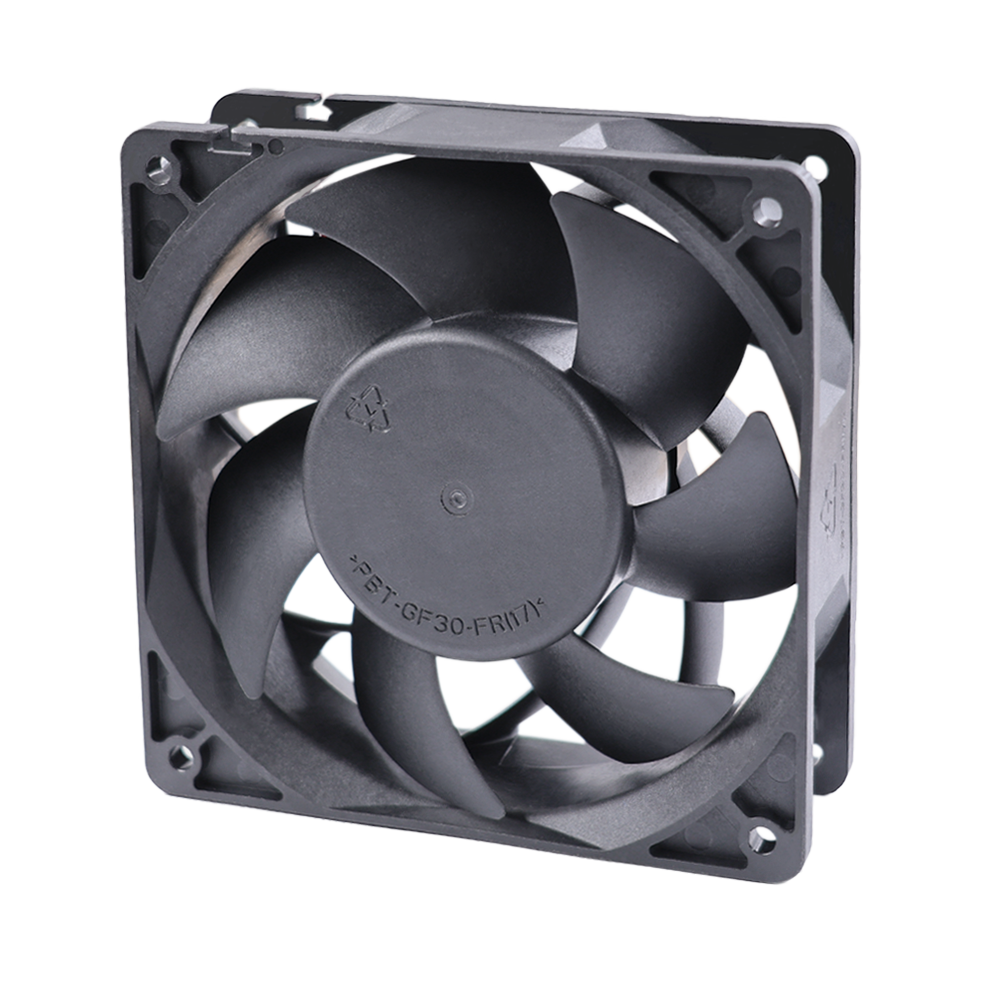

SJ12038
Shengjiu Group

SJ12038

Product description
  • Overall Dimension: 120×120×38mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 1007 AWG#24 or Equivalent

  • Impeller: 7 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 340g

  • Working Temperature: 85℃

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SJ241238-M

B

4000

24

0.32

7.68

138.9

235.9

10.51

0.41

52.8

SJ241238-H

B

5000

24

0.6

14.4

173.7

294.9

20.16

0.79

57.7

SJ241238-U

B

6000

24

1.05

25.2

210.5

357.5

30.08

1.18

61.7

SJ241238-S

B

7000

24

1.53

36.7

246.4

418.4

47.36

1.86

65

SJ481238-M

B

4000

48

0.2

9.6

138.9

235.9

10.51

0.41

52.8

SJ481238-H

B

5000

48

0.3

14.4

173.7

294.9

20.16

0.79

57.7

SJ481238-U

B

6000

48

0.53

25.4

210.5

357.5

30.08

1.18

61.7

SJ481238-S

B

7000

48

0.73

35

246.4

418.4

47.36

1.86

65
