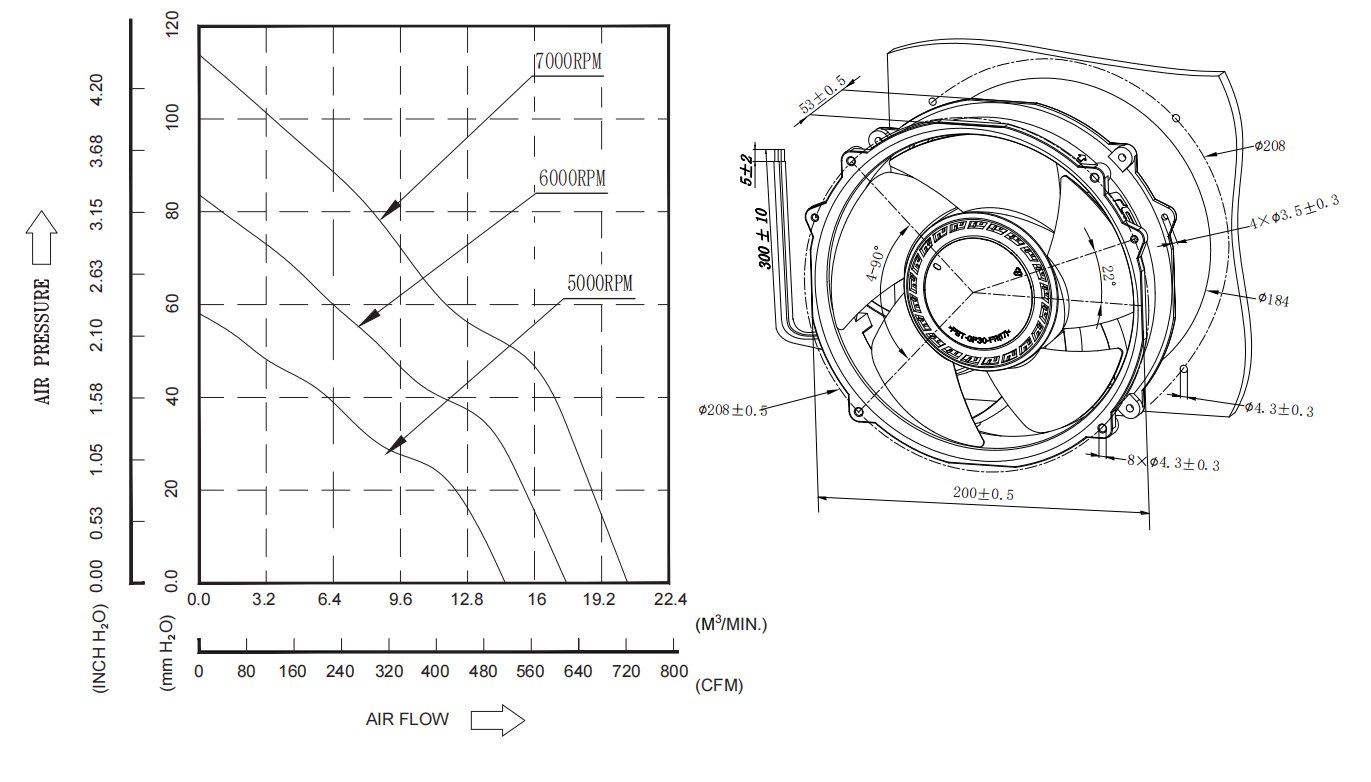

Overall Dimension: 200×200×53mm
Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminium
Lead Wires: UL 1007 AWG#16 or Equivalent
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 1380g
IP-Rating: IP68
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA482053-H | B | 5000 | 48 | 1.2 | 57.6 | 516.5 | 877 | 58 | 2.28 | 67.3 |
SA482053-U | B | 6000 | 48 | 2.1 | 100.8 | 619.8 | 1052.4 | 83.5 | 3.29 | 71.3 |
SA482053-S | B | 7000 | 48 | 3.3 | 158.4 | 723.1 | 1227.8 | 113.7 | 4.47 | 74.6 |
