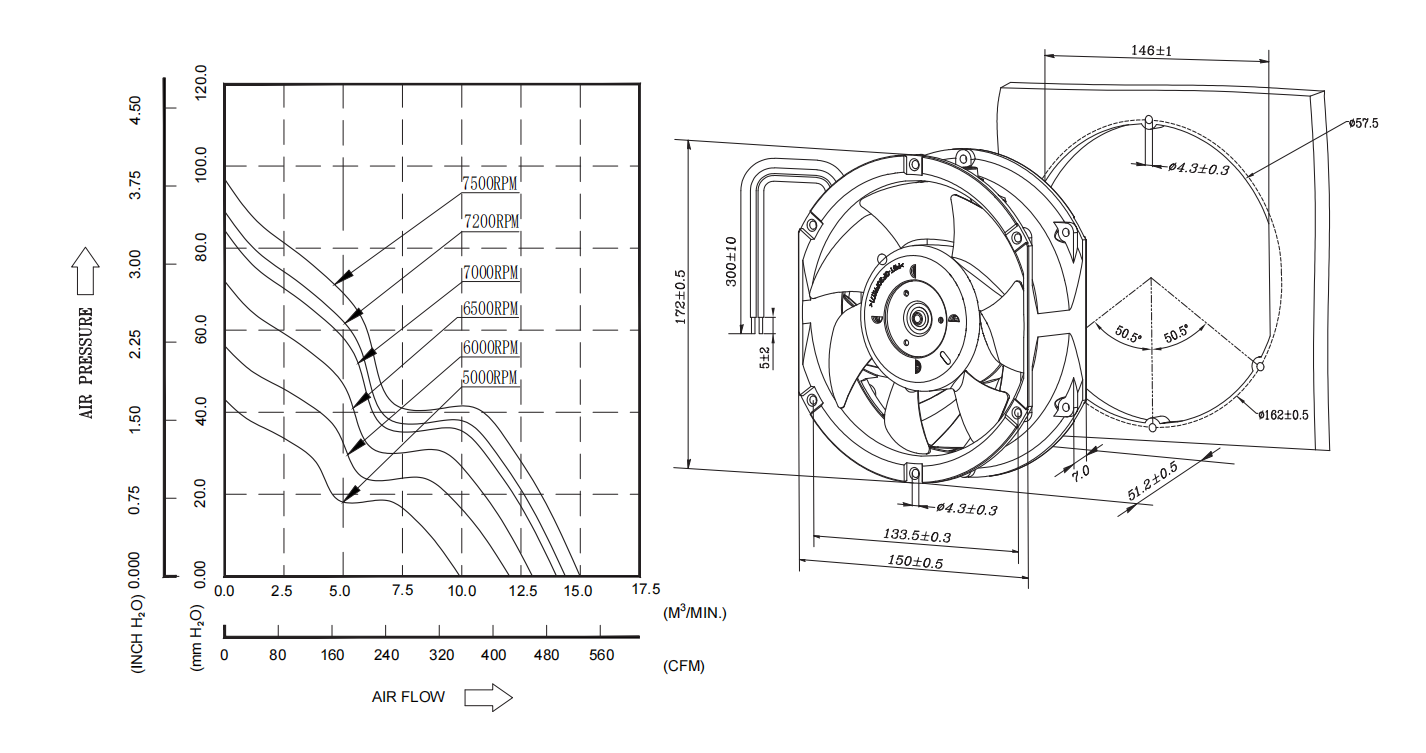

Overall Dimension: 172×150×51mm
Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminium
Lead Wires: UL 1007 AWG#22 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 870g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SC121438-L | B | 5000 | 12 | 2 | 24 | 235 | 399 | 30 | 1.18 | 63 |
SC121438-M | B | 6000 | 12 | 2.8 | 33.6 | 280 | 475.4 | 40.5 | 1.59 | 67 |
SC121438-H | B | 6800 | 12 | 4.1 | 49.2 | 314.1 | 533.3 | 54.6 | 2.15 | 70.5 |
SC121438-U | B | 7300 | 12 | 4.8 | 57.6 | 340 | 577.3 | 60 | 2.36 | 71 |
SC241438-L | B | 5000 | 24 | 1 | 24 | 235 | 399 | 30 | 1.18 | 63 |
SC241438-M | B | 6000 | 24 | 1.4 | 33.6 | 280 | 475.4 | 40.5 | 1.59 | 67 |
SC241438-H | B | 6800 | 24 | 2 | 48 | 314.1 | 533.3 | 54.6 | 2.15 | 70.5 |
SC241438-U | B | 7300 | 24 | 2.4 | 57.6 | 340 | 577.3 | 60 | 2.36 | 71 |
SC481438-L | B | 5000 | 48 | 0.5 | 24 | 235 | 399 | 30 | 1.18 | 63 |
SC481438-M | B | 6000 | 48 | 0.7 | 33.6 | 280 | 475.4 | 40.5 | 1.59 | 67 |
SC481438-H | B | 6800 | 48 | 0.11 | 52.8 | 314.1 | 533.3 | 54.6 | 2.15 | 70.5 |
SC481438-U | B | 7300 | 48 | 1.3 | 62.4 | 340 | 577.3 | 60 | 2.36 | 71 |
