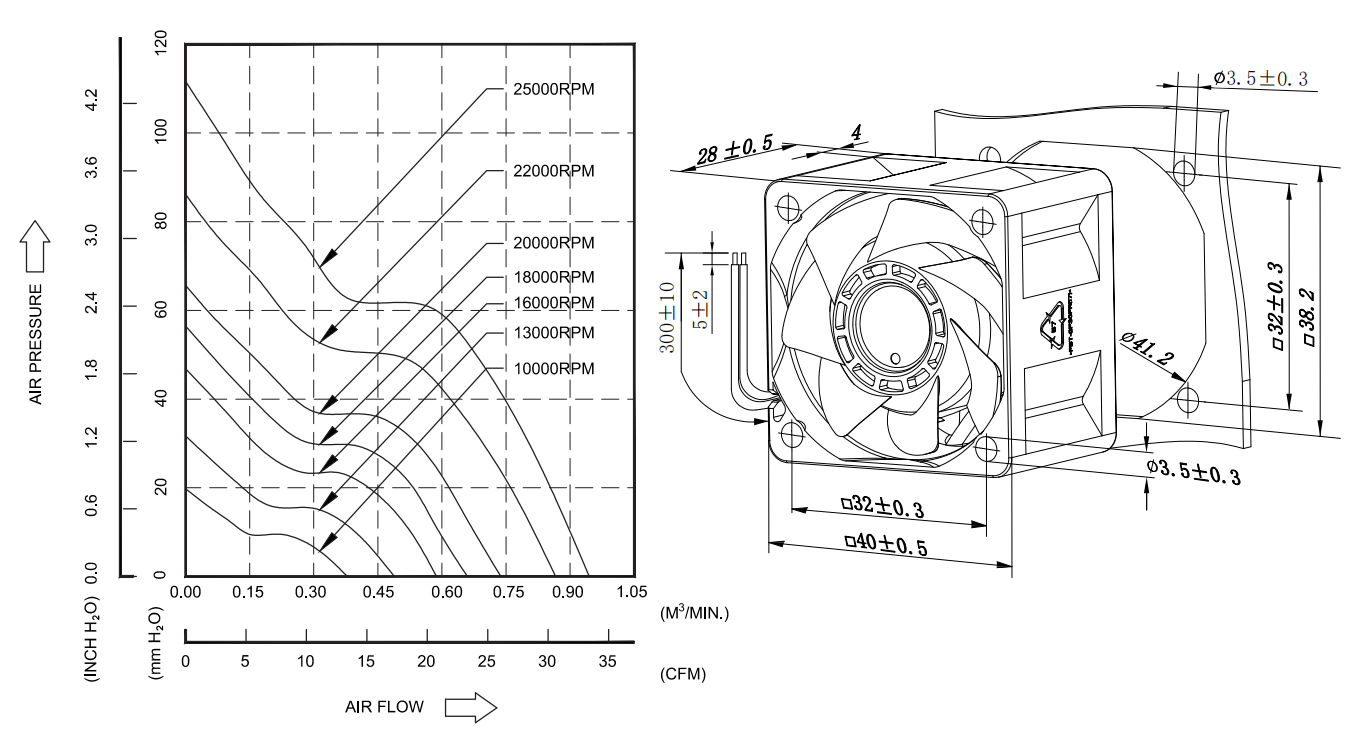

Overall Dimension: 40×40×28mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 48g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SE120428-X | B | 10000 | 12 | 0.18 | 2.16 | 13.4 | 22.7 | 19.8 | 0.78 | 47.7 |
SE120428-E | B | 13000 | 12 | 0.3 | 3.6 | 17.3 | 29.4 | 31.7 | 1.25 | 53 |
SE120428-L | B | 16000 | 12 | 0.5 | 6 | 20.8 | 35.3 | 46.8 | 1.84 | 57.7 |
SE120428-M | B | 18000 | 12 | 0.68 | 8.16 | 23.3 | 39.6 | 56.4 | 2.22 | 59.8 |
SE120428-H | B | 20000 | 12 | 0.95 | 11.4 | 26.1 | 44.3 | 65.6 | 2.58 | 63.5 |
SE120428-U | B | 23000 | 12 | 1.2 | 14.4 | 30.6 | 52 | 86.2 | 3.39 | 66.6 |
SE120428-S | B | 25000 | 12 | 1.5 | 18 | 33.4 | 56.7 | 111.6 | 4.4 | 67.9 |
