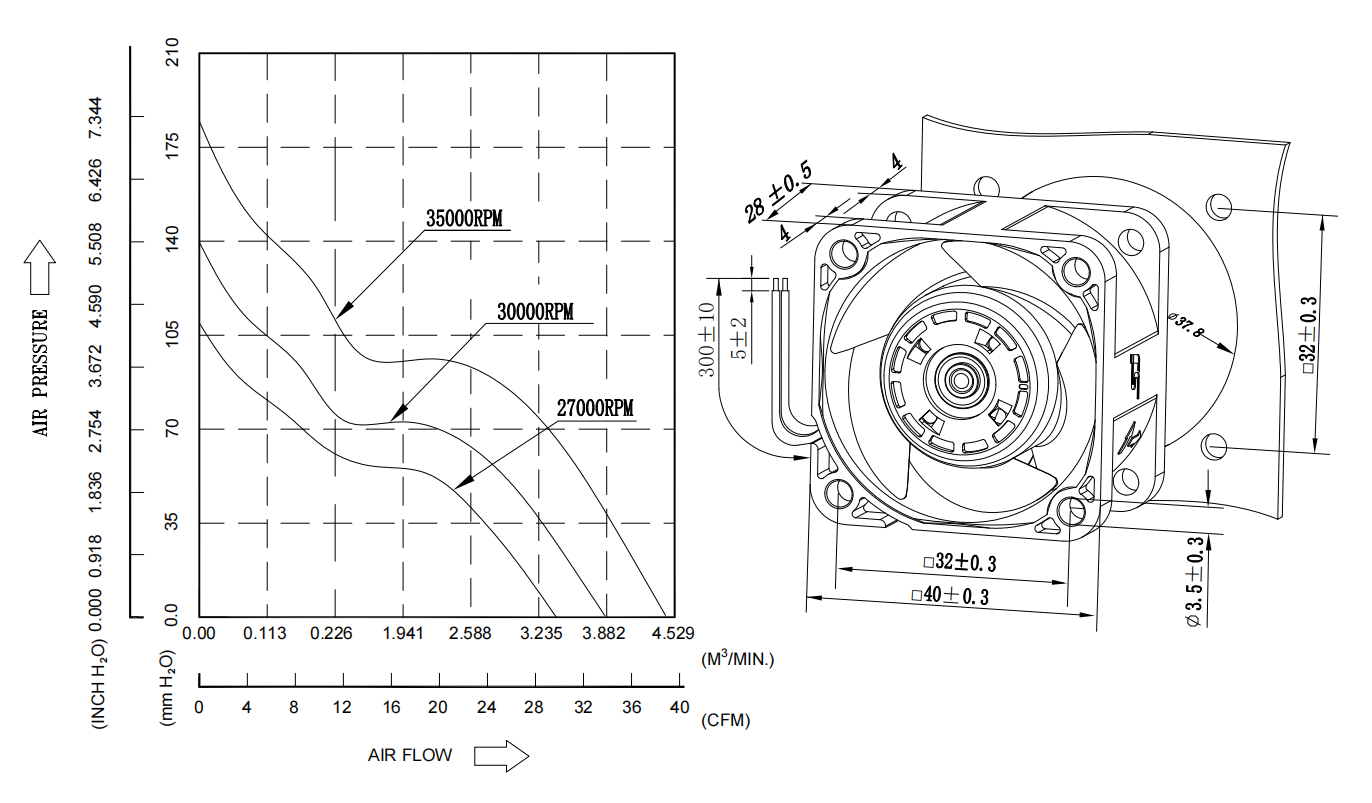

Overall Dimension: 40×40×28mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 48g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SI120428-U | B | 27000 | 12 | 1.2 | 14.4 | 29.7 | 50.4 | 109.4 | 4.31 | 63.2 |
SI120428-S | B | 30000 | 12 | 2 | 24 | 33.8 | 57.4 | 139.4 | 5.49 | 68.2 |
SI120428-F | B | 35000 | 12 | 2.3 | 27.6 | 38.8 | 65.9 | 184.4 | 7.26 | 72 |
