SD4028
Shengjiu Group

SD4028

Product description
  • Overall Dimension: 40×40×28mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 1061 AWG#26

  • Impeller: 5 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 47g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SD120428-E

B

8000

12

0.12

1.44

11.2

19.1

9.48

0.37

36.9

SD120428-L

B

10000

12

0.17

2.04

14.5

24.6

14.6

0.58

42.4

SD120428-M

B

12000

12

0.24

2.88

17.5

29.6

21.1

0.83

48

SD120428-H

B

14000

12

0.35

4.2

20.7

35.1

28.5

1.12

51.2

SD120428-U

B

16000

12

0.5

6

23.3

39.6

36.7

1.44

54.2

SD120428-S

B

18000

12

0.7

8.4

26.5

45.1

47.5

1.87

56.8

SD240428-E

B

8000

24

0.06

1.44

11.2

19.1

9.48

0.37

36.9

SD240428-L

B

10000

24

0.08

1.92

14.5

24.6

14.6

0.58

42.4

SD240428-M

B

12000

24

0.12

2.88

17.5

29.6

21.1

0.83

48

SD240428-H

B

14000

24

0.18

4.32

20.7

35.1

28.5

1.12

51.2

SD240428-U

B

16000

24

0.27

6.48

23.3

39.6

36.7

1.44

54.2

SD240428-S

B

18000

24

0.38

9.12

26.5

45.1

47.5

1.87

56.8

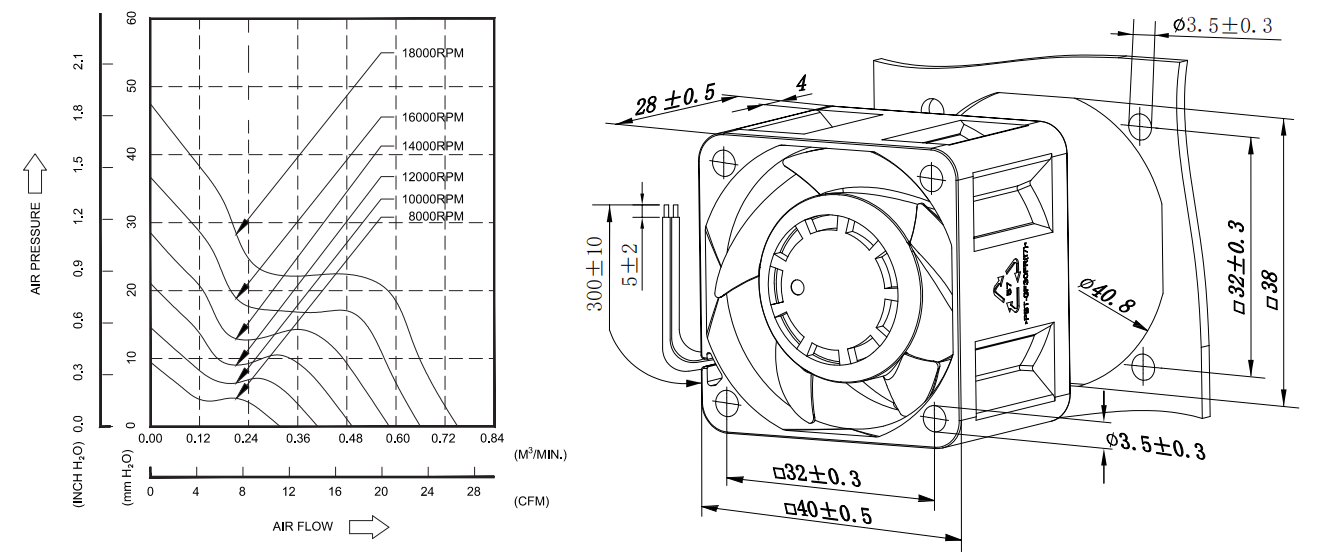

Drawing information
