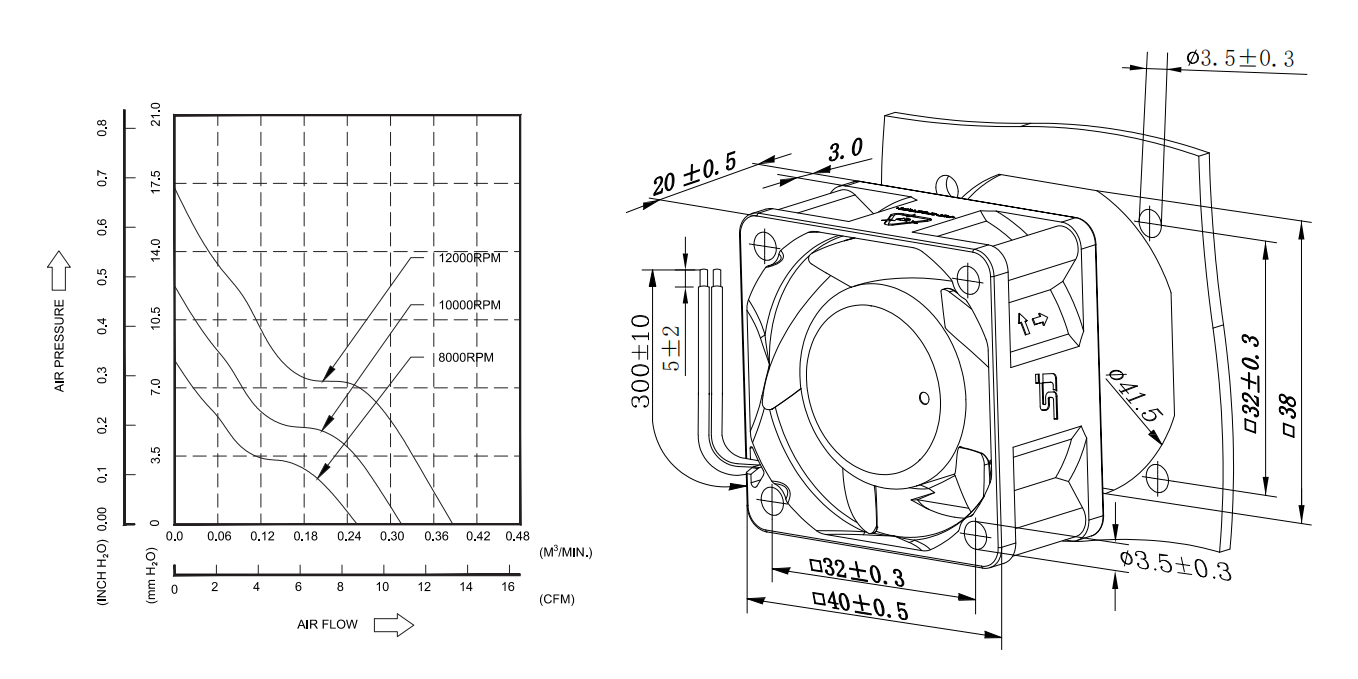

Overall Dimension: 40×40×20mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 30g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SB120420-L | B | 8000 | 12 | 0.1 | 1.2 | 8.7 | 14.8 | 8.42 | 0.33 | 32.9 |
SB120420-M | B | 10000 | 12 | 0.12 | 1.44 | 10.8 | 18.4 | 12.2 | 0.48 | 37.6 |
SB120420-H | B | 12000 | 12 | 0.18 | 2.16 | 13.3 | 22.6 | 17.3 | 0.68 | 44.5 |
SB240420-L | B | 8000 | 24 | 0.05 | 1.2 | 8.7 | 14.8 | 8.42 | 0.33 | 32.9 |
SB240420-M | B | 10000 | 24 | 0.07 | 1.68 | 10.8 | 18.4 | 12.2 | 0.48 | 37.6 |
SB240420-H | B | 12000 | 24 | 0.1 | 2.4 | 13.3 | 22.6 | 17.3 | 0.68 | 44.5 |
