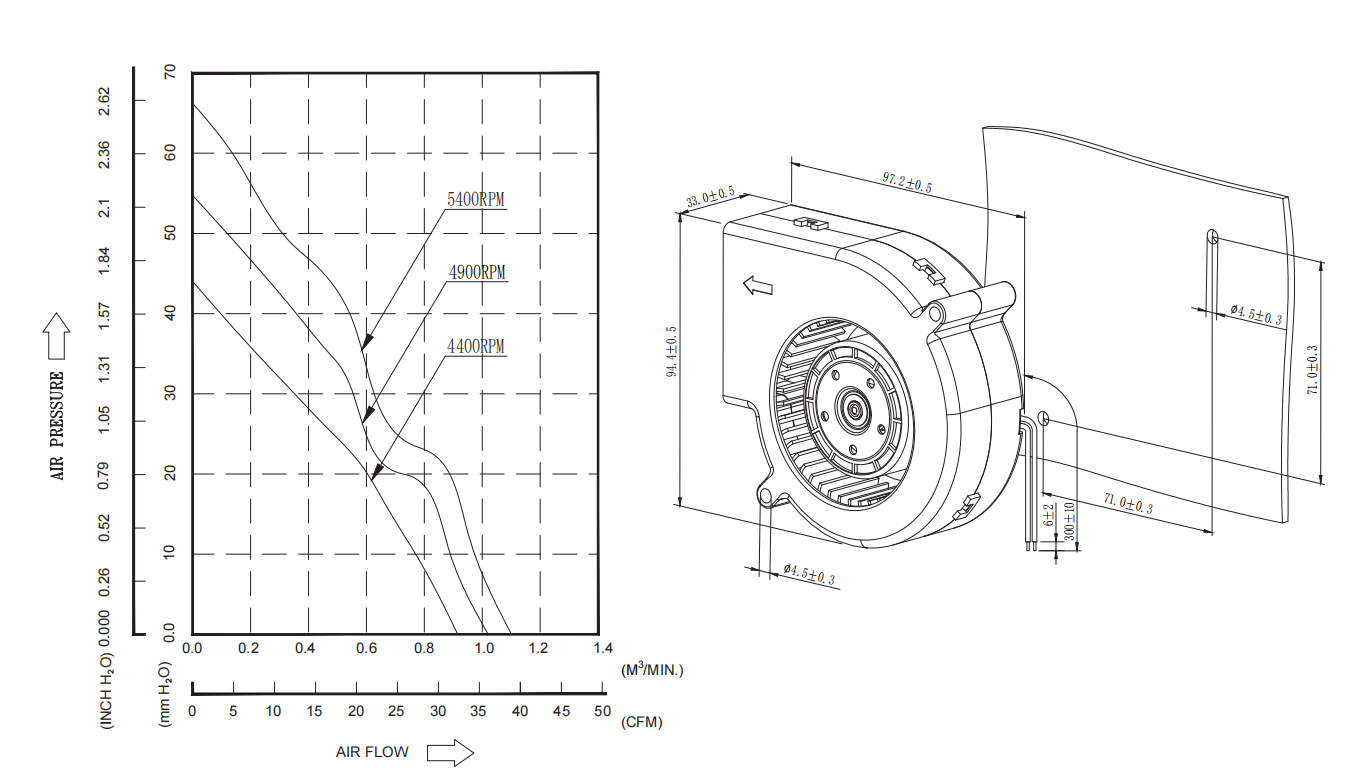

Overall Dimension: 97×94×33mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 43 Blades
Rotational direction: CCW view from impeller side
Mass: 190g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
BA120933-L | B | 4400 | 12 | 0.96 | 11.5 | 32.4 | 54.9 | 44 | 1.73 | 56.9 |
BA120933-M | B | 4900 | 12 | 1.3 | 15.6 | 36.1 | 61.3 | 54.8 | 2.16 | 59.2 |
BA120933-H | B | 5400 | 12 | 1.54 | 18.5 | 38.9 | 66 | 66.2 | 2.61 | 61.6 |
