SA6038
Shengjiu Group

SA6038

Product description
  • Overall Dimension: 60×60×38mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 1007 AWG#26 or Equivalent

  • Impeller: 7 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 130g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SA120638-M

B

4000

12

0.16

1.9

22.3

37.7

5.19

0.2

35.1

SA120638-H

B

6000

12

0.25

3

33.5

56.6

11.7

0.46

43.9

SA120638-U

B

8000

12

0.46

5.5

44.6

75.4

20.8

0.82

50.2

SA120638-S

B

10000

12

0.9

10.8

55.8

94.3

32.5

1.28

55

SA240638-M

B

4000

24

0.12

2.9

22.3

37.7

5.19

0.2

35.1

SA240638-H

B

6000

24

0.16

3.8

33.5

56.6

11.7

0.46

43.9

SA240638-U

B

8000

24

0.26

6.2

44.6

75.4

20.8

0.82

50.2

SA240638-S

B

9000

24

0.38

9.1

50.2

84.8

26.3

1.04

52.9

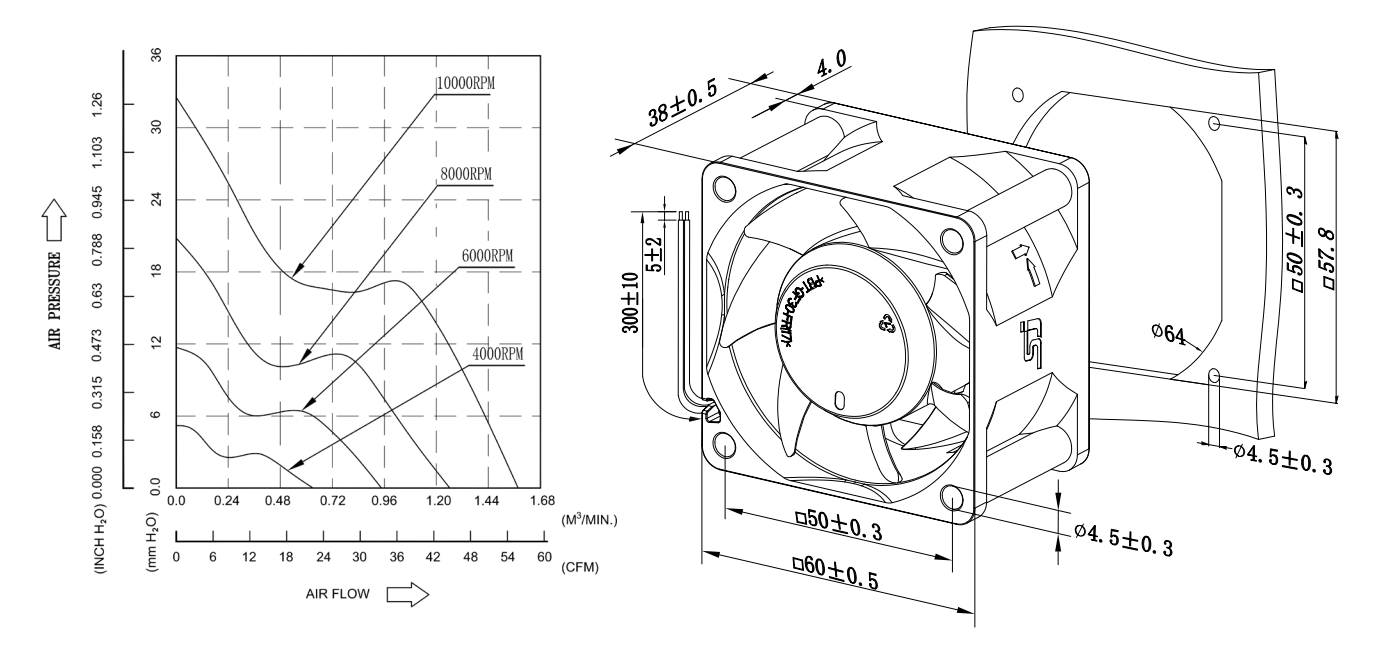

Drawing information
