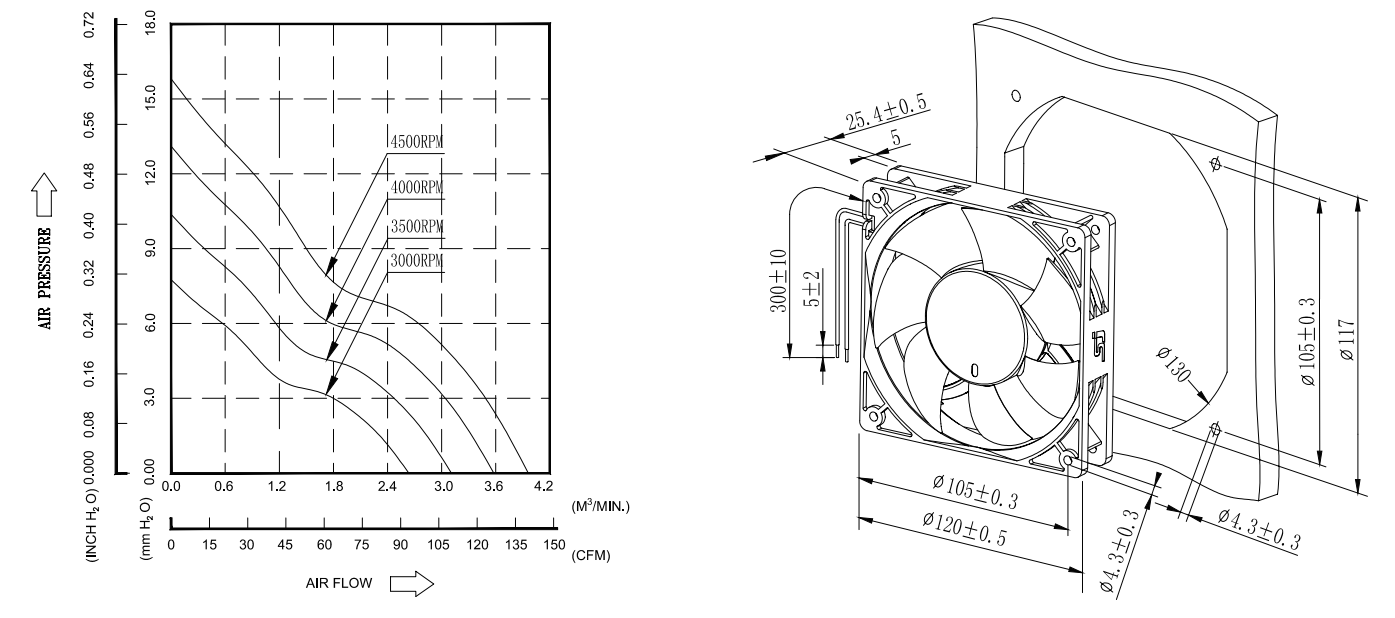

Overall Dimension: 120×120×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 190g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SC121225-L | B | 3000 | 12 | 0.3 | 3.6 | 93.3 | 158.4 | 7.76 | 0.31 | 42 |
SC121225-M | B | 3500 | 12 | 0.45 | 5.4 | 110 | 186.8 | 10.4 | 0.41 | 46 |
SC121225-H | B | 4000 | 12 | 0.59 | 7.08 | 126.6 | 215 | 13.1 | 0.52 | 50.5 |
SC121225-U | B | 4500 | 12 | 0.84 | 10.1 | 140.1 | 238 | 15.8 | 0.62 | 52 |
SC241225-L | B | 3000 | 24 | 0.14 | 3.36 | 93.3 | 158.4 | 7.76 | 0.31 | 42 |
SC241225-M | B | 3500 | 24 | 0.25 | 4.8 | 110 | 186.8 | 10.4 | 0.41 | 46 |
SC241225-H | B | 4000 | 24 | 0.33 | 7.92 | 126.6 | 215 | 13.1 | 0.52 | 50.5 |
SC241225-U | B | 4500 | 24 | 0.4 | 9.6 | 140.1 | 238 | 15.8 | 0.62 | 52 |
SC481225-L | B | 3000 | 48 | 0.07 | 3.36 | 93.3 | 158.4 | 7.76 | 0.31 | 42 |
SC481225-M | B | 3500 | 48 | 0.1 | 4.8 | 110 | 186.8 | 10.4 | 0.41 | 46 |
SC481225-H | B | 4000 | 48 | 0.14 | 6.72 | 126.6 | 215 | 13.1 | 0.52 | 50.5 |
SC481225-U | B | 4500 | 48 | 0.19 | 9.12 | 140.1 | 238 | 15.8 | 0.62 | 52 |
