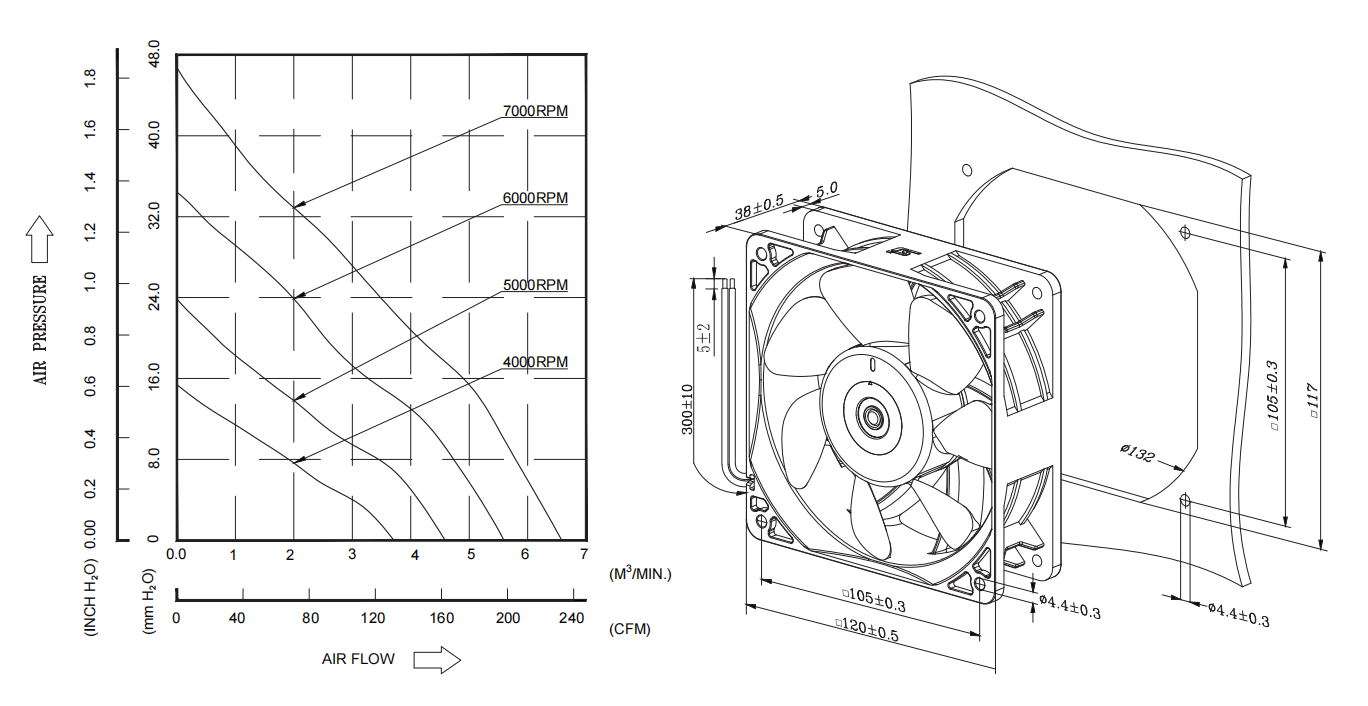

Overall Dimension: 120×120×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 270g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SG121238-H | B | 4000 | 12 | 0.6 | 7.2 | 131.3 | 222.9 | 15.1 | 0.59 | 55.2 |
SG121238-U | B | 5000 | 12 | 1.16 | 13.9 | 164.2 | 278.8 | 23.6 | 0.93 | 60 |
SG121238-S | B | 6000 | 12 | 2 | 24 | 197 | 334.5 | 34 | 1.34 | 64 |
SG241238-H | B | 4000 | 24 | 0.3 | 7.2 | 131.3 | 222.9 | 15.1 | 0.59 | 55.2 |
SG241238-U | B | 5000 | 24 | 0.58 | 13.9 | 164.2 | 278.8 | 23.6 | 0.93 | 60 |
SG241238-S | B | 6000 | 24 | 1 | 24 | 197 | 334.5 | 34 | 1.34 | 64 |
SG481238-H | B | 4000 | 48 | 0.15 | 7.2 | 131.3 | 222.9 | 15.1 | 0.59 | 55.2 |
SG481238-U | B | 5000 | 48 | 0.29 | 13.9 | 164.2 | 278.8 | 23.6 | 0.93 | 60 |
SG481238-S | B | 6000 | 48 | 0.5 | 24 | 197 | 334.5 | 34 | 1.34 | 64 |
