SA8015
Shengjiu Group

SA8015

Product description
  • Overall Dimension: 80×80×15mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 1061 AWG#26 or Equivalent

  • Impeller: 9 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 80g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SA120815-L

B

3000

12

0.12

1.44

32.1

54.4

3.08

0.12

31.2

SA120815-M

B

3500

12

0.16

1.92

37

62.9

3.6

0.14

34.8

SA120815-H

B

4000

12

0.22

2.64

42.1

71.5

5.06

0.2

37.7

SA120815-U

B

4500

12

0.3

3.6

47.2

80.1

6.08

0.24

41.1

SA240815-L

B

3000

24

0.06

1.44

32.1

54.4

3.08

0.12

31.2

SA240815-M

B

3500

24

0.08

1.92

37

62.9

3.6

0.14

34.8

SA240815-H

B

4000

24

0.11

2.64

42.1

71.5

5.06

0.2

37.7

SA240815-U

B

4500

24

0.15

3.6

47.2

80.1

6.08

0.24

41.1

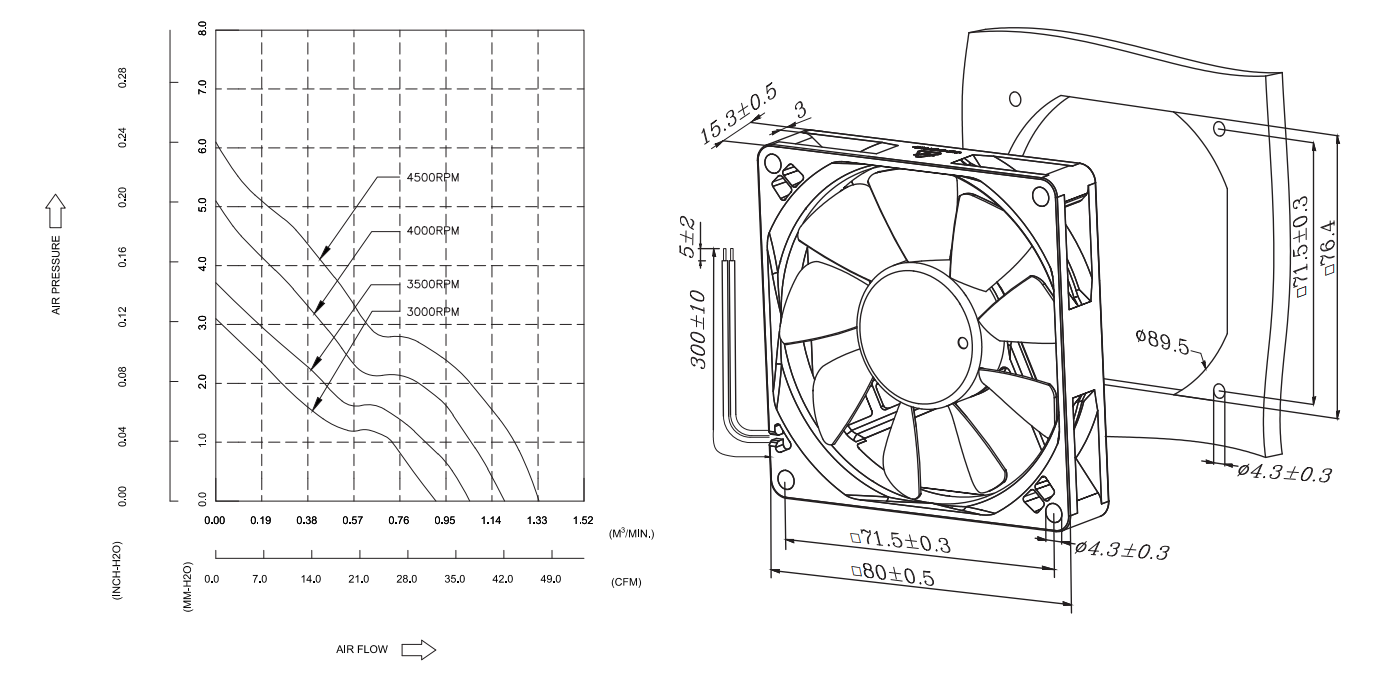

Drawing information
