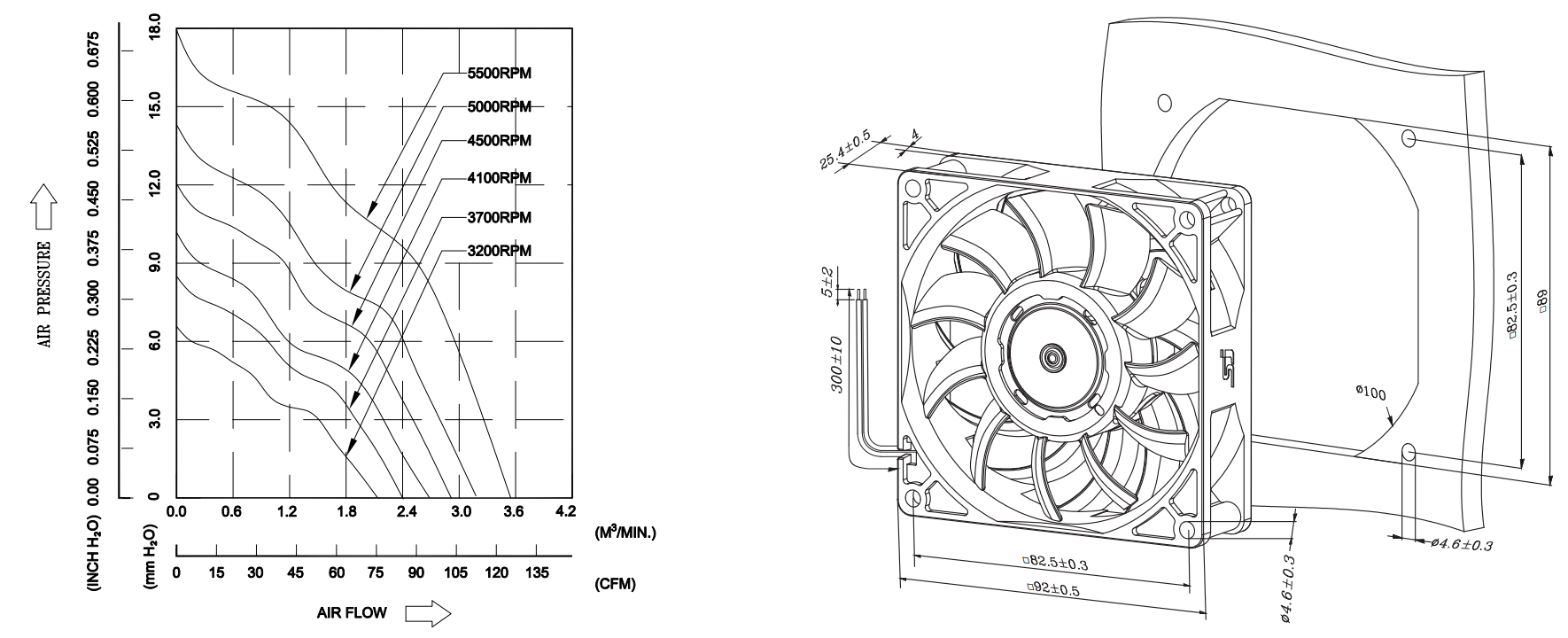

Overall Dimension: 92×92×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 11 Blades
Rotational direction: CCW view from impeller side
Mass: 130g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA120925-L | B | 3200 | 12 | 0.34 | 4.08 | 75.4 | 128 | 6.57 | 0.26 | 43.8 |
SA120925-M | B | 3700 | 12 | 0.51 | 6.12 | 85.1 | 144.5 | 8.49 | 0.33 | 47.7 |
SA120925-H | B | 4100 | 12 | 0.73 | 8.76 | 94.9 | 161.1 | 10.2 | 0.4 | 50.2 |
SA120925-U | B | 4500 | 12 | 0.9 | 10.8 | 103.1 | 175.1 | 12.6 | 0.47 | 52 |
SA120925-S | B | 5000 | 12 | 1.1 | 13.2 | 112.4 | 190.9 | 14.3 | 0.56 | 54 |
SA120925-F | B | 5500 | 12 | 1.43 | 17.2 | 125.4 | 212.9 | 17.9 | 0.71 | 57 |
SA240925-L | B | 3200 | 24 | 0.18 | 4.32 | 75.4 | 128 | 6.57 | 0.26 | 43.8 |
SA240925-M | B | 3700 | 24 | 0.26 | 6.24 | 85.1 | 144.5 | 8.49 | 0.33 | 47.7 |
SA240925-H | B | 4100 | 24 | 0.36 | 8.64 | 94.9 | 161.1 | 10.2 | 0.4 | 50.2 |
SA240925-U | B | 4500 | 24 | 0.4 | 9.6 | 103.1 | 175.1 | 12.6 | 0.47 | 52 |
SA240925-S | B | 5000 | 24 | 0.53 | 12.7 | 112.4 | 190.9 | 14.3 | 0.56 | 54 |
SA240925-F | B | 5500 | 24 | 0.7 | 16.8 | 125.4 | 212.9 | 17.9 | 0.71 | 57 |
SA480925-L | B | 3200 | 48 | 0.1 | 4.8 | 75.4 | 128 | 6.57 | 0.26 | 43.8 |
SA480925-M | B | 3700 | 48 | 0.17 | 8.16 | 85.1 | 144.5 | 8.49 | 0.33 | 47.7 |
SA480925-H | B | 4100 | 48 | 0.19 | 9.12 | 94.9 | 161.1 | 10.2 | 0.4 | 50.2 |
SA480925-U | B | 4500 | 48 | 0.23 | 11 | 103.1 | 175.1 | 12.6 | 0.47 | 52 |
SA480925-S | B | 5000 | 48 | 0.28 | 13.4 | 112.4 | 190.9 | 14.3 | 0.56 | 54 |
SA480925-F | B | 5500 | 48 | 0.37 | 17.8 | 125.4 | 212.9 | 17.9 | 0.71 | 57 |
