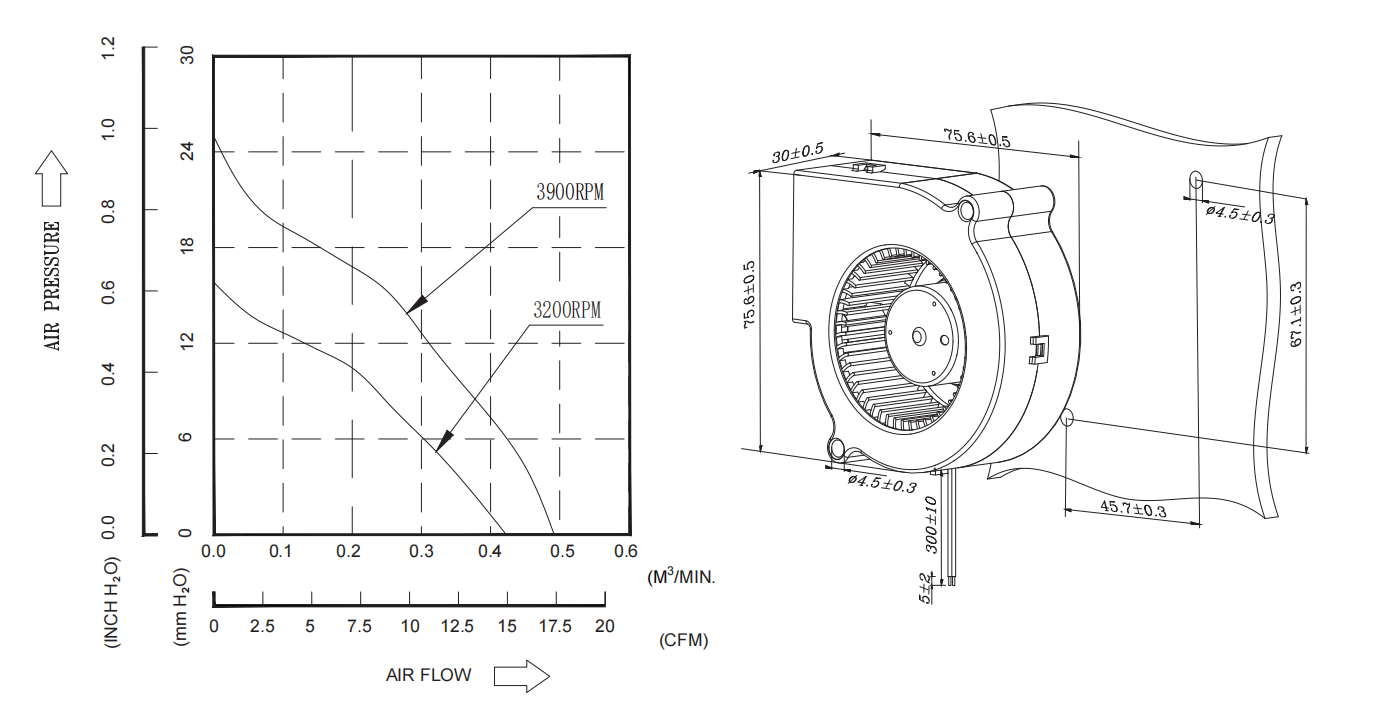

Overall Dimension: 75.6×75.6×30mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26 or Equivalent
Impeller: 51 Blades
Rotational direction: CCW view from impeller side
Mass: 70g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
BA120730-U | R | 3200 | 12 | 0.23 | 2.76 | 14.3 | 24.3 | 16.8 | 0.66 | 39.8 |
BA120730-S | R | 3900 | 12 | 0.42 | 5.04 | 17.4 | 29.6 | 24.9 | 0.98 | 45 |
