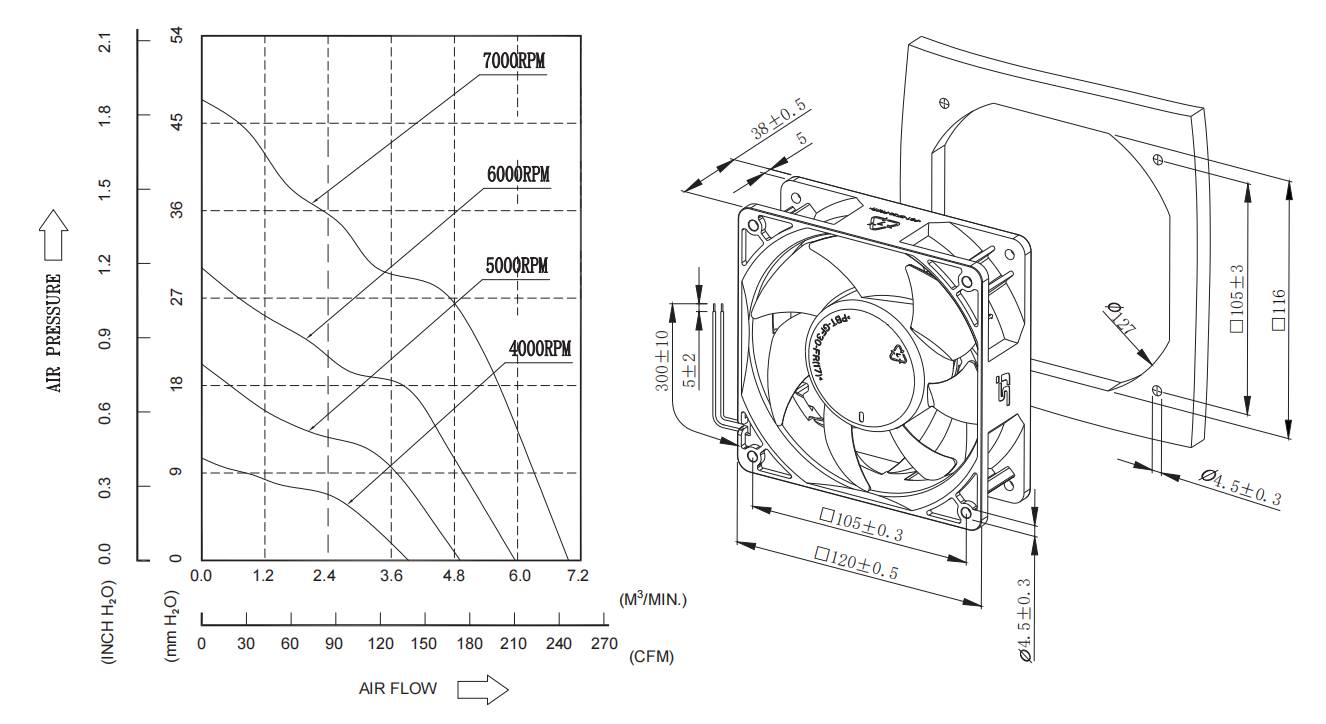

Overall Dimension: 120×120×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 340g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
SJ241238-M | B | 4000 | 24 | 0.32 | 7.68 | 138.9 | 235.9 | 10.5 | 0.41 | 52.8 |
SJ241238-H | B | 5000 | 24 | 0.6 | 14.4 | 173.7 | 294.9 | 20.2 | 0.79 | 57.7 |
SJ241238-U | B | 6000 | 24 | 1.05 | 25.2 | 210.5 | 357.5 | 30.1 | 1.18 | 61.7 |
SJ241238-S | B | 7000 | 24 | 1.53 | 36.7 | 246.4 | 418.4 | 47.4 | 1.86 | 65 |
SJ481238-M | B | 4000 | 48 | 0.2 | 9.6 | 138.9 | 235.9 | 10.5 | 0.41 | 52.8 |
SJ481238-H | B | 5000 | 48 | 0.3 | 14.4 | 173.7 | 294.9 | 20.2 | 0.79 | 57.7 |
SJ481238-U | B | 6000 | 48 | 0.53 | 25.4 | 210.5 | 357.5 | 30.1 | 1.18 | 61.7 |
SJ481238-S | B | 7000 | 48 | 0.73 | 35 | 246.4 | 418.4 | 47.4 | 1.86 | 65 |
