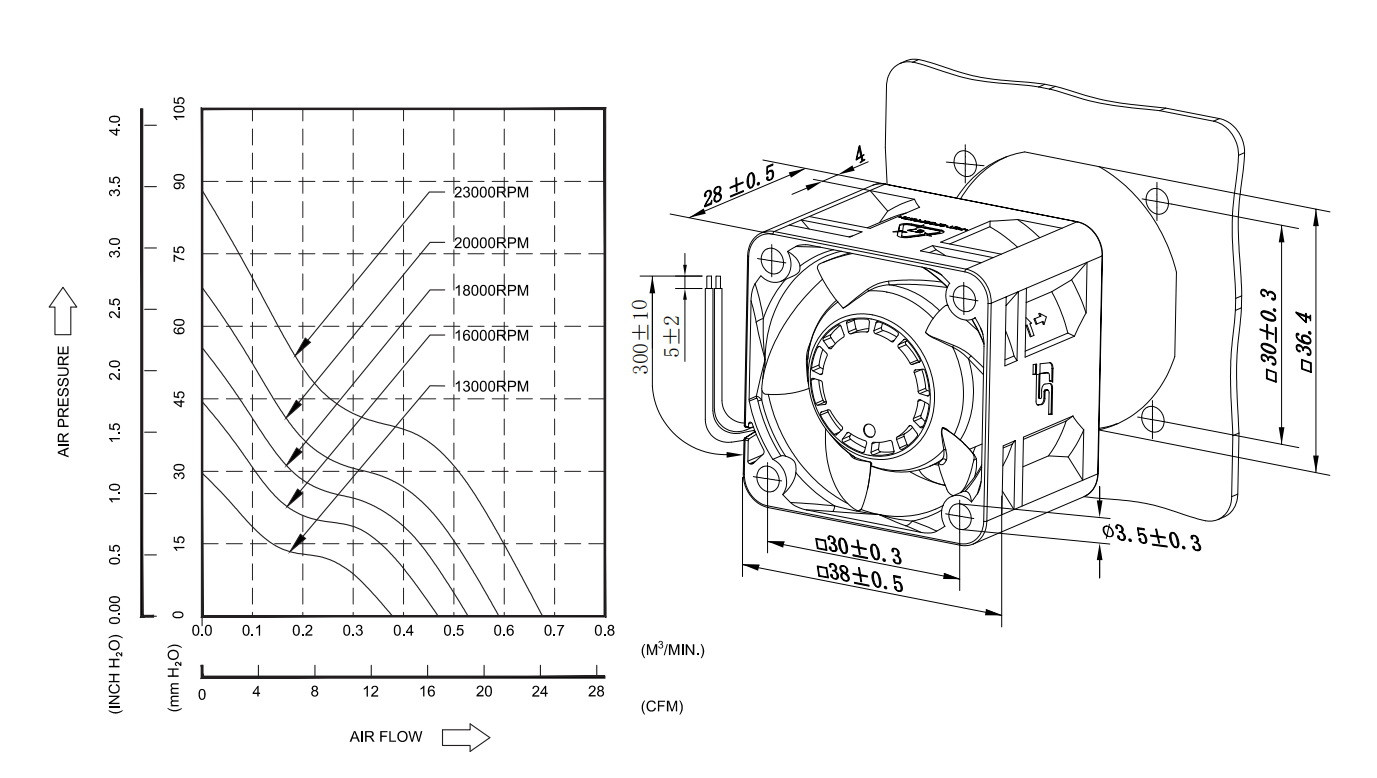

Overall Dimension: 38×38×28mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26 or Equivalent
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 47g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA120328-L | B | 13000 | 12 | 0.25 | 3 | 13.5 | 23 | 29.6 | 1.17 | 50.8 |
SA120328-M | B | 16000 | 12 | 0.35 | 4.2 | 16.8 | 28.4 | 44.4 | 1.75 | 55.1 |
SA120328-H | B | 18000 | 12 | 0.45 | 5.4 | 18.9 | 32.1 | 55.6 | 2.19 | 57.3 |
SA120328-U | B | 20000 | 12 | 0.6 | 7.2 | 21.1 | 35.8 | 68 | 2.68 | 59.8 |
SA120328-S | B | 23000 | 12 | 0.9 | 10.8 | 24.2 | 41 | 88.1 | 3.47 | 62.5 |
