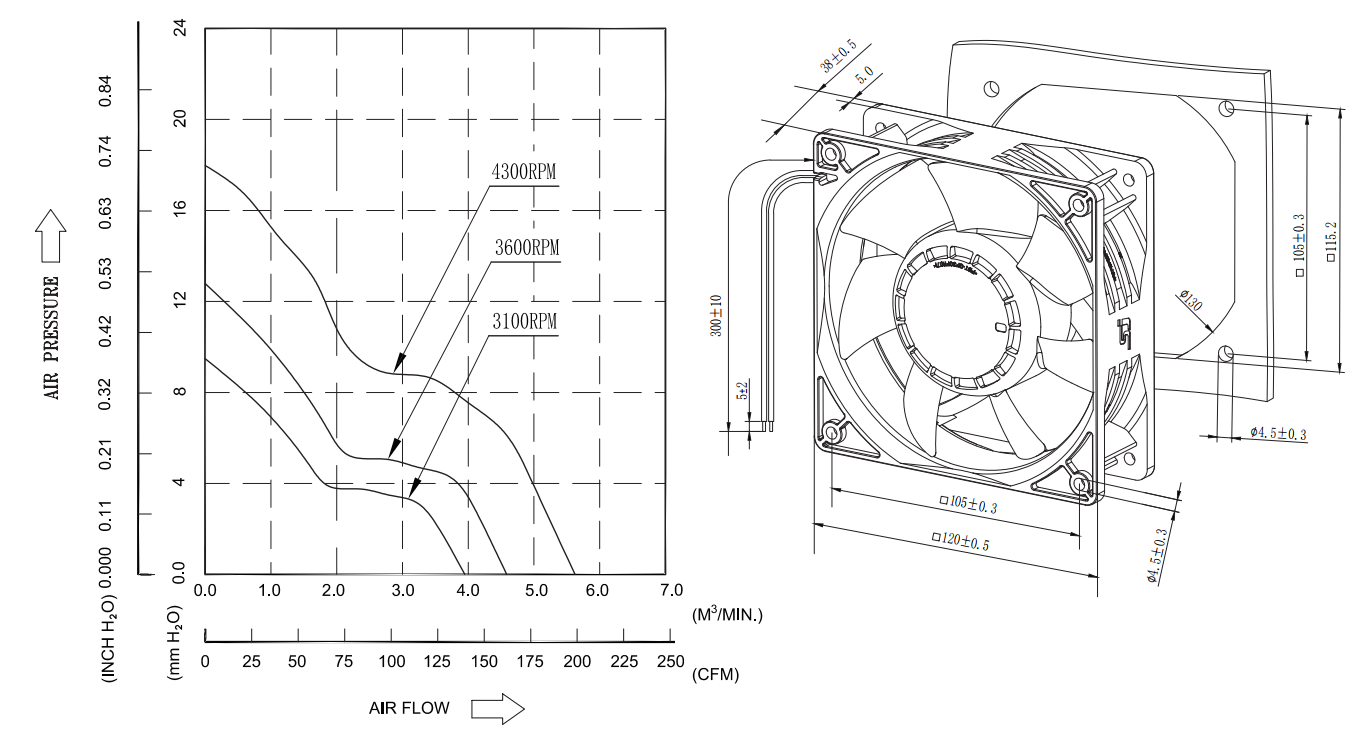

Overall Dimension: 120×120×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 300g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SF121238-E | B | 3100 | 12 | 0.6 | 7.2 | 139.6 | 237 | 9.47 | 0.37 | 50.3 |
SF121238-L | B | 3600 | 12 | 0.9 | 10.8 | 162.1 | 275.3 | 12.8 | 0.5 | 53.5 |
SF121238-H | B | 4300 | 12 | 1.8 | 21.6 | 198.9 | 337.7 | 18 | 0.71 | 59.9 |
SF241238-E | B | 3100 | 24 | 0.3 | 7.2 | 139.6 | 237 | 9.47 | 0.37 | 50.3 |
SF241238-L | B | 3600 | 24 | 0.45 | 10.8 | 162.1 | 275.3 | 12.8 | 0.5 | 53.5 |
SF241238-H | B | 4300 | 24 | 0.9 | 21.6 | 198.9 | 337.7 | 18 | 0.71 | 59.9 |
SF481238-E | B | 3100 | 48 | 0.15 | 7.2 | 139.6 | 237 | 9.47 | 0.37 | 50.3 |
SF481238-L | B | 3600 | 48 | 0.23 | 11 | 162.1 | 275.3 | 12.8 | 0.5 | 53.5 |
SF481238-H | B | 4300 | 48 | 0.45 | 21.6 | 198.9 | 337.7 | 18 | 0.71 | 59.9 |
