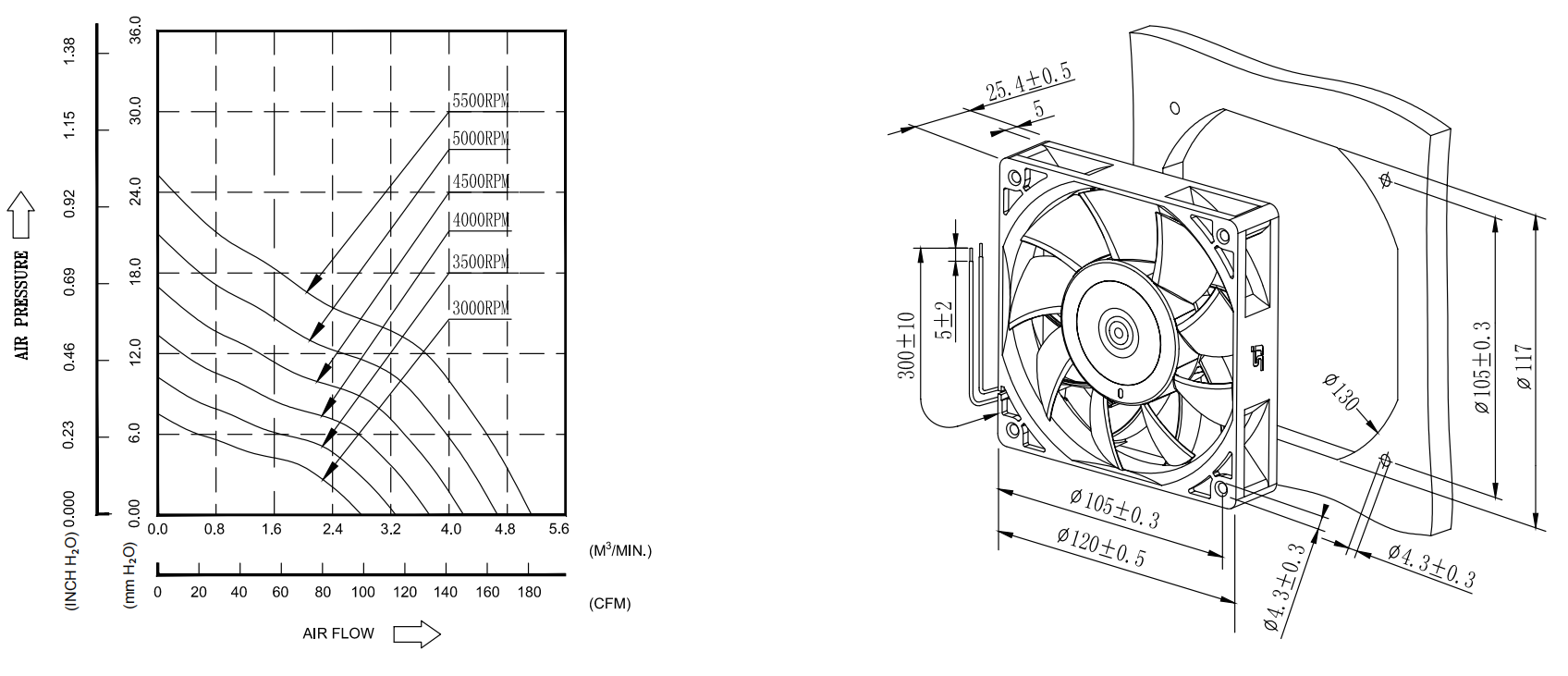

Overall Dimension: 120×120×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 9 Blades
Rotational direction: CCW view from impeller side
Mass: 260g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SE121225-L | B | 3000 | 12 | 0.42 | 5.04 | 99 | 168.1 | 7.54 | 0.3 | 45 |
SE121225-M | B | 3500 | 12 | 0.57 | 6.84 | 115.7 | 196.5 | 10.3 | 0.4 | 49 |
SE121225-H | B | 4000 | 12 | 0.75 | 9 | 132.1 | 224.3 | 13.4 | 0.53 | 53 |
SE121225-U | B | 4500 | 12 | 1.04 | 12.5 | 148.6 | 252.3 | 17 | 0.67 | 55 |
SE121225-S | B | 5000 | 12 | 1.38 | 16.6 | 165.1 | 280.3 | 20.9 | 0.82 | 57 |
SE121225-F | B | 5500 | 12 | 1.7 | 20.4 | 181.6 | 308.4 | 25.4 | 1 | 59 |
SE241225-L | B | 3000 | 24 | 0.28 | 6.72 | 99 | 168.1 | 7.54 | 0.3 | 45 |
SE241225-M | B | 3500 | 24 | 0.38 | 9.12 | 115.7 | 196.5 | 10.3 | 0.4 | 49 |
SE241225-H | B | 4000 | 24 | 0.47 | 11.3 | 132.1 | 224.3 | 13.4 | 0.53 | 53 |
SE241225-U | B | 4500 | 24 | 0.59 | 14.1 | 148.6 | 252.3 | 17 | 0.67 | 55 |
SE241225-S | B | 5000 | 24 | 0.73 | 17.5 | 165.1 | 280.3 | 20.9 | 0.82 | 57 |
SE481225-L | B | 3000 | 48 | 0.17 | 8.16 | 99 | 168.1 | 7.54 | 0.3 | 45 |
SE481225-M | B | 3500 | 48 | 0.22 | 10.6 | 115.7 | 196.5 | 10.3 | 0.4 | 49 |
SE481225-H | B | 4000 | 48 | 0.27 | 13 | 132.1 | 224.3 | 13.4 | 0.53 | 53 |
SE481225-U | B | 4500 | 48 | 0.32 | 15.4 | 148.6 | 252.3 | 17 | 0.67 | 55 |
SE481225-S | B | 5000 | 48 | 0.4 | 19.2 | 165.1 | 280.3 | 20.9 | 0.82 | 57 |
