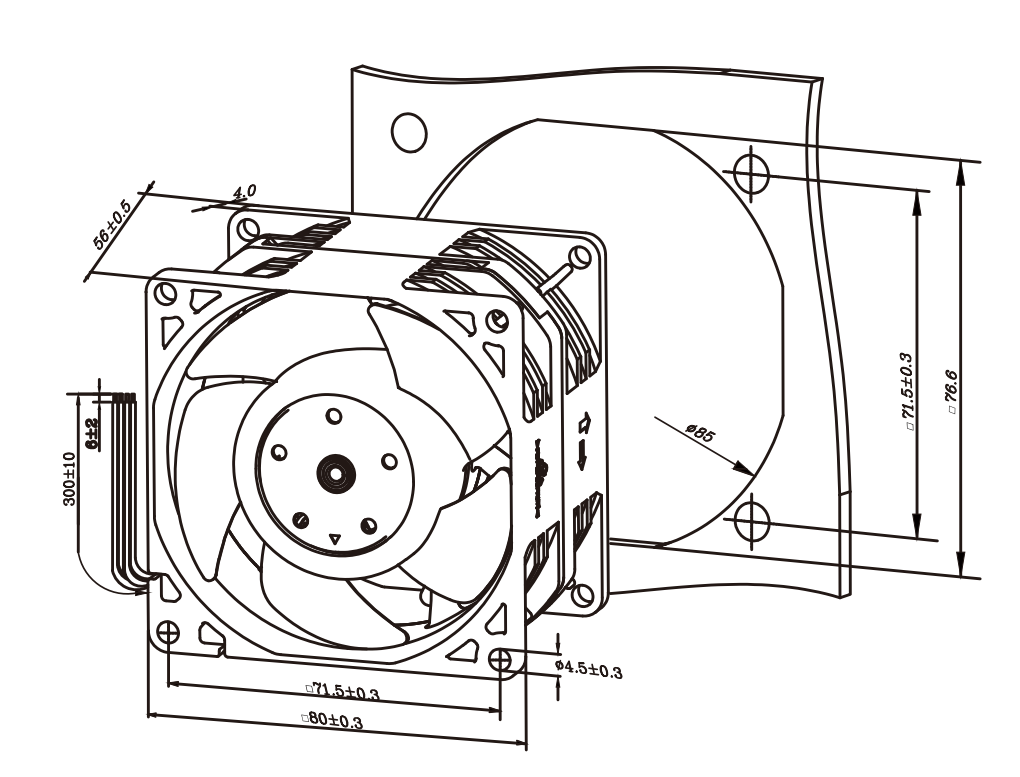

Overall Dimension: 80×80×56mm
Material: Impeller & Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 10368 AWG#24 or Equivalent
Impeller: 5 Blades / 4 Blades
Rotational Direction: Ccw View From Inlet Fan Blade
Mass: 310g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA120856-F | B | 16500/16000 | 12 | 4.6 | 55.2 | 140.7 | 238.9 | 188 | 7.4 | 81 |
