SA8032
Shengjiu Group

SA8032

Product description
  • Overall Dimension: 80×80×32mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)

  • Lead Wires: UL 1007 AWG#24 or Equivalent

  • Impeller: 7 Blades

  • Rotational direction: CCW view from impeller side

  • Mass: 125g

Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SA120832-M

B

4000

12

0.37

4.44

56.4

95.8

8.85

0.35

42.8

SA120832-H

B

5000

12

0.61

7.32

69.7

118.3

13

0.51

48.5

SA120832-U

B

6000

12

0.97

11.6

83.8

142.3

18

0.71

53.3

SA120832-S

B

7000

12

1.4

16.8

97.1

164.9

23.7

0.93

56.4

SA240832-M

B

4000

24

0.15

3.6

56.4

95.8

8.85

0.35

42.8

SA240832-H

B

5000

24

0.25

6

69.7

118.3

13

0.51

48.5

SA240832-U

B

6000

24

0.38

9.12

83.8

142.3

18

0.71

53.3

SA240832-S

B

7000

24

0.59

14.2

97.1

164.9

23.7

0.93

56.4

SA480832-M

B

4000

48

0.1

4.8

56.4

95.8

8.85

0.35

42.8

SA480832-H

B

5000

48

0.14

6.72

69.7

118.3

13

0.51

48.5

SA480832-U

B

6000

48

0.21

10.1

83.8

142.3

18

0.71

53.3

SA480832-S

B

7000

48

0.32

15.4

97.1

164.9

23.7

0.93

56.4

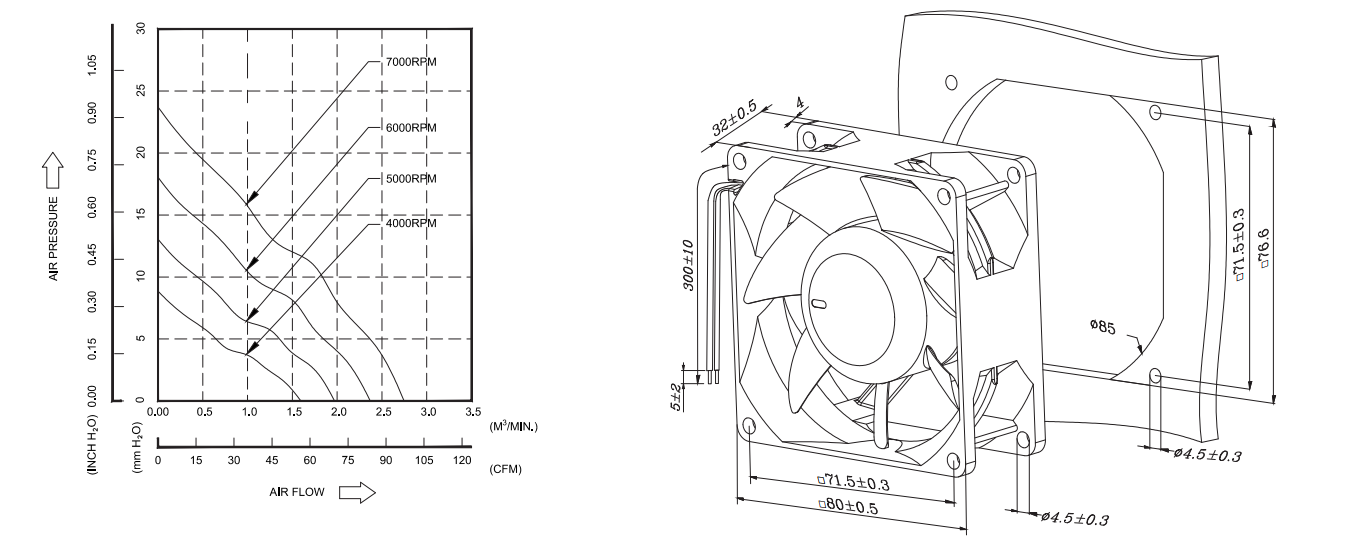

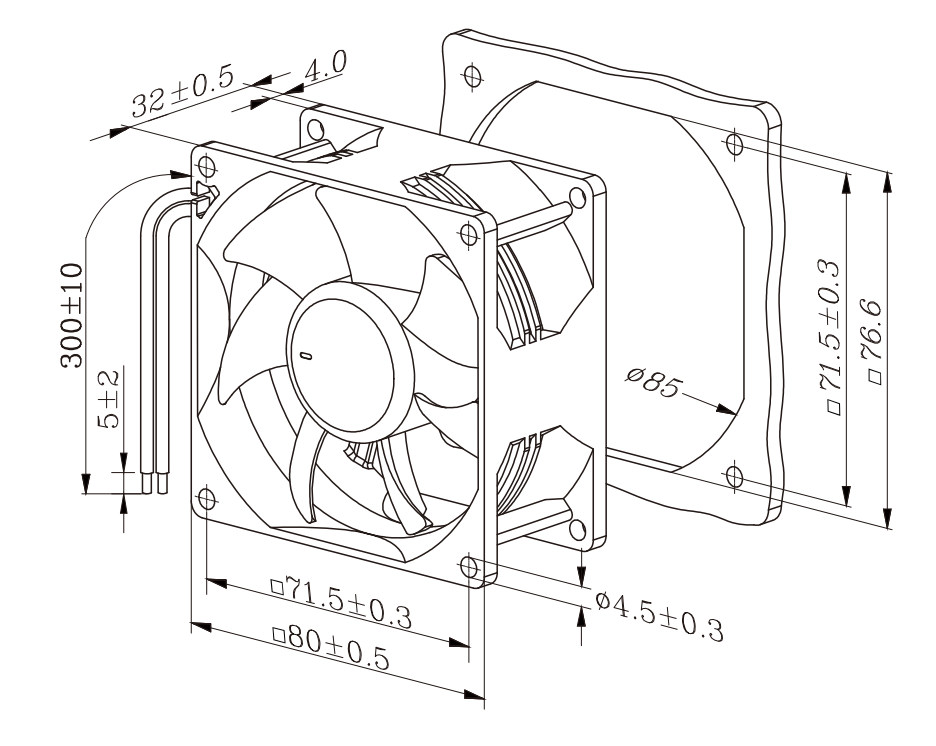

Drawing information
