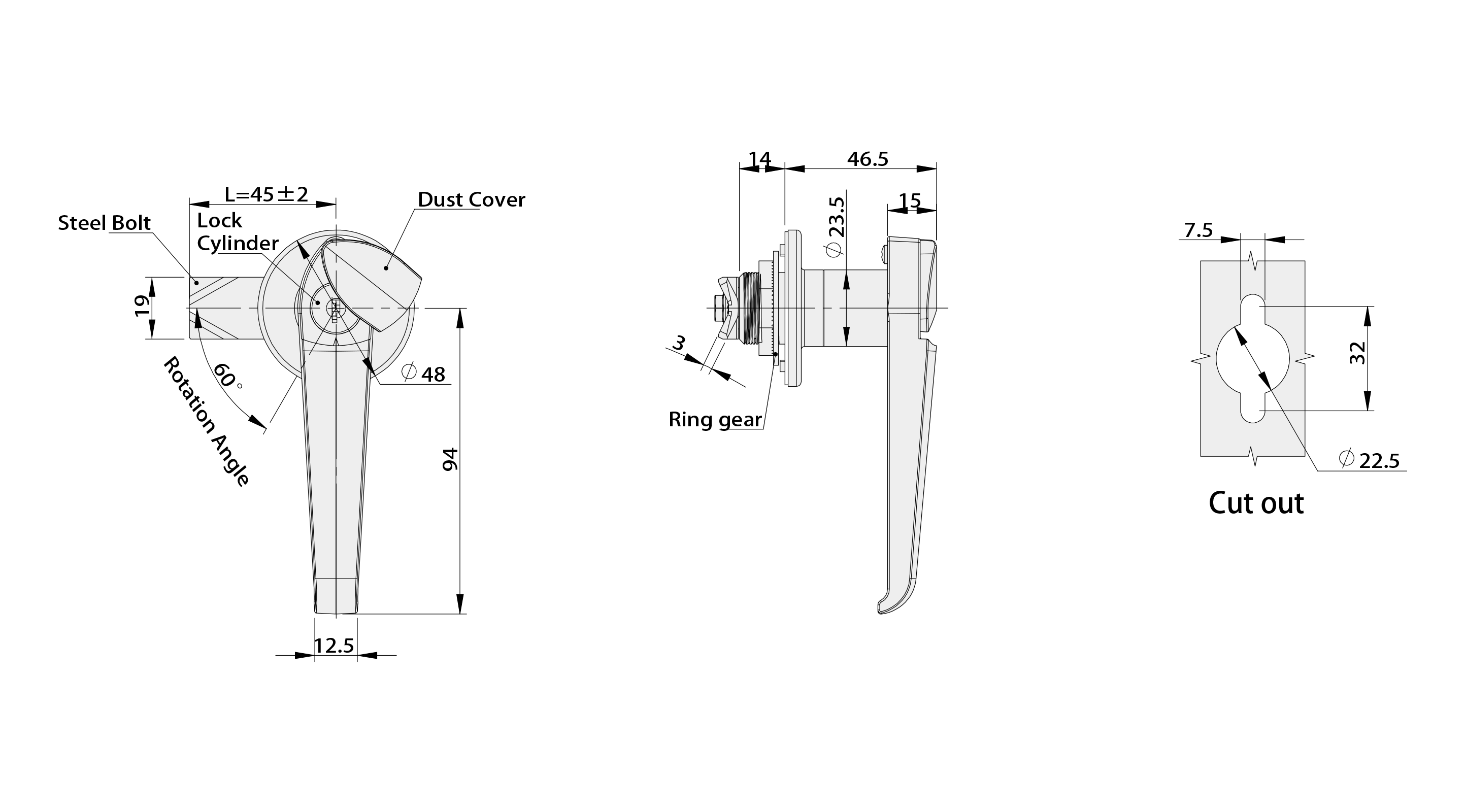

Structure: Handle rotates 60° to open/lock, supports left/right (RL) door opening, IP54 protection, with dust cover.
Material: Zinc alloy (handle, base, lock core), carbon steel (steel bolt, gear ring).
Surface: Bright chrome plating.
Adaptation: Default with K050 key, steel bolt defaults to S1B45Y00002
Performance Parameters
Maximum static load | 140N |
Fixed nut recommended tightening torque | 20N.m |
Maximum input torque | 15N.m |
Overall bright chrome plated (no multi-color options).
