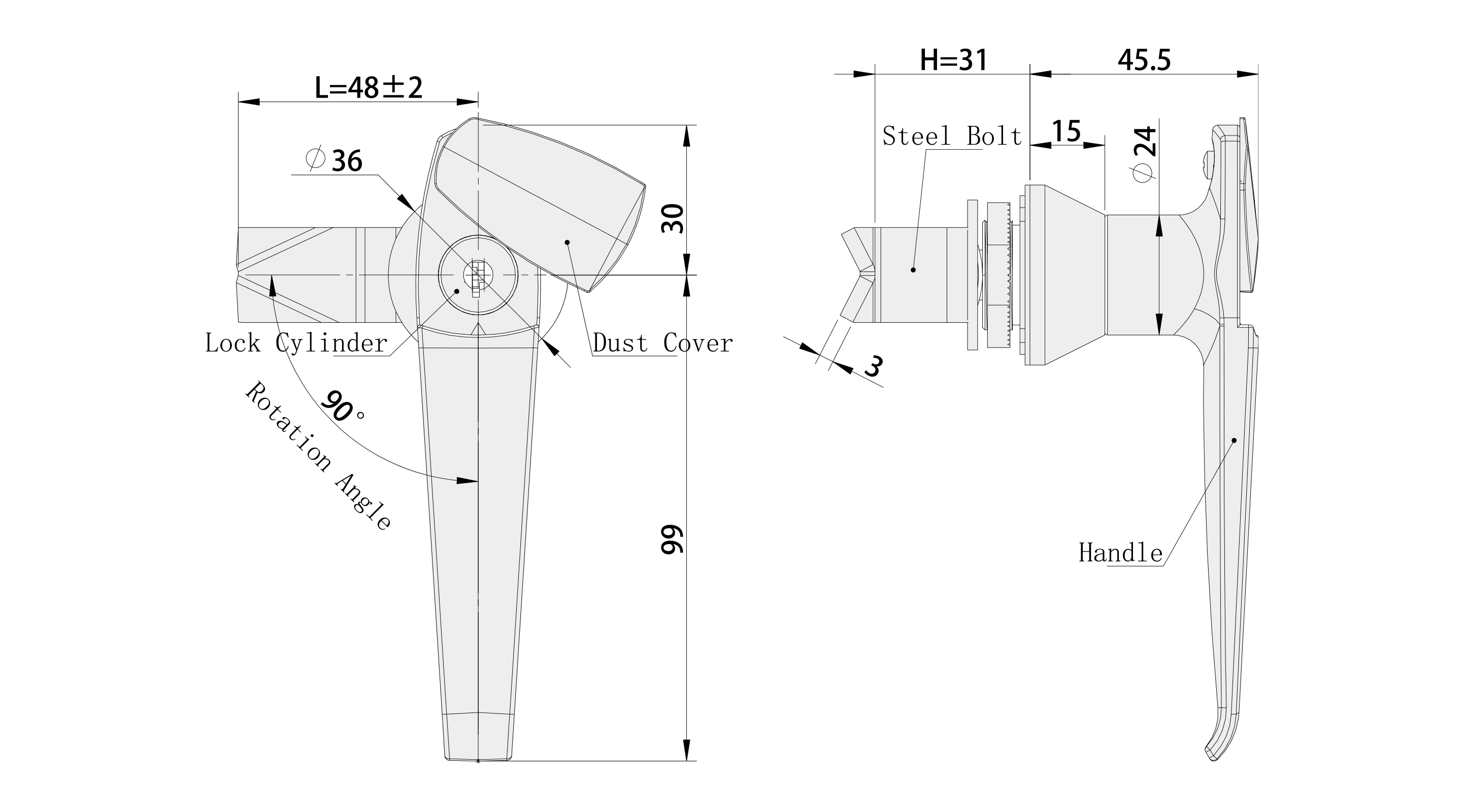

Structure: 90° rotation for opening/locking, supports left/right (RL) door opening, with dust cover, protection IP54.
Material: Zinc alloy (handle, base), carbon steel (steel bolt).
Surface: Handle and base are bright chrome-plated; steel bolt is white zinc-plated.
Adaptation: Default K050 key, steel bolt defaults to S1H48Y19002 (or S1H4819).
Performance Parameters
| Maximum static load | 220N |
| Fixed nut tightening torque | 20N.m |
| Maximum input torque | 15N.m |
Optional Colors
| Handle and base | bright chrome-plated (metal bright surface) |
| Steel bolt | white zinc-plated (no multi-color options) |
