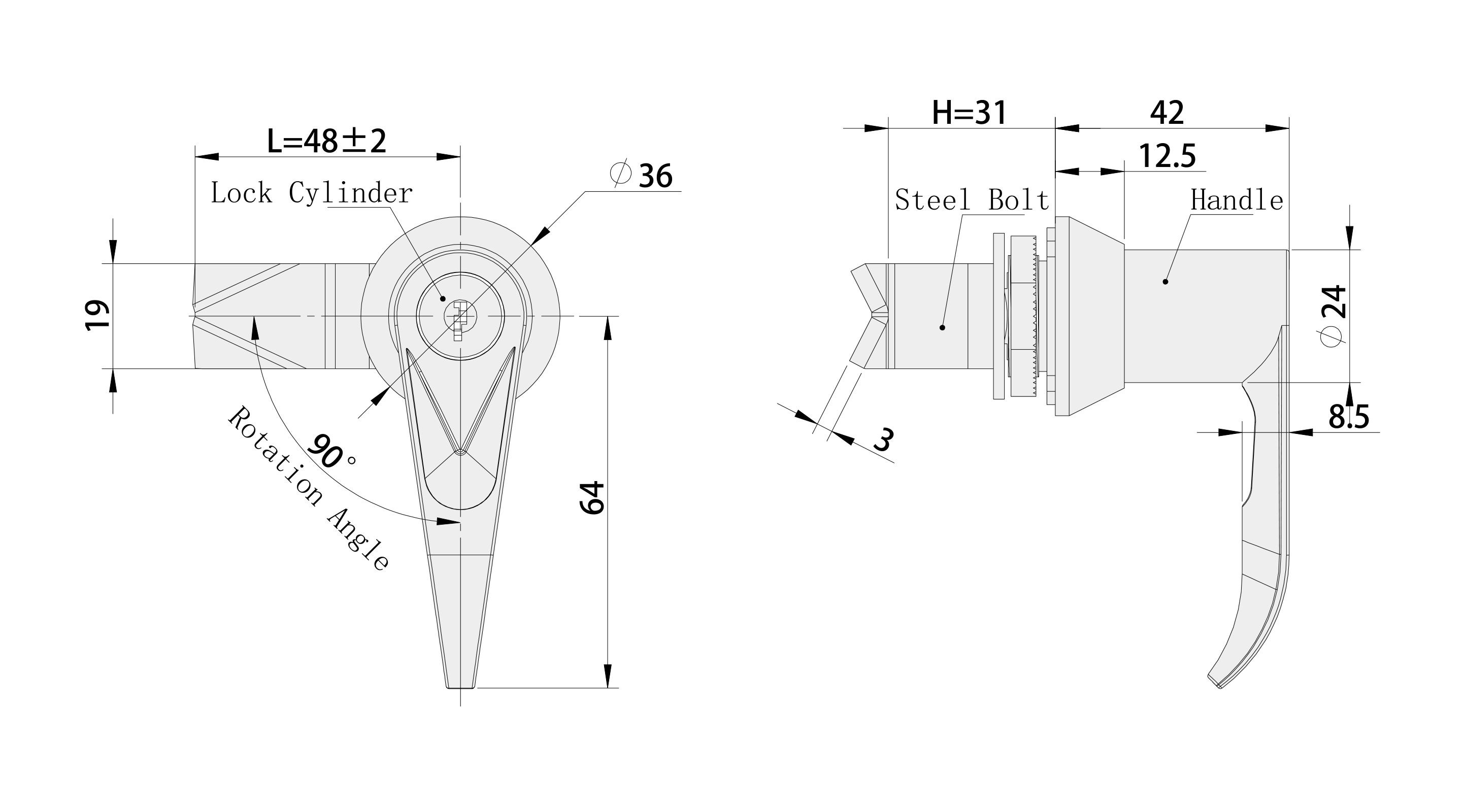

Structure: 90° rotation for opening/locking, supports left/right (RL) door opening; optional with lock core, without lock core, button type.
Material: Zinc alloy (handle/base), carbon steel (steel bolt), including button and lock shaft.
Surface: Handle/base/button/lock shaft bright chrome-plated, steel bolt white zinc-plated.
Adaptation: Default K050 key, steel bolt default S1H48Y19002 (or S1H4819).
Performance Parameters
| Maximum static load | 220N |
| Fixed nut tightening torque | 20N.m |
| Maximum input torque | 15N.m |
Optional Configurations
| With lock core | MS306-1 |
| without lock core | MS306-2 |
| button type | MS306-3 |

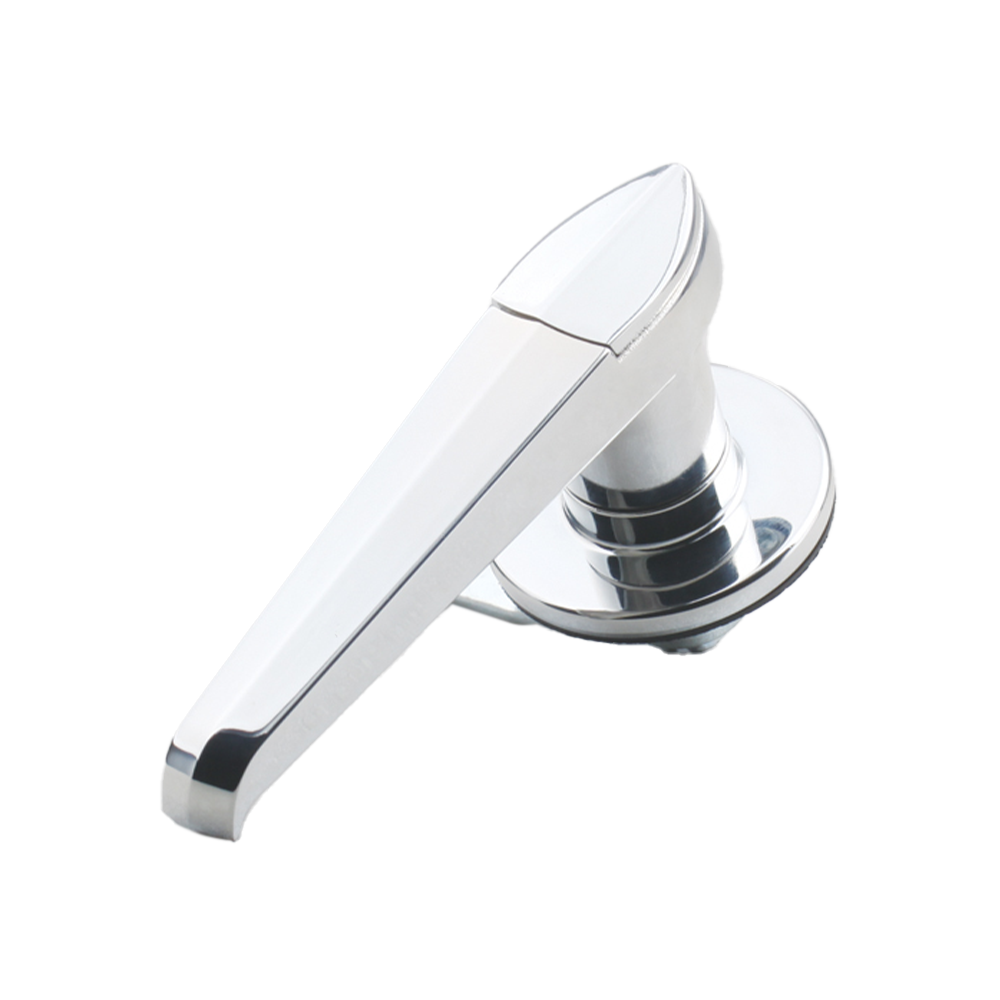

Color: Handle/base/button/lock shaft: bright chrome-plated (metal bright surface); Steel bolt: white zinc-plated (no multi-colors).
