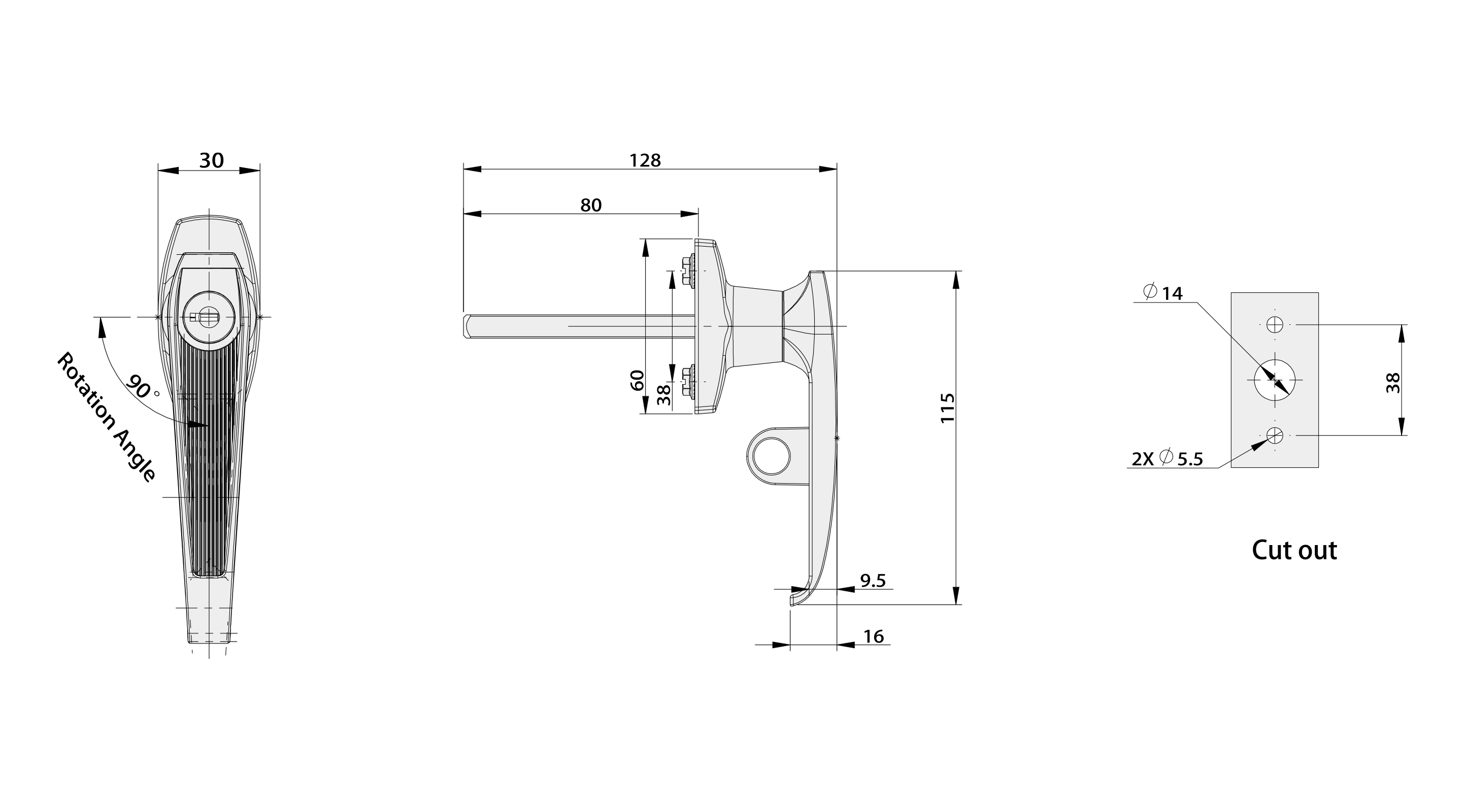

Structure: Handle rotates 90° to open/lock, supports left/right (RL) door opening; optional with lock core, without lock core, without lock core + padlock device (right-opening/left-opening).
Material: Zinc alloy (handle, base, lock core), carbon steel (rotating shaft), stainless steel (lock plate).
Surface: Handle, base, lock core bright chrome-plated; rotating shaft white zinc-plated.
Adaptation: Default with K280 key .
Performance Parameters
Handle bearing tension | 780N |
Fixed nut recommended tightening torque | 5N.m |
Maximum input torque | 15N.m |
Optional Configurations
With lock core | MS315-1 |
without lock core | MS315-2 |
without lock core + padlock device ,right-opening | MS315-2A-Y |
without lock core + padlock device ,left-opening | MS315-2A-Z |
Color: Handle/base/lock core: bright chrome-plated (metal bright surface); Rotating shaft: white zinc-plated (no multi-colors).
