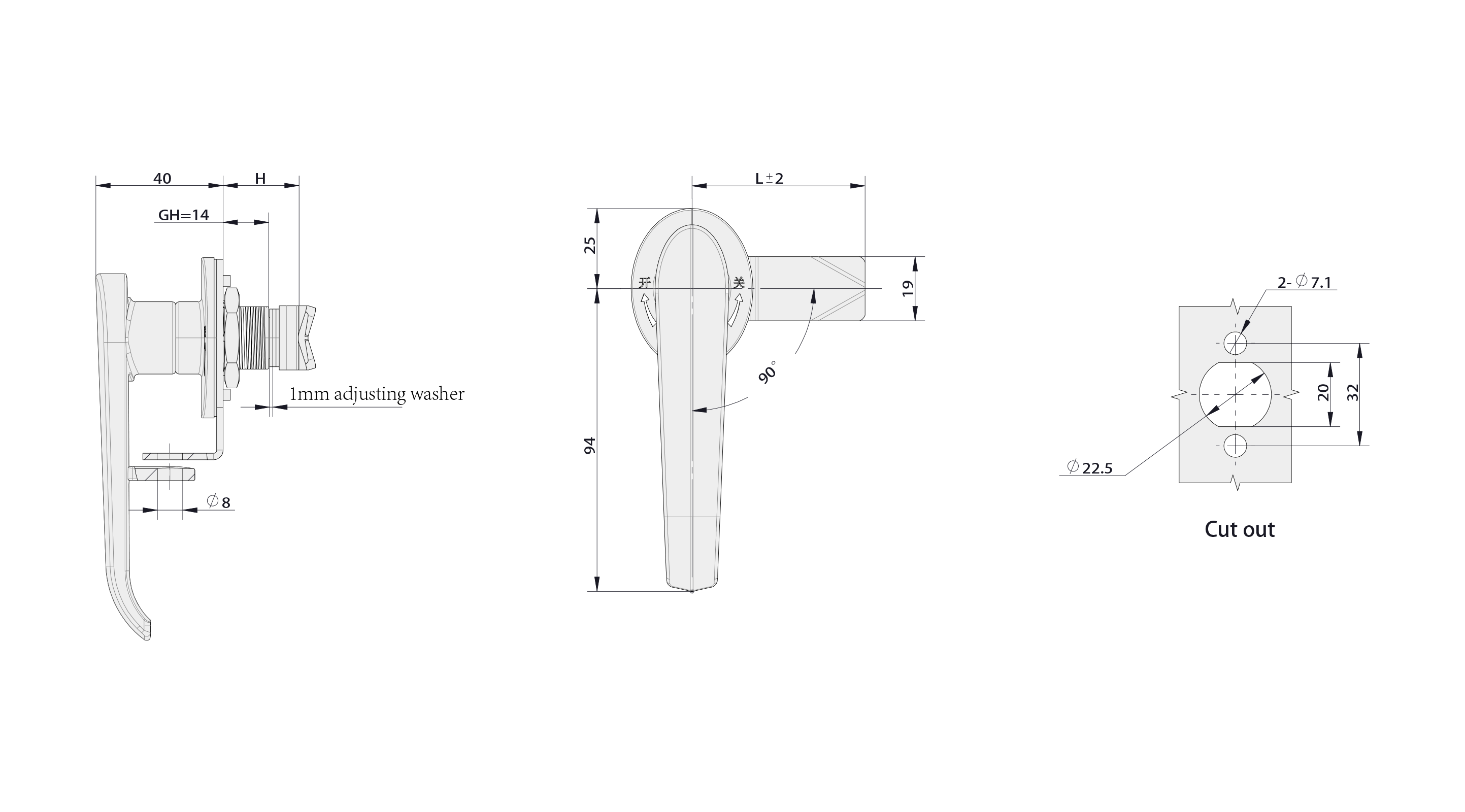

Structure: 90° rotation for opening/locking, left-opening (L), IP65 protection, padlock available, steel bolt optional □8x8.
Material: Zinc alloy (base, handle), carbon steel (padlock seat, steel bolt).
Surface: Base and handle with nano matte finish; padlock seat and steel bolt white zinc-plated.
Adaptation: Steel bolt defaults to S1B54Y06001
Performance Parameters
Maximum static load | 220N |
Fixed nut recommended tightening torque | 20N.m |
Maximum input torque | 15N.m |
Optional Colors
Base & handle: nano matte finish
Padlock seat & steel bolt: white zinc-plated
