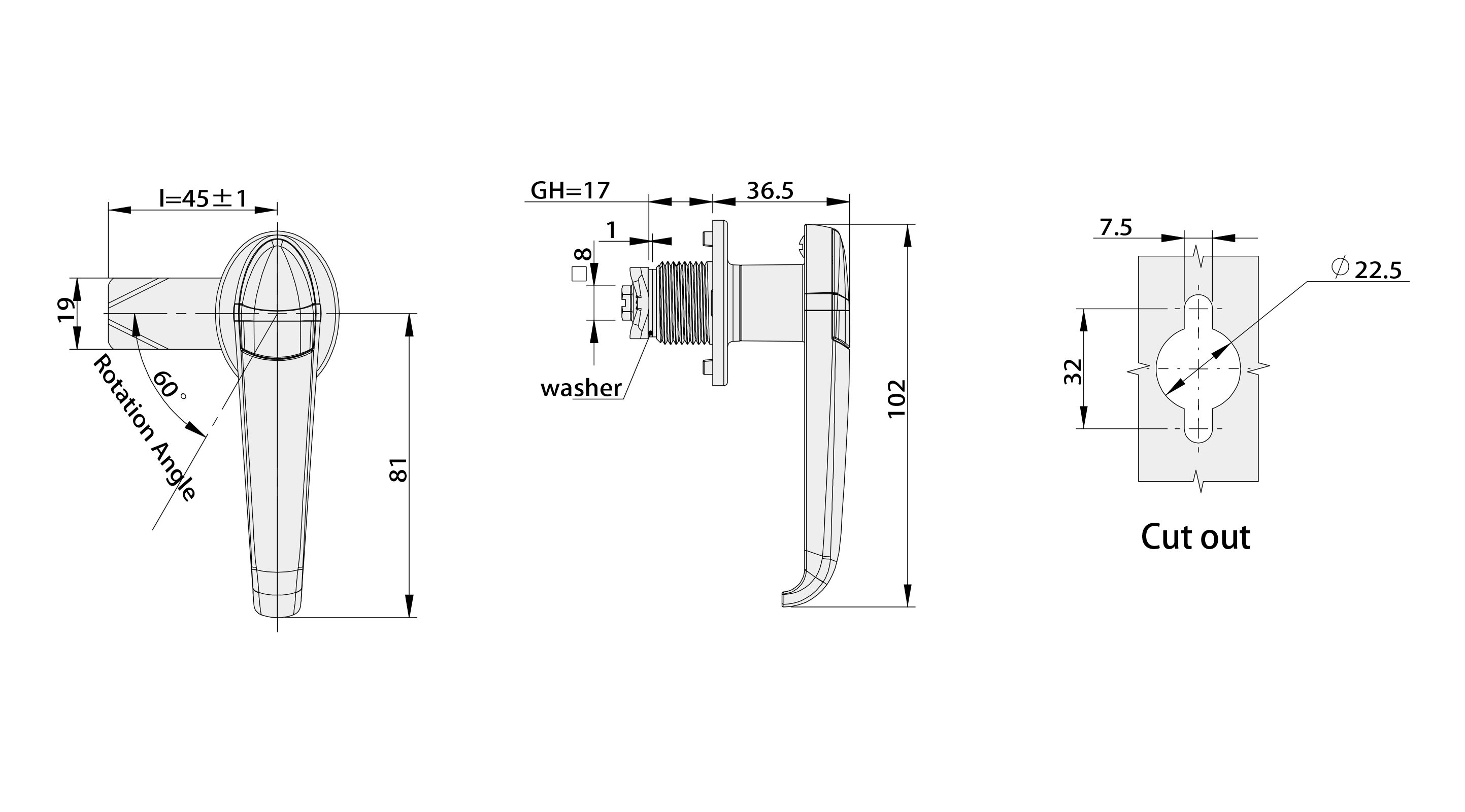

Structure: Handle rotates 60° to open/lock, supports left/right (RL) door opening, IP65 protection, with dust cover.
Material: Zinc alloy (handle, base, dust cover, lock core), carbon steel (steel bolt).
Surface: Bright chrome plating.
Adaptation: Default with K110 key.
Performance Parameters
Maximum static load | 220N |
Fixed nut recommended tightening torque | 20N.m |
Maximum input torque | 15N.m |
Optional Colors
Overall bright chrome plated
