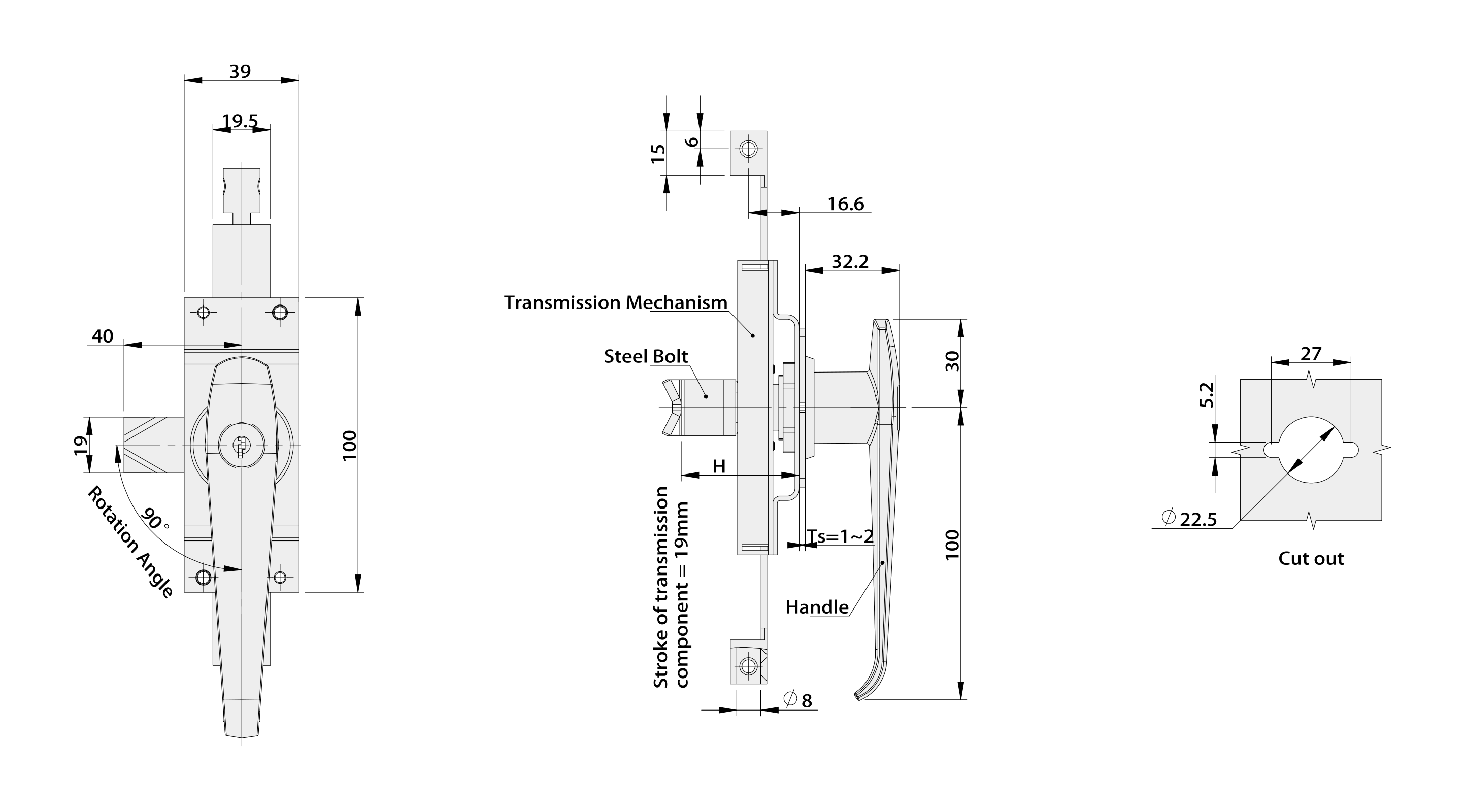

Structure: Handle rotates 90° to drive transmission body and steel bolt for three-point linkage; supports left/right (RL) door opening; plastic sleeve and connecting rod fixing sleeve are optional.
Material: Zinc alloy (handle, base), carbon steel (steel bolt, transmission mechanism).
Surface: Handle and base are bright chrome-plated; steel bolt is white zinc-plated.
Adaptation: Default K050 key; steel bolt defaults to S1C42Y24001.
Performance Parameters
Fixed nut tightening torque | 20N.m |
Maximum input torque | 15N.m |
Optional Configurations
Accessories | Plastic sleeve |
connecting rod fixing sleeve | |
Color | Handle & base: bright chrome-plated (metal bright surface) |
Steel bolt: white zinc-plated |
