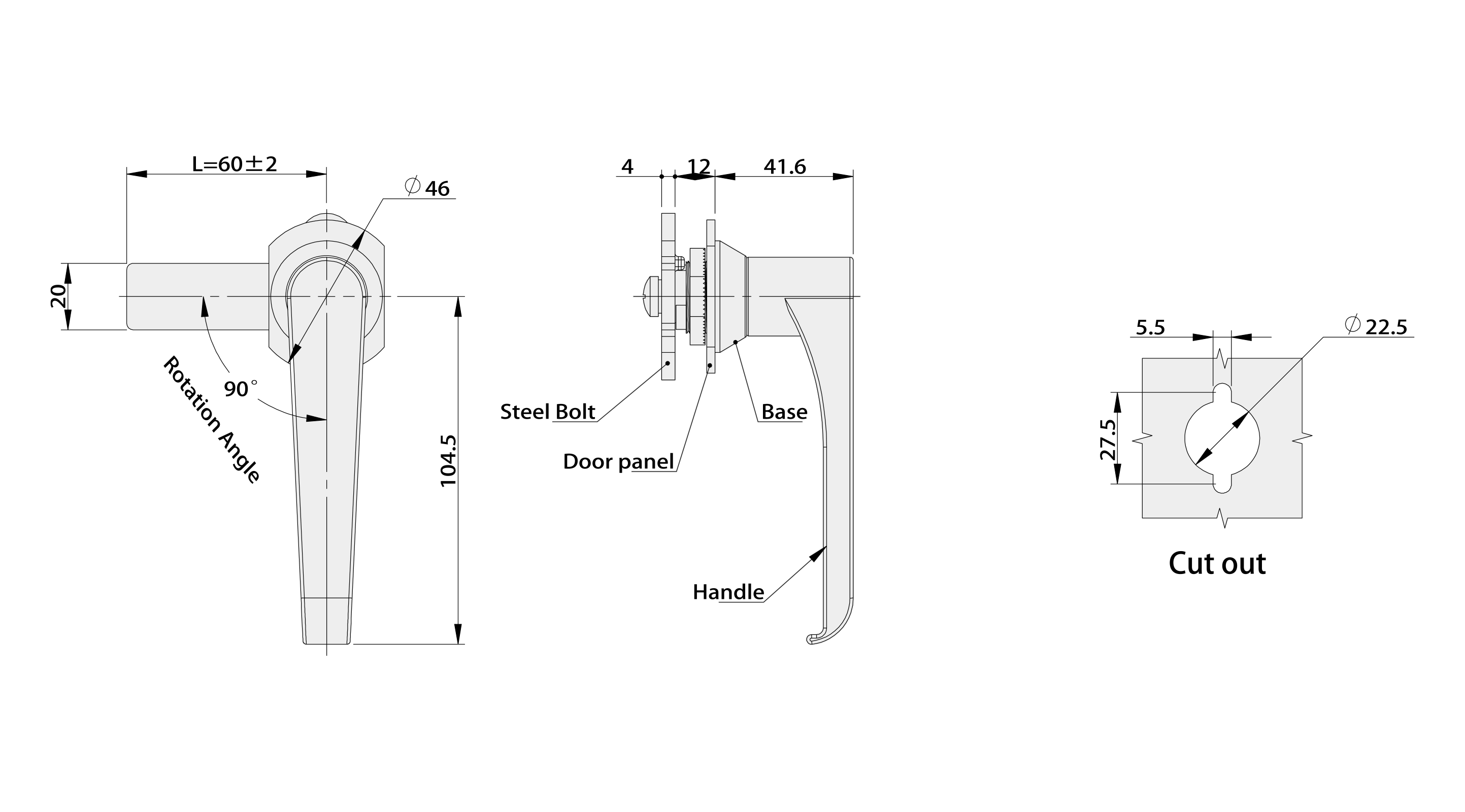

Structure: Rotates 90° to open/lock, supports left/right (RL) door opening, IP54 protection, keyless (hole size same as MS308).
Material: Zinc alloy (handle, base), carbon steel (steel bolt).
Surface: Handle and base bright chrome-plated; steel bolt white zinc-plated.
Performance Parameters
| Maximum static load | 220N |
| Fixed nut tightening torque | 20N.m |
| Maximum input torque | 15N.m |
Optional Colors
| Handle & base | bright chrome (metal bright surface) |
| Steel bolt | white zinc-plated (no multi-colors) |
