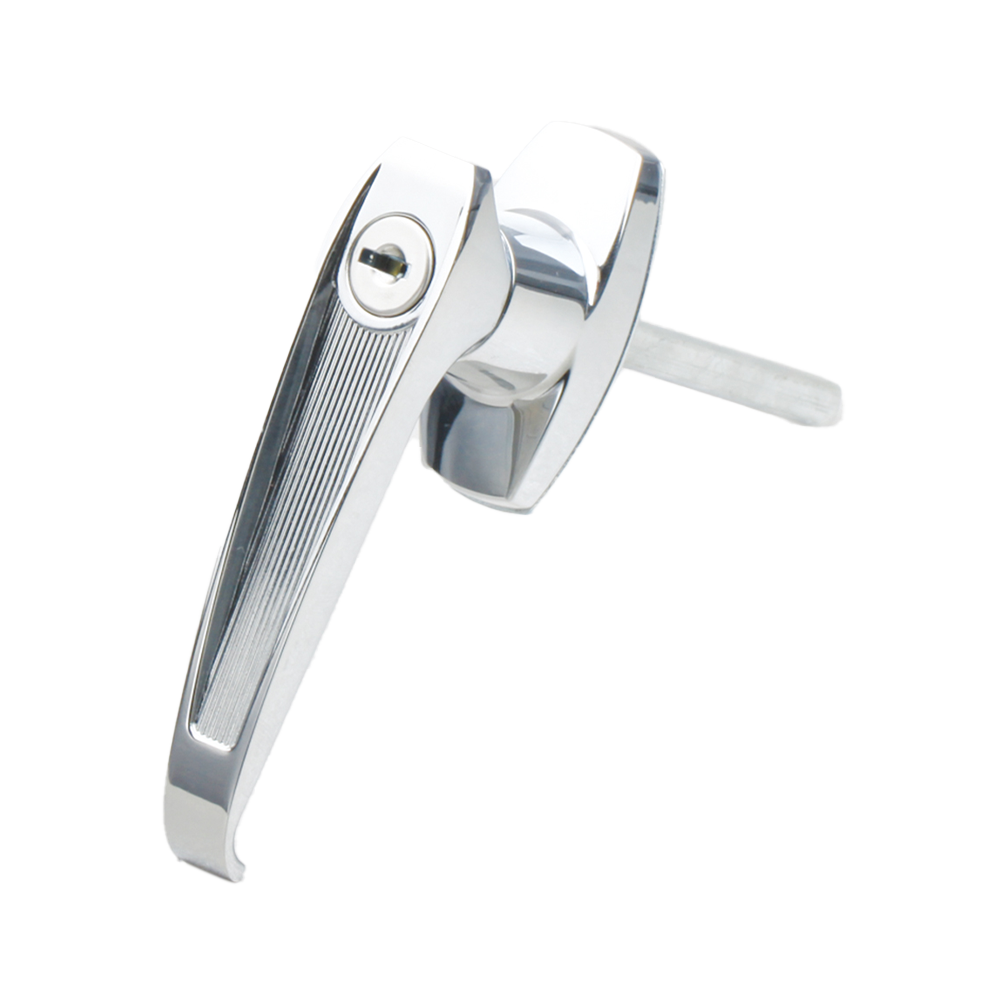

Structure: Handle rotates 90° to open/lock; optional with lock core, without lock core, button type, padlock type.
Material: Zinc alloy (base/handle), carbon steel (steel bolt), ABS (cover), with rotating shaft & button.
Surface: Base/handle chrome-plated, steel bolt/rotating shaft white zinc-plated, button rotating shaft treated.
Adaptation: Default K050 key; steel bolt default S1H48Y19002
Performance Parameters
Maximum static load | 220N |
Fixed nut tightening torque | 20N.m |
Maximum input torque | 15N.m |

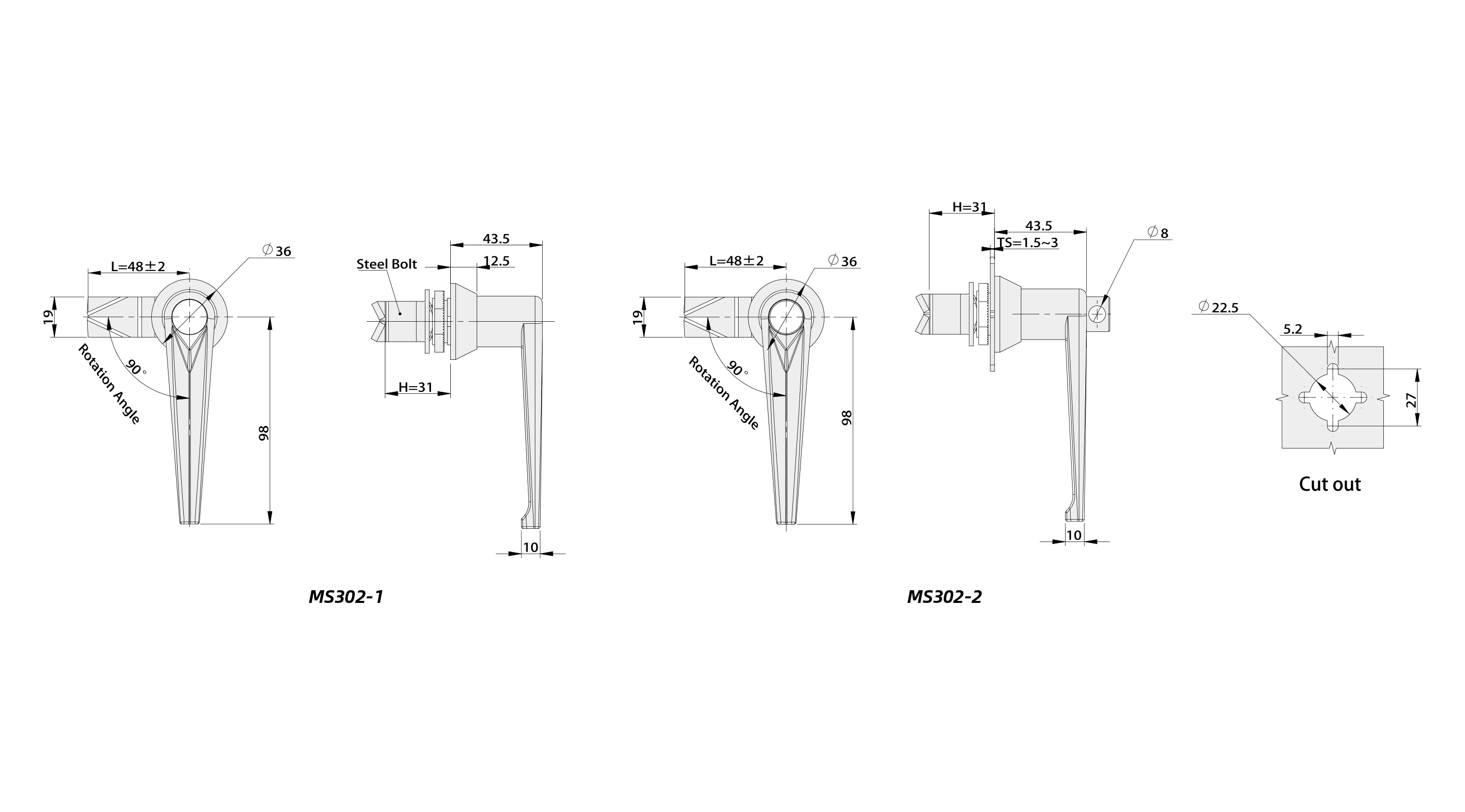

Models
Button type | MS302-1 |
Padlock type | MS302-2 |
