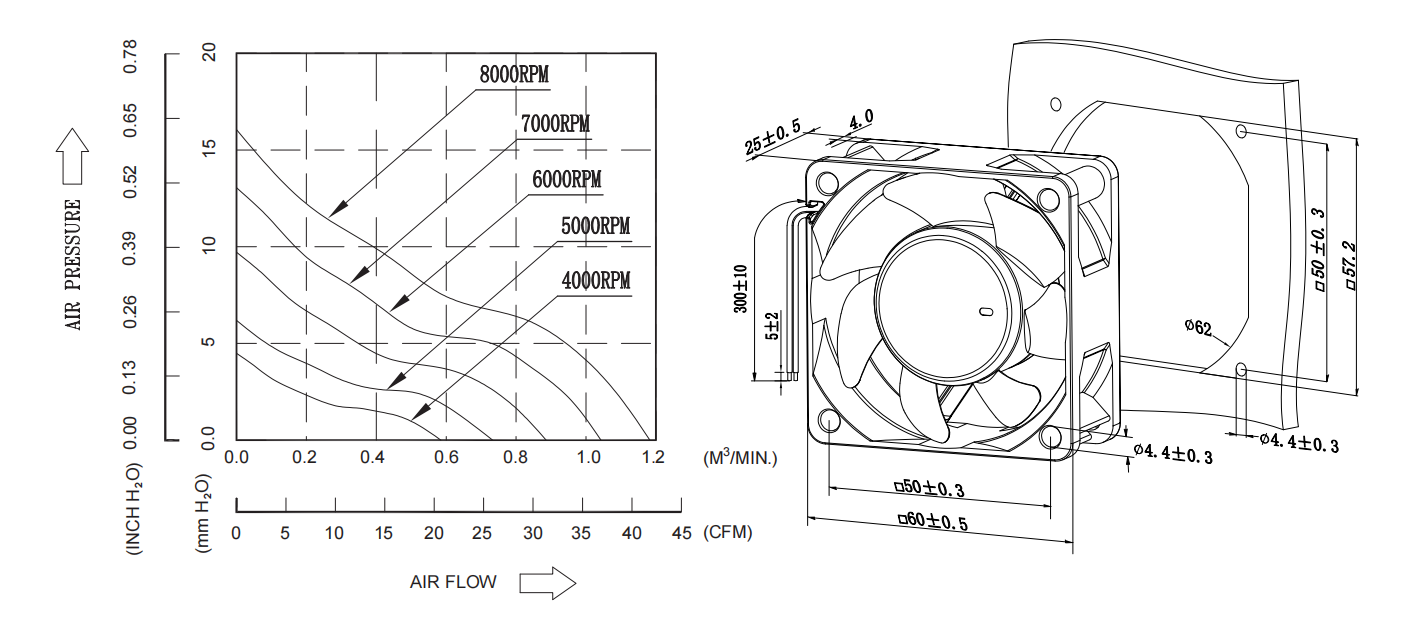

Overall Dimension: 60×60×25mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 60g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SG120625-E | B | 4000 | 12 | 0.11 | 1.32 | 20.7 | 35.1 | 4.48 | 0.18 | 25.6 |
SG120625-L | B | 5000 | 12 | 0.17 | 2.04 | 25.9 | 44 | 6.18 | 0.24 | 33.9 |
SG120625-M | B | 6000 | 12 | 0.25 | 3 | 31.3 | 53.2 | 9.7 | 0.38 | 39.6 |
SG120625-H | B | 7000 | 12 | 0.36 | 4.32 | 36.9 | 62.6 | 13 | 0.51 | 44 |
SG240625-E | B | 4000 | 24 | 0.07 | 1.68 | 20.7 | 35.1 | 4.48 | 0.18 | 25.6 |
SG240625-L | B | 5000 | 24 | 0.09 | 2.16 | 25.9 | 44 | 6.18 | 0.24 | 33.9 |
SG240625-M | B | 6000 | 24 | 0.12 | 2.88 | 31.3 | 53.2 | 9.7 | 0.38 | 39.6 |
SG240625-H | B | 7000 | 24 | 0.17 | 4.08 | 36.9 | 62.6 | 13 | 0.51 | 44 |
SG240625-U | B | 8000 | 24 | 0.19 | 4.56 | 41.8 | 71 | 16 | 0.63 | 46.8 |
