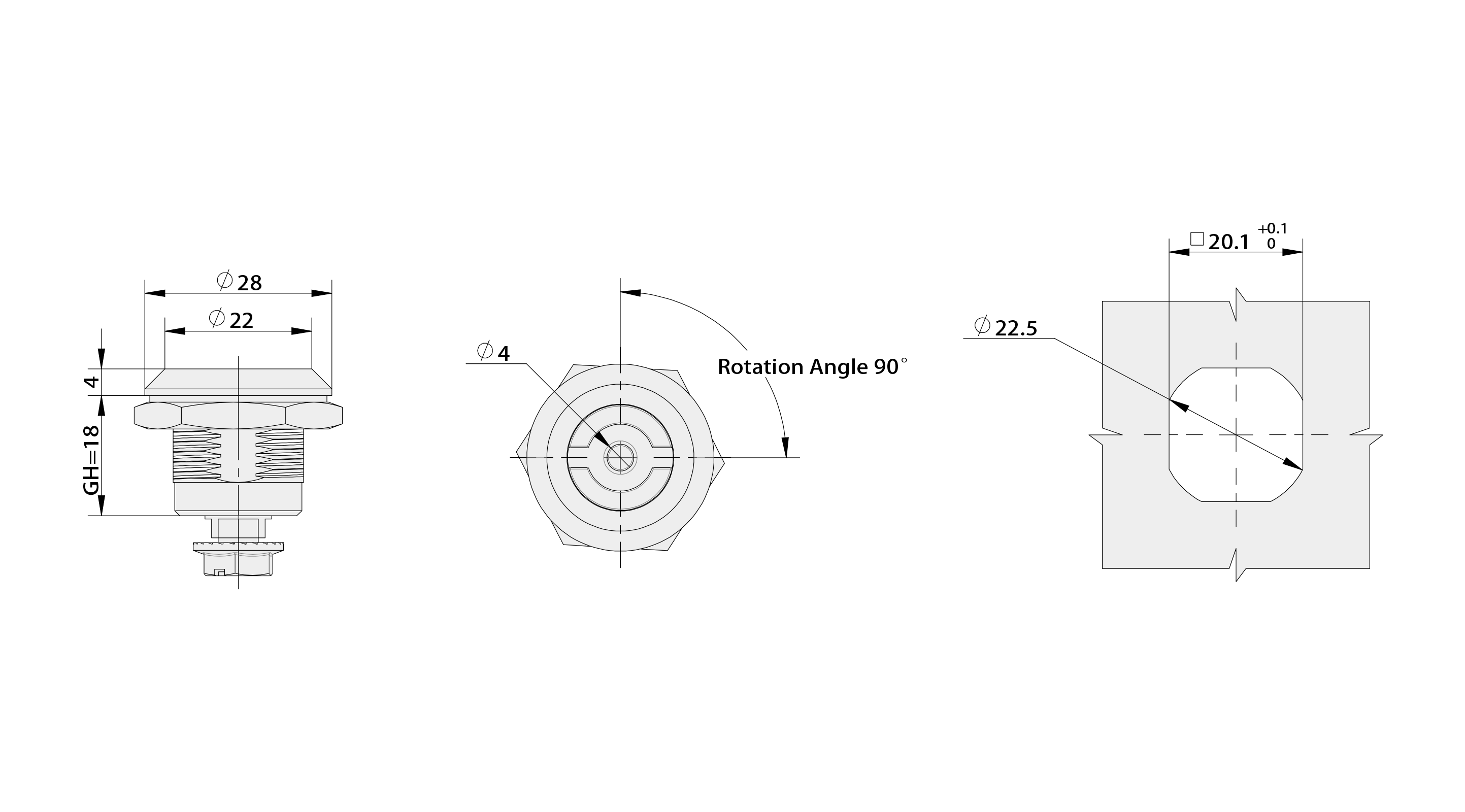

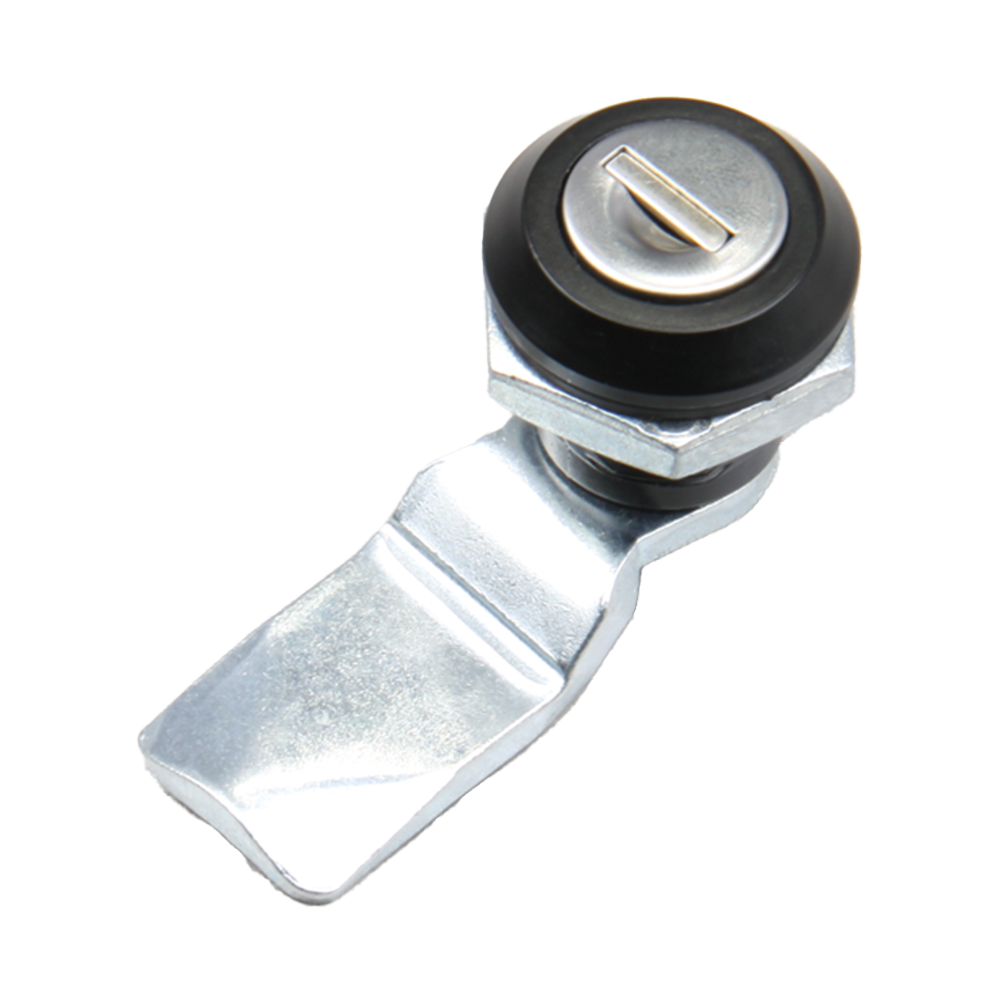

Structure: Lock core rotates 90° to open/lock, IP54 protection, with hook - type steel bolt (360° rotation, suitable for sliding cabinet doors), supports left/right (RL) installation.
Material: Steel bolt optional: iron with white zinc plating (S1B45Y07002), stainless steel (S1B45Y07022).
Surface: Bright metal color, black, etc. (based on diagram styles).
Performance Parameters
Maximum input torque | 9N.m |
Recommended tightening torque for fixing nut | 20N.m |
Remark: The MS705 series can be fully customized in all specifications, and the H value can be customized according to customer requirements.
