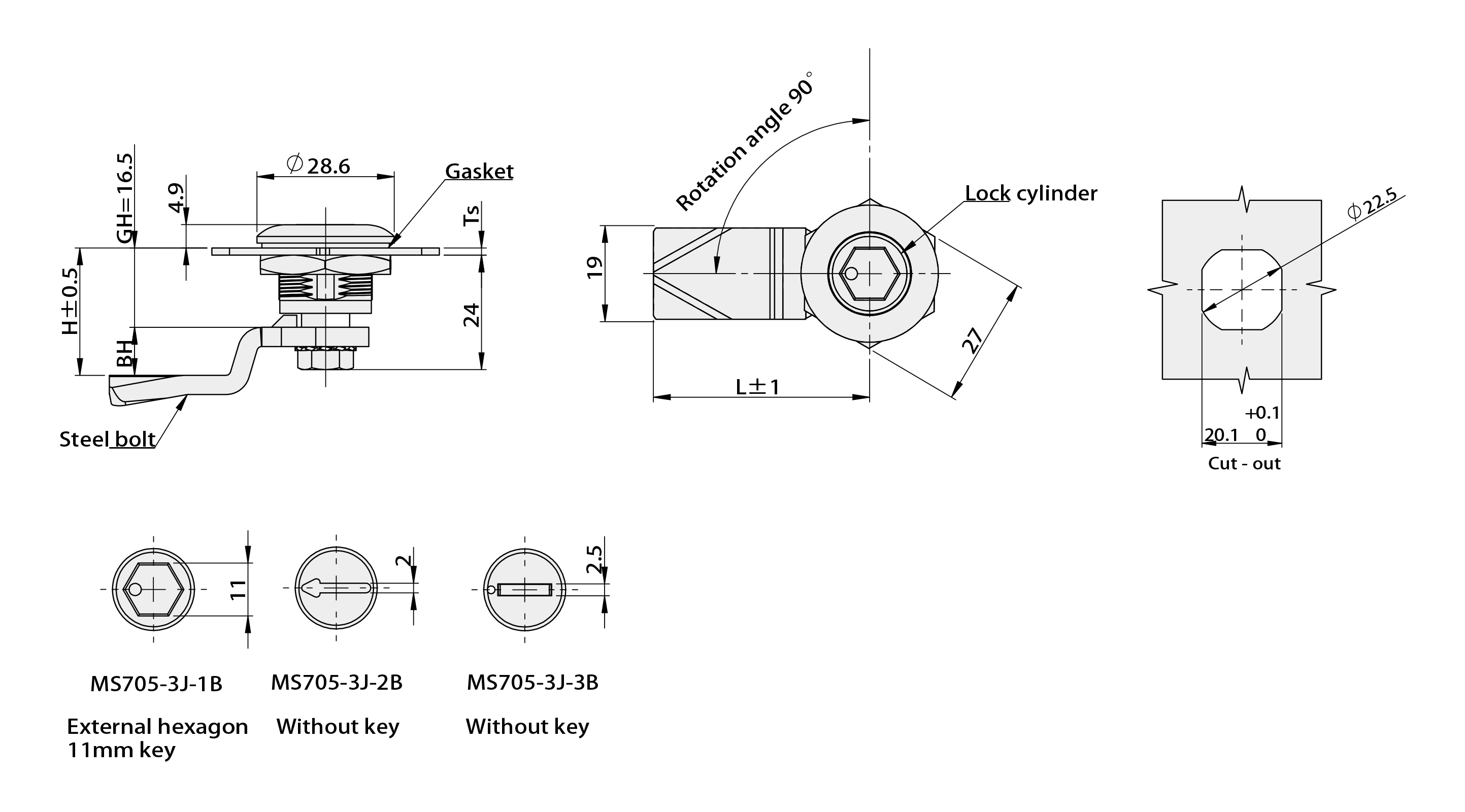

Structure: Lock core rotates 90° to open/lock, IP55 protection; three lock core adaptations (with 11mm external hex key, keyless); steel bolt defaults to S1B4507 (□8x8 steel bolt optional).
Material: Stainless steel (base, lock core, nut, screw), carbon steel (steel bolt).
Surface: Stainless steel original color.
Performance Parameters
| Maximum static load | 270N |
| Maximum input torque | 9N.m |
| Fixed nut recommended tightening torque | 20N.m |
| Colors | Stainless steel original color |
